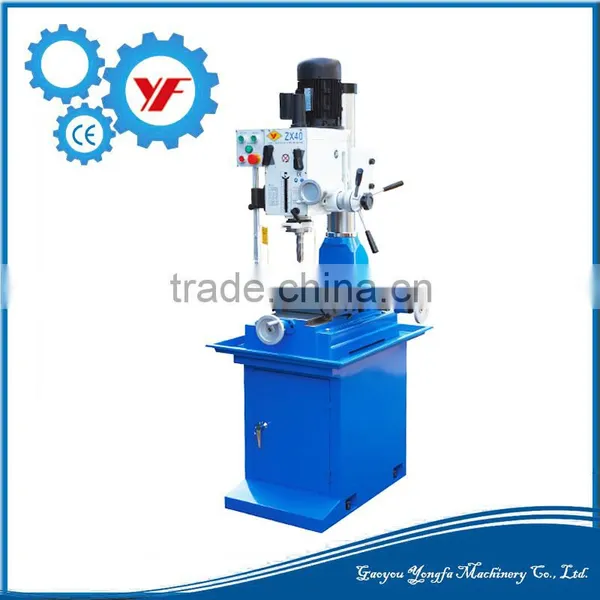

Manufacturing Machine ZX40 Vertical Milling Machine

Manufacturing Machine ZX40 Vertical Milling Machine thumbnail-1
Manufacturing Machine ZX40 Vertical Milling Machine photo-1
Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Yong Fa
Contact Supplier Request Quote Chat Now
Gaoyou Yongfa Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name Yong Fa
Model Number ZX40
Type Vertical
CNC or Not Normal
Voltage Customer Requirement
Power(W) 1.5kw
Dimension(L*W*H) 820x760x1150mm
Weight 315kgs
Certification ISO9001:2008
Warranty 1 Year
After-sales Service Provided No overseas service provided
Product Description

The mill/drill is used to shape metal workpieces by removing material with the use of a rotating cutting tool.

In milling operations, the location of the cutting tool is stationary while the workpiece is fed into the cutter by moving the table.

In drilling operations, the workpiece is held stationary on the table while the cutting tool is fed vertically into the workpiece with the movement of the spindle and head.

This machine is driven by gear.

Technical Parameter
Model
ZX40
Max.drilling capacity(Iron/Steel)
40/32 mm
Max.milling capacity(Face milling)
76 mm
Max.milling capacity(End milling)
32 mm
Work table size
730x210 mm
Cross/longitudinal travel work table
210mm/500mm
Spindle taper
MT3 or R8
Spindle travel
120 mm
Spindle speed
75，170，280，540，960，1600 rpm
Max. distance spindle to table
450 mm
Head tilt left/right
±90°
Power and speed of motor
1.5 kw 1450 rpm
NW/GW
285/315 kgs
Packing size
820x760x1150  mm
Feature

Milling, drilling, tapping, boring, reaming

Head swivels or tilts

Spindle micro feed(Auto-feed option)

Heavy-duty tapered roller bearing spindle

Spindle can be locked

Adjustable  gibs on table

Adjustable stops on table

Gear drive headstock

Accurate position, good rigidity, big cutting power

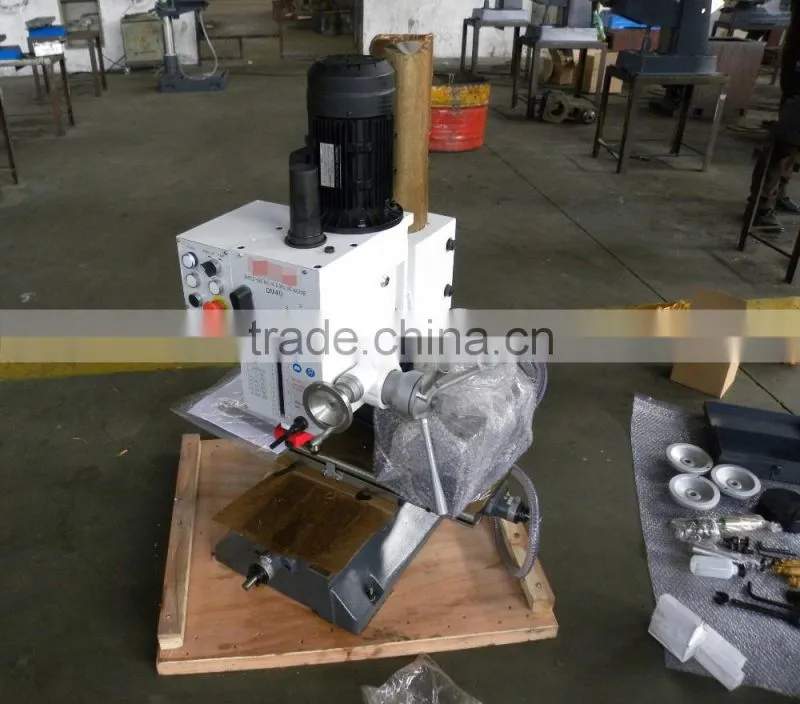

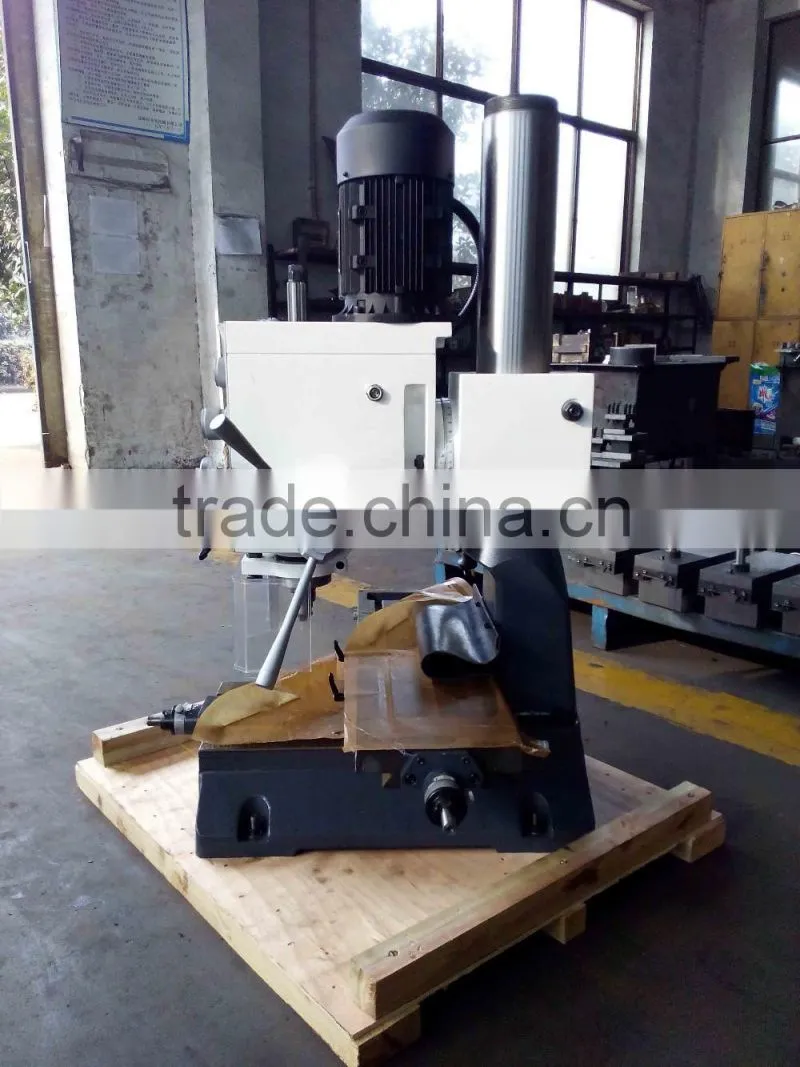

Product Photo
Company Profile
Gaoyou Yongfa Machinery Co., Ltd. is located in the ancient town of Gaoyou City Industrial Park, the plant is favorable geographical position. The company covers an area of over 30,000 square meters, construction area of over 20,000 square meters. More than 380 employees, including more than 50 senior engineers and technicians, with turning, milling, grinding and other metal cutting machinery, testing and other equipment more than 250 sets, and supporting a heat treatment equipment. The main products are bench lathe, milling machine series, machine parts and accessories, power tools and related parts. Products are exported to Europe and America over 50 countries and regions, favored by the users.
Certifications
Workshop & Equipment
Contact Us

Together, we make it better

Mr. Elvis
Tel: +86 0514 8454 0912
Fax: +86 0514 8454 0988
Mob: +86 15751633657
QQ:2848376160
Web: https://img13.fr-trading.com

Add: Industrial Park, Gaoyou Town, Gaoyou City, Jiangsu, P.R.China
