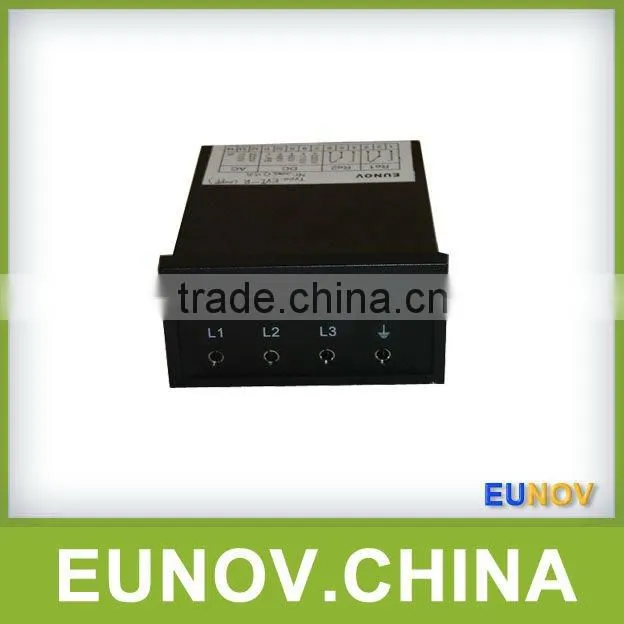

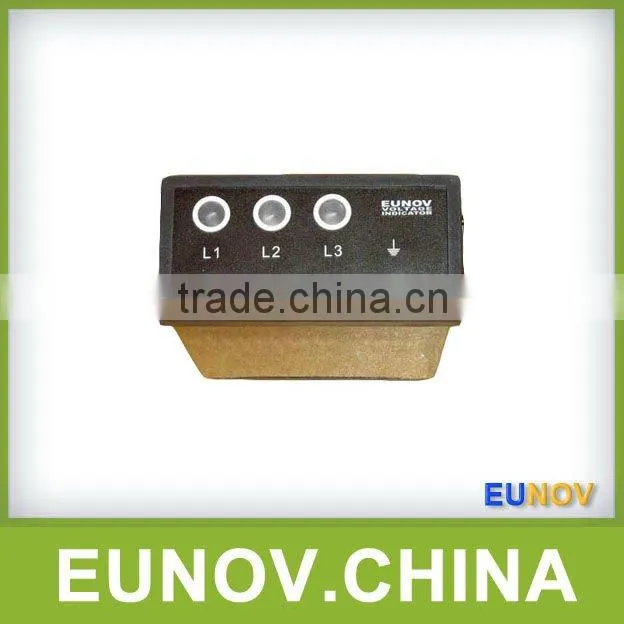

1.Picitures of Indicator
Characteristics
1 Multi-functions and universal application.
2 Three phases controlled separately.
3 High reliance with LED display.
4 Complete safety protection with built in voltage limiting device.
5 Allow to check the operating switchgear with the function tester.
6 Screened coaxial cables as connecting leads.
7 Easy installation with standard housing 96x48mm.
Technical parameters
1.Nominal frequency: 50, 69Hz
2.For indoor electric divices with rated voltage:> 1 kV
3.Signal situations:
Threshold voltage: 4-5 V
Uo<10% Un, no voltage signalling (alternative)
Uo>15% Un, voltage signalling
Uo>45% Un, normal voltage signalling
4.Connecting lead: 1—12 m
5.Ambient temperature range: -25--+55°C
6.Safe voltage for interface:< 30 V
7.Protective system: IP42 (IP54)
8.Dimensions (WxHxD):96 x 48 x 110 mm, cut dimensions on panel: 91 x 44 mm
9.Adapted sensors: Capacitive insulators with 10pF (40.5kV), 15pF (24kV), 20pF (12kV),40pF(7.2kV), etc.
10.Caoacitive insulators or bushings with capacitive tap with equivalent coupling capacity and voltage level as mentioned above,Customized for individual solutions.
