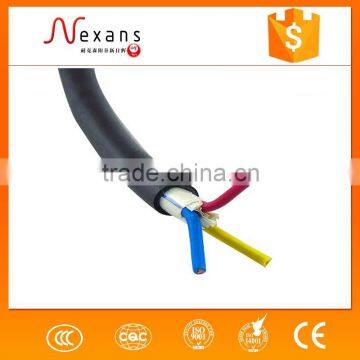

Help CenterFlexible 2.5mm Cable Used for House Fixing and Electric Appliance Wiring, BV Copper Wire Price per Meter
Related Products
-
House Wiring Electrical Cable 8mm Copper Wire With Factory PriceUS$ 7 - 8MOQ: 1 Meter -
THHN 10AWG 12AWG 14AWG 16AWG Copper Conducotr Electrical WireUS$ 0.5 - 50MOQ: 5000 Meters
-
THHN 16 AWG Copper Conducotr Electrical WireUS$ 0.5 - 50MOQ: 5000 Meters
-
THHN Solid or Stranded Copper Conducotr Electrical WireUS$ 0.5 - 50MOQ: 5000 Meters
-
THHN 10 AWGUS$ 0.5 - 50MOQ: 5000 Meters
PVC Insulated Copper Building Wire 1.5mm 2.5mm 4mm 6mm 10mm
CROSS SECTION AREA:
0.75, 1, 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240mm² etc.
automatic electric wire
1). Single or multiple cores PVC insulated
2). AC 300/500V
3). Model: 0.3-10mm²
4). Rated temperature: 65~75°C
5). CCC IEC ISO (IEC 60227-1:2007)
6). Design and manufacture according to the requirements of customers.
automatic electric wire specification
|
Code Designation by IEC |
Code Designation by GB |
Voltage |
Products Name |
Constructions |
Maximum conductor temperature |
60227 IEC 01 |
BV |
450/750 V |
Single-core non-sheathed cable with rigid conductor for general purposes |
Cl.1 Solid Copper Conductor or Cl.2 Stranded Copper Conductor, PVC/C Insulation |
70 °C. |
60227 IEC 02 |
RV |
450/750 V |
Single-core non-sheathed cable with flexible conductor for general purposes |
Cl.5 Flexible Stranded Copper Conductor, PVC/C Insulation |
70 °C. |
60227 IEC 05 |
BV |
300/500 V |
Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 70 °C |
Cl.1 Solid Copper Conductor, PVC/C Insulation |
70 °C. |
60227 IEC 06 |
RV |
300/500 V |
Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor t emperature of 90 °C |
Cl.5 Flexible Stranded Copper Conductor, PVC/C Insulation |
90 °C. |
60227 IEC 07 |
BV-90 |
300/500 V |
Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 90 °C |
Cl.1 Solid Copper Conductor, PVC/E Insulation |
90 °C. |
60227 IEC 08 |
RV-90 |
300/500 V |
Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 90 °C |
Cl.5 Flexible Stranded Copper Conductor, PVC/E Insulation |
90 °C. |
60227 IEC 10 |
BVV |
300/500 V |
Light PVC Sheathed Cable |
Cl.1 Solid Copper Conductor or Cl.2 Stranded Copper Conductor, PVC/C Insulation, PVC/ST5 Sheathed |
70 °C. |
60227 IEC 52 |
RVV |
300/300 V |
Light PVC Sheathed Cord |
Cl.5 Flexible Stranded Copper Conductor, PVC/D Insulation, PVC/ST5 Sheathed |
70 °C. |
60227 IEC 53 |
RVV |
300/500 V |
Ordinary PVC Sheathed Cord |
Cl.5 Flexible Stranded Copper Conductor, PVC/D Insulation, PVC/ST5 Sheathed |
70 °C. |
RVVP |
300/300V |
Copper cable with PCV insulation and sheathed for copper braid screened |
CI.5 Flexible Stranded Copper Conductor, PVC Insulation, Copper braid screened, PVC sheathed |
70 ° |
processing flow
imported equippment
certificate
Looking forward to cooperation with you sincerely !
