Application and Description
Type THHN/THWN conductors are primarily used in conduit for services, feeder, and branch circuits in commercial or industrial applications as specified in the National Electrical Code.
When used as type THWN, conductor is suitable for use at temperatures not to exceed 90°C, dry locations or 75°C wet locations or not to exceed 75°C when exposed to oil or coolant. When used as type THWN-2, conductor is suitable for use in wet and dry locations at temperatures not to exceed 90°C or not to exceed 75°C when exposed to oil or coolant. When used as type MTW, conductor is suitable for use in wet locations, or when exposed to oil or coolant at temperatures not to exceed 60°C, or dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 75°C conductors per NFPA 79). Conductor temperatures not to exceed 105°C in dry locations when rated AWM and used as appliance wiring material. Voltage rating for all applications is 600 volts.
Cable Construction
Conductor:Soft annealed bare copper, Class B
Stranding per ASTM B8
Insulation:Tough, heat and moisture resistant Polyvinyl chloride (PVC) insulation .
Jacket: Nylon
Color:
upon request, black is preferable
Black THHN Wire
White THHN Wire

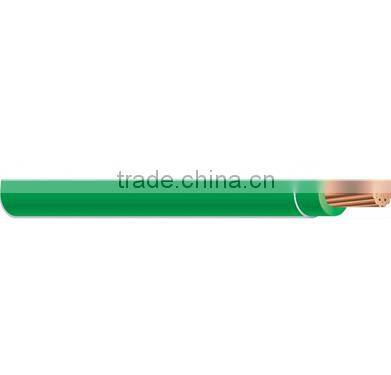

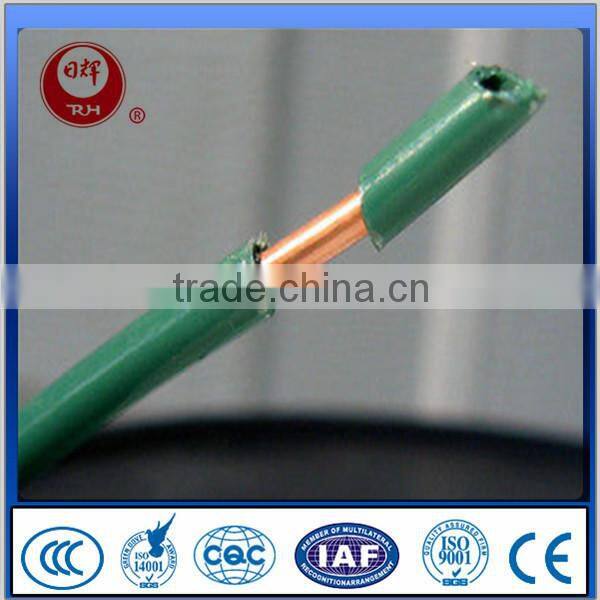

Green THHN Wire

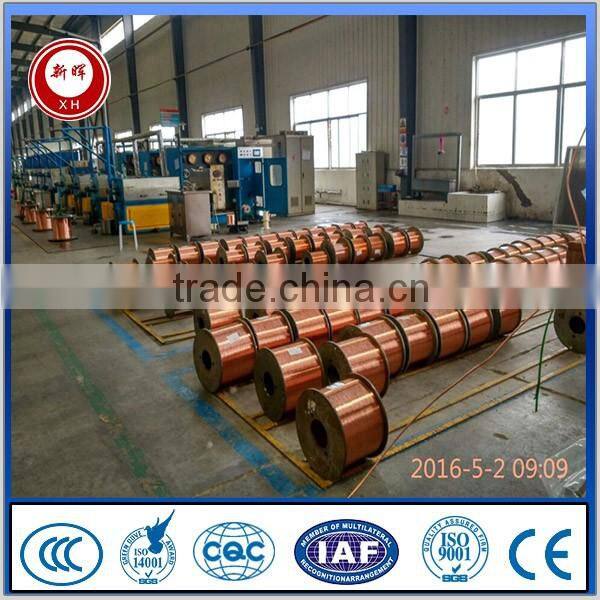

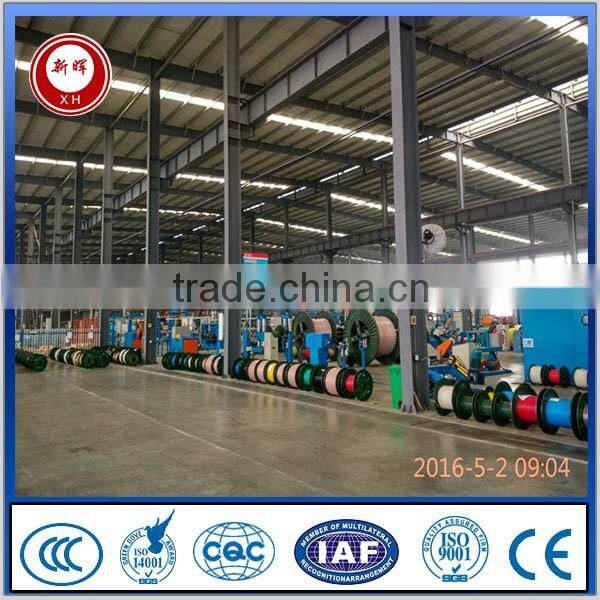

Shandong Yanggu Cable Group founded in 1980. 2012 found joint venture company with French Nexans.Shandong Xinhui Yanggu Cable CO.,Ltd. is Jinan Branch of Yanggu Cable Group. Shandong Xinhui Yanggu Cable Co.,Ltd. Is located in Shandong Province, China.
We specialize in Power Cables (LV Cable ,MV Cable ,HV Cable), Electrical Wires(PVC Insulated Wires), Overhead Cables(ABC Cable, ACSR Cable, AAC Cable, AAAC Cable), Instruments Cables, Mine Cables, Marine Cables, Fiber Optic Cables, Photoelectric Composite Cables, Communication Cables, Rubber Cables, Special Cables and more than 20 series with 5000 kinds of specifications of products. Our products can conform to dozens of standards such as GB, JB, IEC, BS, DIN, ASTM, UL, JIS, NF, AS/NZS and so on.Also we can produce based on customers' requirements and specifications.
We have established business relationship with more than 20 countries, such as South Korea, Malaysia,Thailand, Vietnam, Sri Lanka, Singapore, Iran, Kuwait, Pakistan, Nigeria, Ghana, Spain, Cyprus, Kuwait, Guatemala, Jordan, Chile, Peru and many other countries ,and obtained the clients trust and compliment.
By adhering to the concept of Quality First, Customer Supreme and Service Reliable, Shandong Xinhui Yanggu Cable Co.,Ltd. will grow bigger and stronger with you.
All of our staff sincerely welcome your coming and look forward to your cooperation.

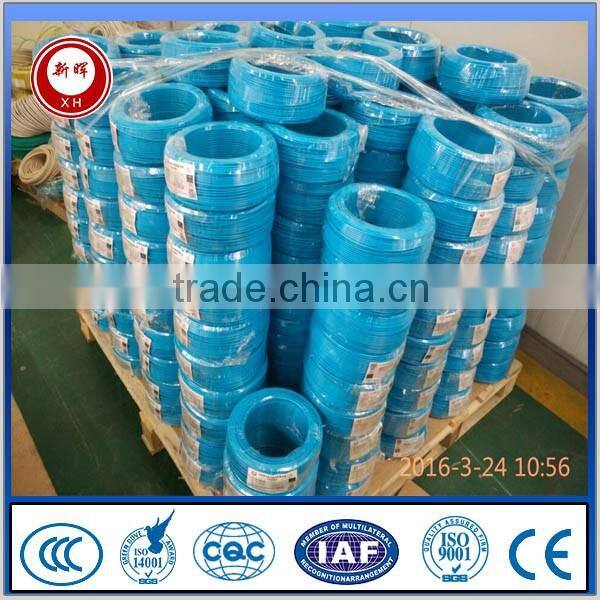

Packing

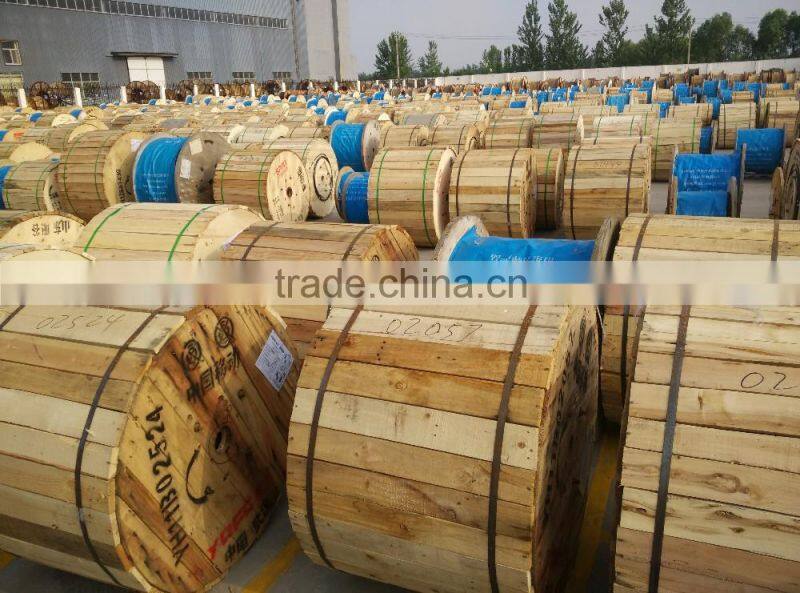

Wooden Drums
Wooden Bags
Accpet custom-made requiements
Delivery
Workshop----Port of Loading----Port of Discharge---Client Warehouse
1.What's your main performance?
1). 3 billion RMB sales in 2015 .
2). 1032 experts .
3.) National level advanced testing equipments ,complete testing equipments from French,Finland Nokia, Germany Troester.
4). 260 main production equipments
2.When can I get the quotation?
Within 24 hours after getting the inquiry,if you are very urgent to get the price,pls call us to give complete specifications about the wire or cable. price will be calculated soon.
3.How long about the delivery?
Usually wihin 21working days after payment, mainly according to the quantity.
4.What's your mission?
Provide safe ,environmentally-friendly wire and cable to our customers in delivering electricity and data.
