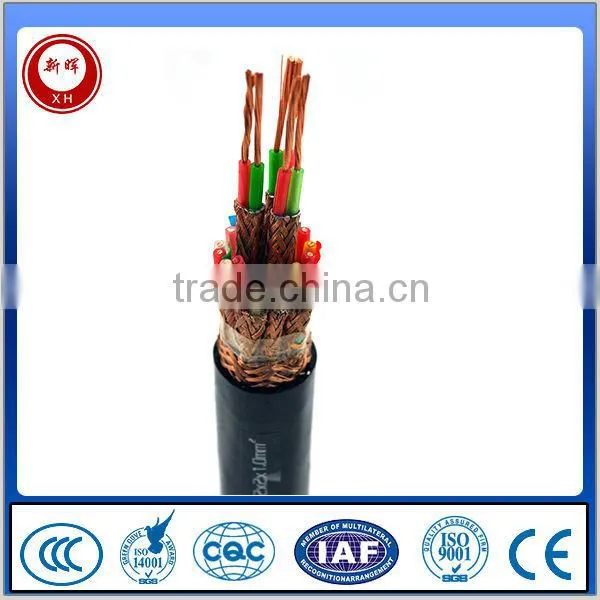

China Hot Sell Computer Power Cable With CE CCC ISO

China Hot Sell Computer Power Cable With CE CCC ISO thumbnail-1
China Hot Sell Computer Power Cable With CE CCC ISO thumbnail-2
China Hot Sell Computer Power Cable With CE CCC ISO thumbnail-3
China Hot Sell Computer Power Cable With CE CCC ISO thumbnail-4
China Hot Sell Computer Power Cable With CE CCC ISO thumbnail-5
China Hot Sell Computer Power Cable With CE CCC ISO thumbnail-6
China Hot Sell Computer Power Cable With CE CCC ISO photo-1
China Hot Sell Computer Power Cable With CE CCC ISO photo-2
China Hot Sell Computer Power Cable With CE CCC ISO photo-3
China Hot Sell Computer Power Cable With CE CCC ISO photo-4
China Hot Sell Computer Power Cable With CE CCC ISO photo-5
China Hot Sell Computer Power Cable With CE CCC ISO photo-6
US$ 0.1 - 50 MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Xinhui
Model Number:
ZR-DJYPVPR
Contact Supplier Request Quote Chat Now
Shandong Xinhui Yanggu Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Xinhui
Model Number ZR-DJYPVPR
Application Computer
Conductor Material Copper
Jacket PVC
Insulation Material PE

China hot sell computer power cable with CE CCC ISO

Product Description



  This product is suitable for rated voltage 500 v or below ,be the connectivity cable for the computer and automation .

 Technical parameter

1. Rated A. C. Voltage U0/U: 300/350V; Max long time working temperature allowed:
    For PVC insulation, two types: 70 or 90º C;
    For PE insulation: 70º C;
    For XLPE insulation: 90º C (XLPE insulation includes silane XLPE & irradiation XLPE insulation)
2. Min. Ambient temperature: Fixed installing -40º C; Unfixed installing -15º C. No lower than 0º C when installing.
3. Min. Bending radius allowed:
    For non-armored soft cable or braided shielding cable, no less than 6 times of outer diameter;
    For cable with metallic tape wrapped shielding or steel wire/steel tape armor, no less than 12 times of outer diameter.

 China hot sell computer power cable with CE CCC ISO

sectional area(mm²) wire structure overall diameter(mm) approx weight(kg/km)
radical/diameter(mm) DJYVP DJYVP2 DJYVP3 DJYVP DJYVP2 DJYVP3
1×2×0.5 1/0.80 7.6 7.3 9.6 65 47 83
1×2×0.75 1/0.97 8.2 7.8 10 71 52 90
1×2×1.0 1/1.13 8.8 8.5 10.6 81 61 103
1×2×1.5 1/1.38 9.5 9.2 11.3 100 78 124
1×2×2.5 1/1.78 10.5 10.2 12.3 132 109 164
2×2×0.5 1/0.8 10.5 10 12.5 109 84 139
2×2×0.75 1/0.97 11.2 10.7 13.2 134 106 165
2×2×1.0 1/1.13 12.6 12.1 14.6 158 129 196
2×2×1.5 1/1.38 13.8 13.3 15.8 244 211 284
2×2×2.5 1/1.78 16.2 15.7 18.2 270 243 343
3×2×0.5 1/0.80 11 10.5 13 132 105 163
3×2×0.75 1/0.97 12.2 11.7 14.2 169 139 202
3×2×1.0 1/1.13 13.7 13.2 15.7 196 165 236
3×2×1.5 1/1.38 15 14.5 17 249 214 303
3×2×2.5 1/1.78 17.2 16.7 9.2 347 308 415
4×2×0.5 1/0.8 11.8 11.3 12.8 165 135 199
4×2×0.75 1/0.97 12.7 12.2 14.7 206 173 242
4×2×1.0 1/1.13 14.4 14 16.4 249 206 295
4×2×1.5 1/1.38 15.7 15 17.7 310 272 370
4×2×2.5 1/1.78 18.7 18.2 20.9 462 400 518
5×2×0.5 1/0.80 13 12.5 15 194 162 233
5×2×0.75 1/0.97 14 13.5 16 247 212 299
5×2×1.0 1/1.13 16 15.5 18 288 250 349
5×2×1.5 1/1.38 17.5 17 19.5 384 341 449
5×2×2.5 1/1.78 20.9 20.4 23 564 496 627
7×2×0.75 1/0.8 13.8 13.3 15.8 242 207 296
7×2×0.75 1/0.97 15.3 14.8 17.3 310 272 368
7×2×1.0 1/1.13 17.4 17 19.5 375 333 441
7×2×1.5 1/1.38 19 18.5 21.2 512 448 566
7×2×2.5 1/1.78 22.7 22.2 25 728 654 798
8×2×0.5 1/0.80 15.3 14.8 17.3 277 240 336
8×2×0.75 1/0.97 16.8 16.3 18.8 367 325 429
8×2×1.0 1/1.13 19.2 18.7 21.5 455 382 499
8×2×1.5 1/1.38 20.4 20 22.6 592 520 649
8×2×2.5 1/1.78 4.5 24 26.8 850 770 950
10×2×0.5 1/0.80 18.2 17.7 20.2 382 319 430
10×2×0.75 1/0.97 20 19.5 22 486 417 538
10×2×1.0 1/1.13 22.8 22.3 25 579 504 640
10×2×1.5 1/1.38 24.7 24.2 27 752 668 817
10×2×2.5 1/1.78 28.8 28.3 31.2 1155 1000 1210
12×2×0.5 1/0.80 18.8 18.3 21 425 360 474
12×2×0.75 1/0.97 20 20.2 22.8 545 472 597
12×2×1.0 1/1.13 23.5 23 25.8 652 574 715
12×2×1.5 1/1.38 25.4 26 27.6 850 765 920
12×2×2.5 1/1.78 30.7 30 32.8 1305 1150 1367
14×2×0.5 1/0.80 19.5 19 21.7 475 407 528
14×2×0.75 1/0.97 21.5 21 23.7 622 545 677
14×2×1.0 1/1.13 24.6 24.1 26.8 736 655 804
14×2×1.5 1/1.38 26.7 26.2 29 1030 883 1070
14×2×2.5 1/1.78 32.5 32 35 1480 1315 1544
16×2×0.5 1/0.80 21 20.5 23 538 466 594
16×2×0.75 1/0.97 23 22.5 25 694 613 752
16×2×1.0 1/1.13 26 25.5 28.4 823 738 919
16×2×1.5 1/1.38 28.5 28 31 1165 1010 1209
16×2×2.5 1/1.78 34.5 34 37 1675 1500 1743
19×2×0.5 1/0.80 22.4 22 24.4 610 535 669
19×2×0.75 1/0.97 23.7 23.2 25.7 790 706 854
19×2×1.0 1/1.13 27 26.5 29.4 854 863 1056
19×2×1.5 1/1.38 29.6 29.1 32 1350 1185 1396
19×2×2.5 1/1.78 36 35.5 38.5 1925 1740 1998
24×2×0.5 1/0.80 25.5 25 27.7 780 692 876
24×2×0.75 1/0.97 28.2 27.8 30.7 1100 940 1141
24×2×1.0 1/1.13 32.5 32 34.8 1320 1150 1378
24×2×1.5 1/1.38 35.2 34.7 37.6 1720 1910 2159
24×2×2.5 1/1.78 42.5 42 45 2465 2250 2555
