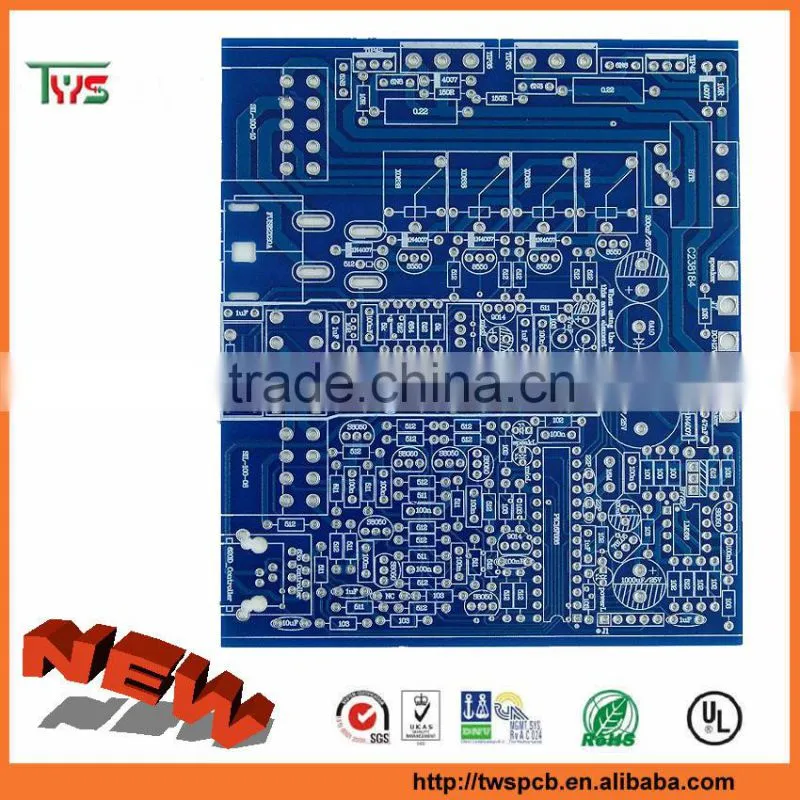

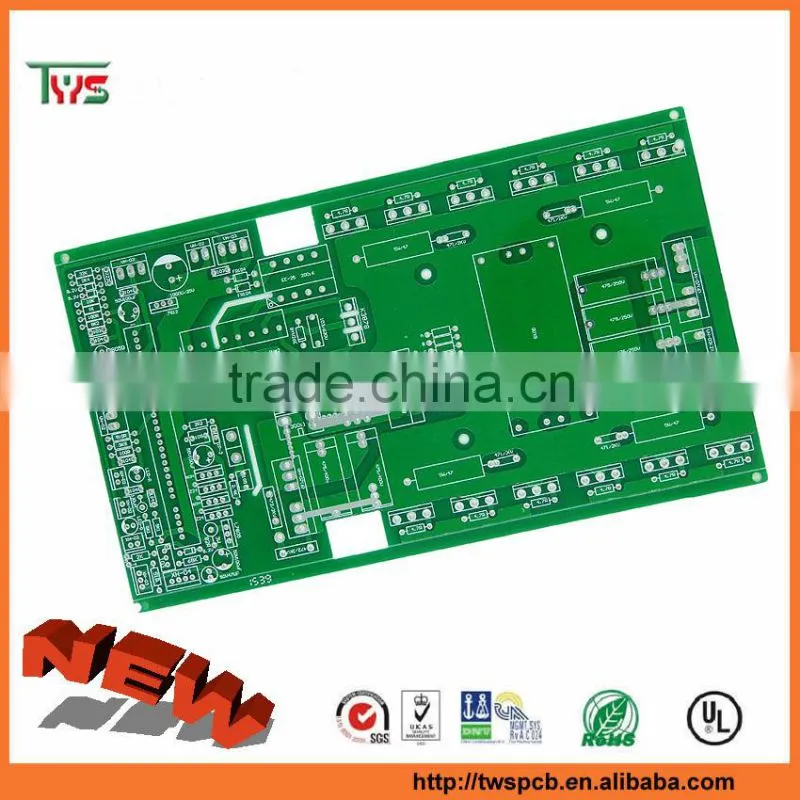

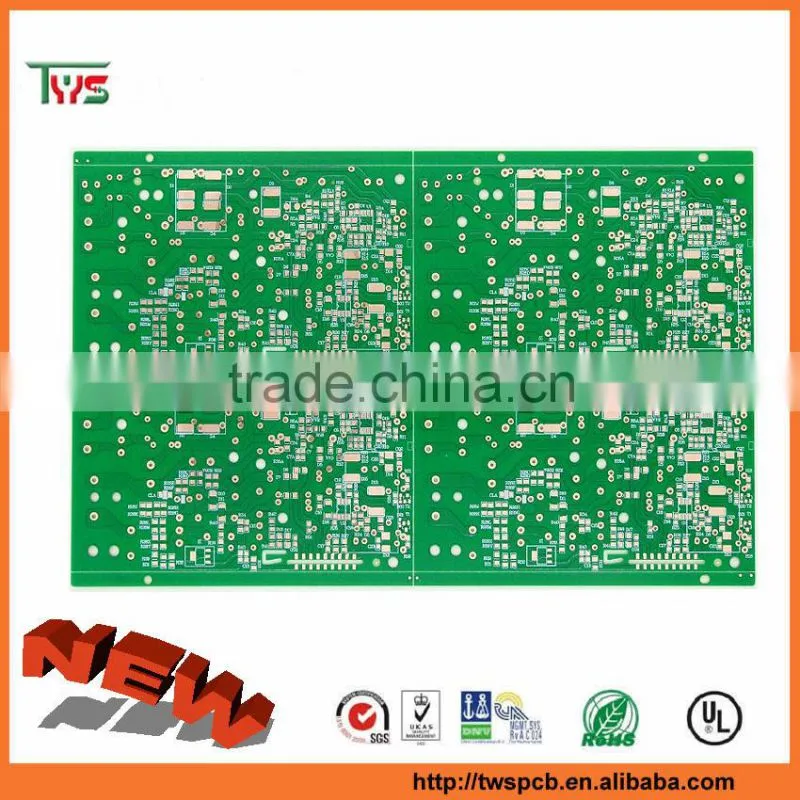

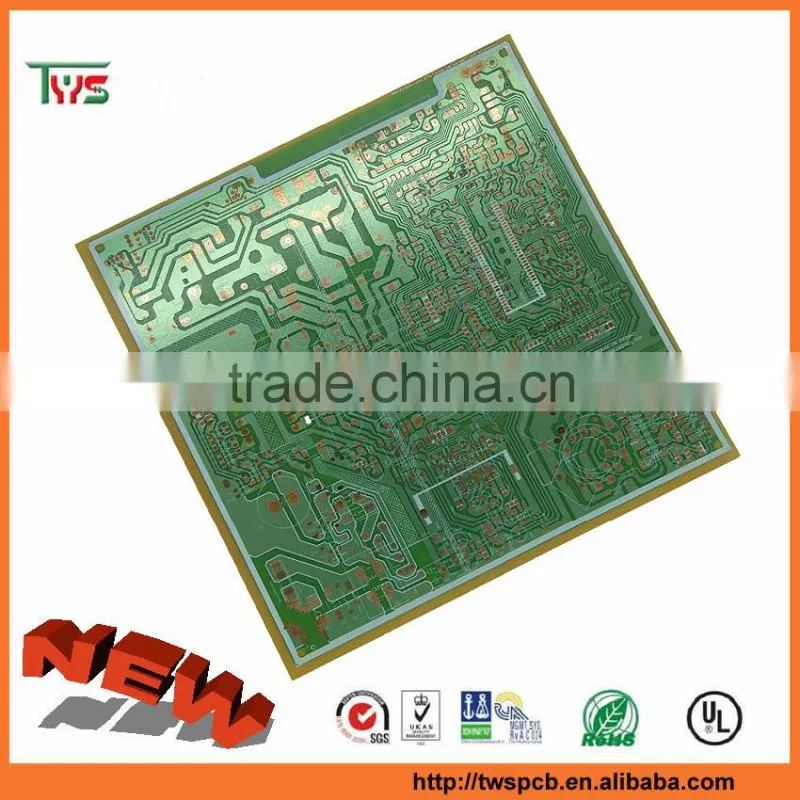

Cheaper 2016 Hot Sale Single Sided Rigid PCB
Shenzhen tianweisheng electronic co.,ltd is a professional PCB printed circuit board manufacturers, production bases located in Bao'an, and convenient communications facilities. Plant footprint 8,000 square meters, with more than 300 employees, including senior staff accounted for 80%. Since its 2003 founding, has been committed to the professional high-precision single-double-sided, multi-layer printed circuit board manufacture, and the company always concerned about the PCB industry and to grasp new technologies and control, advancing with the times, and always adhere to using advanced concepts and mature sound technical production and better meet the needs of the market. Company R & D team through the unremitting efforts, now has a manufacturing multilayer blind, buried hole circuit boards, flexible circuit board (FPC), high-precision impedance, HDI, other special circuit board fabrication capacity. Delivery fast, with quality, credibility is the company's first comparative advantage will be able to offer customers real model for single-, double-sided 12-24 hours intensive, 4 - 8-48-72 hours of intensive and small quantities of Rapid Plate services, the delivery capacity of more than 100 varieties of varieties of over 4,000 species, an area of 7,000 square meters.
Cheaper 2016 Hot Sale Single Sided Rigid PCB
Cheaper 2016 Hot Sale Single Sided Rigid PCB
| Number of Layer | 1,2,4 or 6,upto 18 layer |
| Order Quantity | 1 to 50,000 |
| Board Shape | Retangular,round,slots,cutouts,complex,irregular |
| Board Type | Rigid, Flexible, Rigid-flexible |
| Board Material | FR-4 glass epoxy, FR-4 high Tg, Rohs compliant,Aluminum,Rogers,etc. |
| Board Cutting | Shear,V-score,Tab-routed |
| Board Thickness | 0.2-4.0mm, Flex 0.01-0.25mm |
| Copper Weight | 1.0, 1.5, 2.0 oz |
| Solder Mask | Double-sided green LPI,Also support Red,White,Yellow,Blue,Black |
| Silk Screen | Double-sided or single-sided in white,yellow,black,or negative |
| Silk Screen Min Line Width | 0.006'' or 0.15mm |
| Max Board Dimensions | 20 inch*20inch or 500mm*500mm |
| Min Trace/Gap | 0.10mm, or 4mils |
| Min Drill Hole Diameter | 0.01'',0.25mm, or 10mils |
| Surface Finish | HASL,Nickle,Immersion Gold,Immersion Tin,Immersion Silver,OSP,etc. |
| Board Thickness Tolerance | ±10% |
| Copper Weight Tolerance | ± 0.25 oz |
| Minimal Slot Width | 0.12'', 3.0mm, or 120mils |
| V-Score Depth | 20-25% of board thickness |
| Design File Formate | Gerber RS-274,274D,Eagle and AutoCAD's DXF,DWG |
Cheaper 2016 Hot Sale Single Sided Rigid PCB
Q1:Are you a factory or trade company ?
A:Chuante is a manufacturer of PCB.Specializes in PCB/PCB Board for 15 years.
Q2:What kind of PCB file format can you accept for production?
A:Gerber is best other file also ok for us
Q3:Are my PCB files safe when I submit them to you for manufacturing?
A:We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written
permission from you, nor we'll share these files with any other 3rd parties.
Q4:No PCB file/Gbr file, only have the PCB sample,can you produce it for me?
A: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out the
Q5:How to get the PCBs?
A:For small packages, we will ship the boards to you by DHL, UPS, or EMS. Door to door service! You will get your PCBs at your home.
For heavy goods more than 300kg, we may ship your PC boards by ship or by air to save freight cost. Of course, if you have your own
forwarder, we may contact them for dealing with your shipment.
Q6:What is your minimum order quantity?
A:Our MOQ is 1 PCS.
Q7:How about your factory production capacity?A:we can provide 100000 square meter/month.
1.high quality pc
2.Good price
3.fast lead time.
4.UL/SGS/ROHS / ISO9001 certificate
For any questi ons,welcome to contact me anytime.
Sided Rigid PCB
1.High efficiency&Experience
We can provide one stop service.Established in 1998, with many years hard-working and constant innovation,we have
grown up into a professional PCB&PCBA manufacturer. We have our own independent research and development
department and sophisticated quality control system.
--------------------------------------------------------------------------------
2.Quality
Our product are manufactured according to the UL/Rohs standards to insure quality assemblies from start to finish. Whether
it's a simple custom or not.Product or a complex turnkey production run, We will adhere to the highest quality standards.
--------------------------------------------------------------------------------
3.Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.
--------------------------------------------------------------------------------
4.Service
We can provide 24hours service for you. We pride ourselves on our ability to custom tailor programs around our customers'
needs.We take time to listen to your unique business needs and then set out to surpass them.
5L/T
| layers | sample | First order | repeat order |
single side |
3days |
7days | 6days |
| Double side | 4days | 8days | 7days |
| 4 layer | 7days | 9days | 8days |
| 6 layer | 8days | 10days | 9days |
| 8layer | 10days | 12days | 10days |
| 10layer | 12days | 14days | 12days |
| Alu-base | 3days | 8days | 7days |
