UHF hf Transceiver Radio for Wanhua GTS-812 Walkie Talkie Ham Radio

UHF hf Transceiver Radio for Wanhua GTS-812 Walkie Talkie Ham Radio photo-1
UHF hf Transceiver Radio for Wanhua GTS-812 Walkie Talkie Ham Radio photo-2
UHF hf Transceiver Radio for Wanhua GTS-812 Walkie Talkie Ham Radio photo-3
UHF hf Transceiver Radio for Wanhua GTS-812 Walkie Talkie Ham Radio photo-4
UHF hf Transceiver Radio for Wanhua GTS-812 Walkie Talkie Ham Radio photo-5
UHF hf Transceiver Radio for Wanhua GTS-812 Walkie Talkie Ham Radio photo-6
US$ 1 - 60 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Wanhua
Model Number:
GTS-812
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name Wanhua
Model Number GTS-812
Type Handheld
Dimensions 126 x 59 x 34mm(without antenna)
Frequency Range 136-174MHz 400-470MHz
Storage Channel 16 Channels
Talk Range 3-5KM

UHF hf Transceiver Radio for Wanhua GTS-812 Walkie Talkie Ham Radio



FEATURES:







Site alarm





Voice prompt





Battery power saving, low power reminder





Time- out timer (TOT)





Time-out timer pre-alarm





Built-in CTCSS/DCS encode and decode solution





Monitor, scan function



UHF hf Transceiver Radio for Wanhua GTS-812 Walkie Talkie Ham Radio



Product Description

UHF hf Transceiver Radio for Wanhua GTS-812 Walkie Talkie Ham Radio



Specifications
Frequency range400-470MHz (single band)
136-174MHz(single band)
Memory channel16
Channel spacing12.5KHz /25KHz
Frequency stability±2.5ppm
Antenna impedance50Ω
Operate voltagerated DC7.4V
Transmiter
RF output powerhigh: 5W,low: 1W
FM modulation modeF3E
Adjacent70dB(Wide),65dB(narrow)
Modulation limit±2.5KHz/12.5KHz,±5KHz/25KHz
Audio distortion≤5%
Receiver
RX sensitivity0.25μV(12dB SINAD)
Adjacent selectivity60dB/12.5KHz,70dB/25KHz
Intermodulation60db
Spurious rejection60db
Blocking85db
Rated audio power output0.5W
Rated audio distortion≤5%
Audio response+1,-3db
Environmental specifications
Operating temperature-30℃ to +60℃
Storage temperature-40℃ to +85℃



Certifications

 UHF hf Transceiver Radio for Wanhua GTS-812 Walkie Talkie Ham Radio

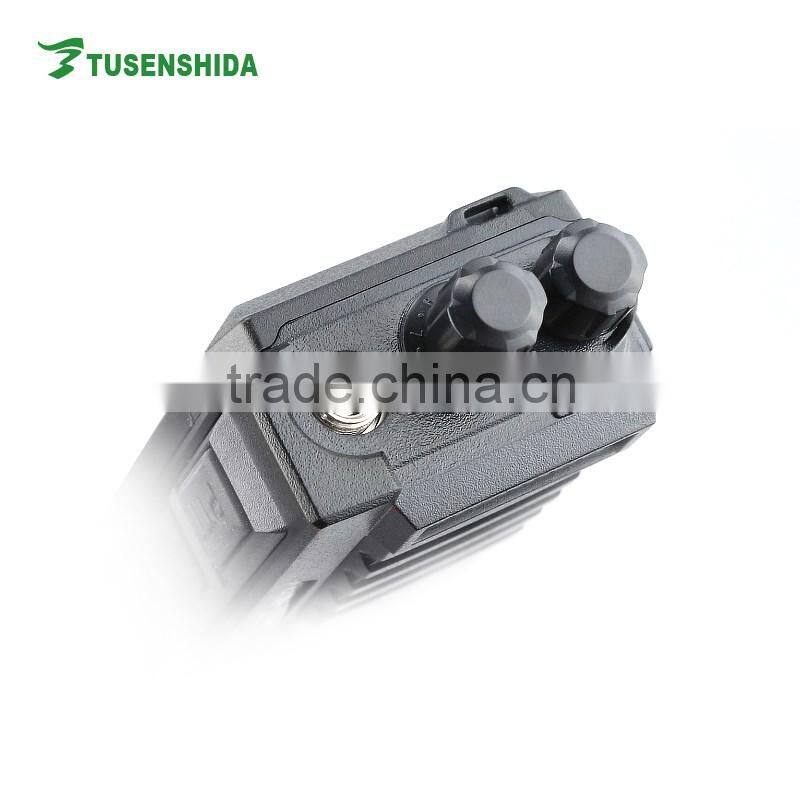

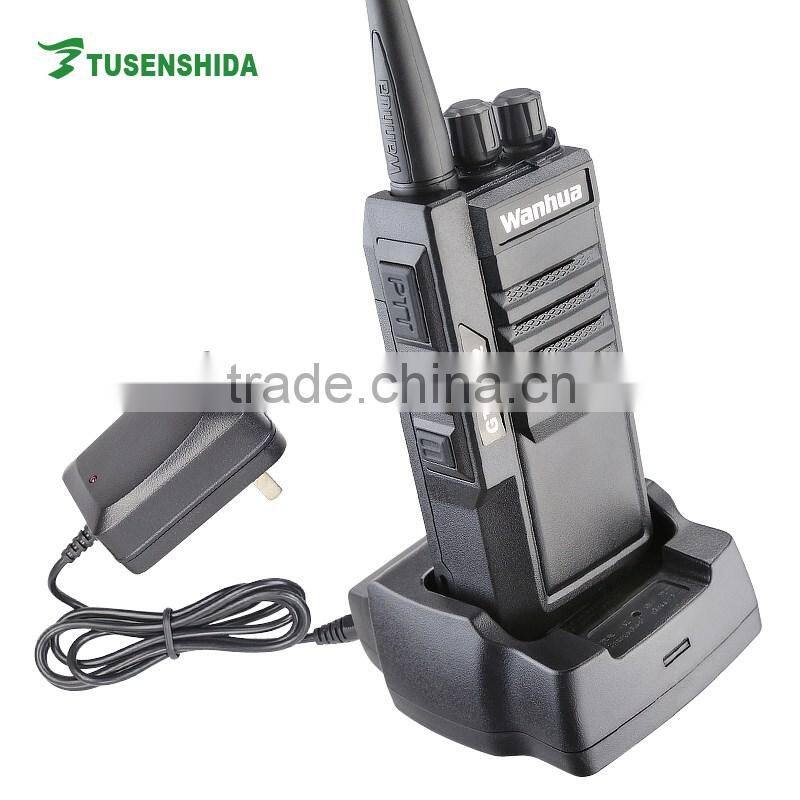

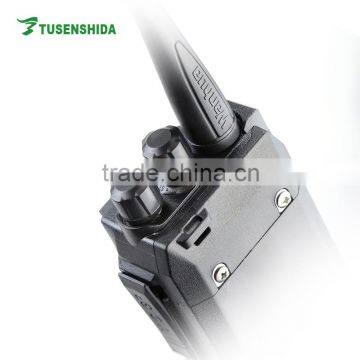

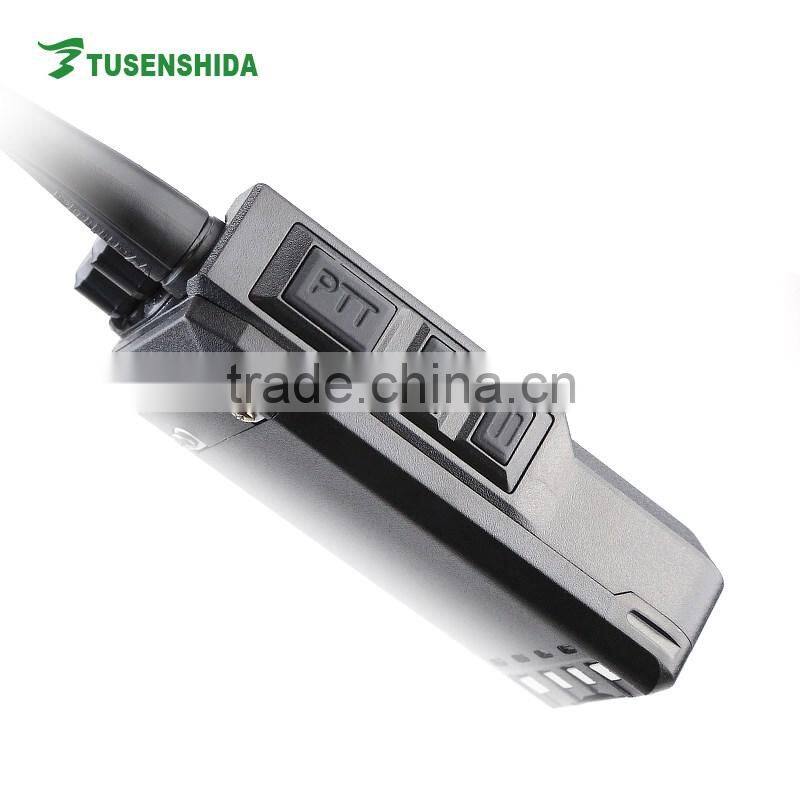

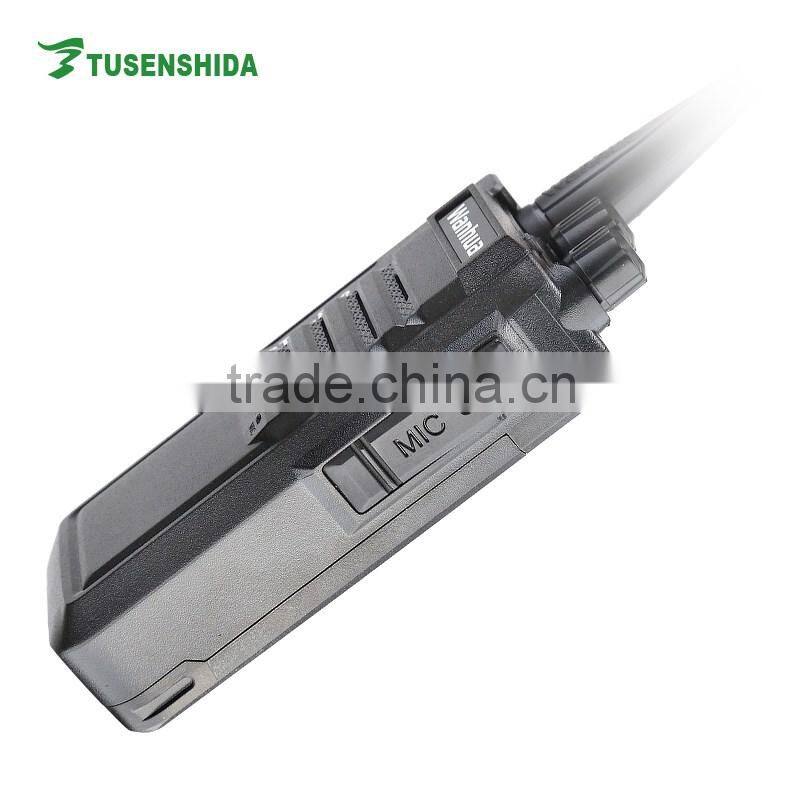

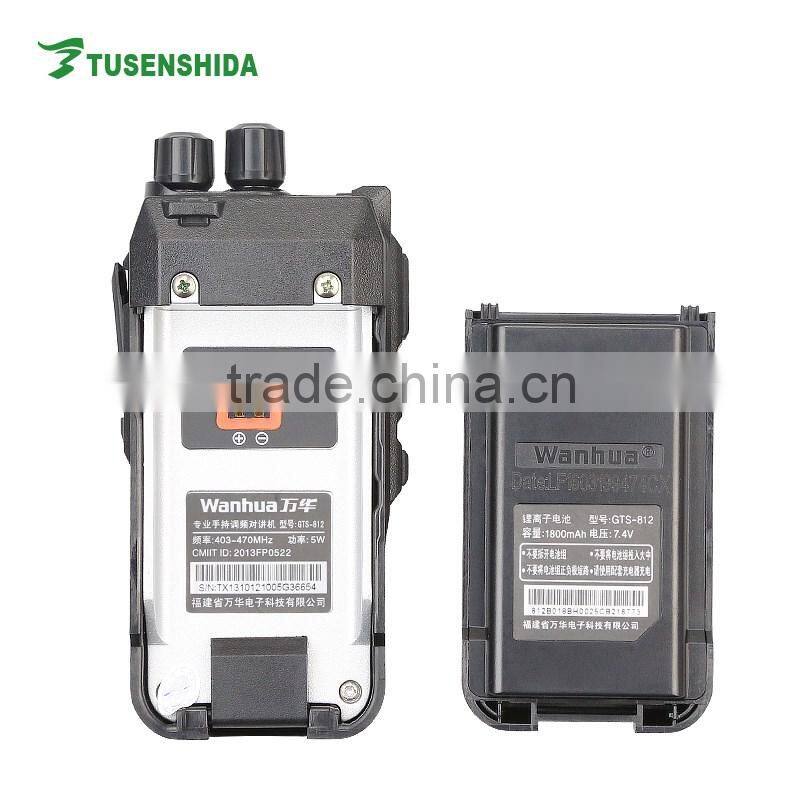

Detailed Images

UHF hf Transceiver Radio for Wanhua GTS-812 Walkie Talkie Ham Radio

UHF hf Transceiver Radio for Wanhua GTS-812 Walkie Talkie Ham RadioUHF hf Transceiver Radio for Wanhua GTS-812 Walkie Talkie Ham RadioUHF hf Transceiver Radio for Wanhua GTS-812 Walkie Talkie Ham RadioUHF hf Transceiver Radio for Wanhua GTS-812 Walkie Talkie Ham Radio



Packaging & Shipping

 UHF hf Transceiver Radio for Wanhua GTS-812 Walkie Talkie Ham Radio

UHF hf Transceiver Radio for Wanhua GTS-812 Walkie Talkie Ham Radio

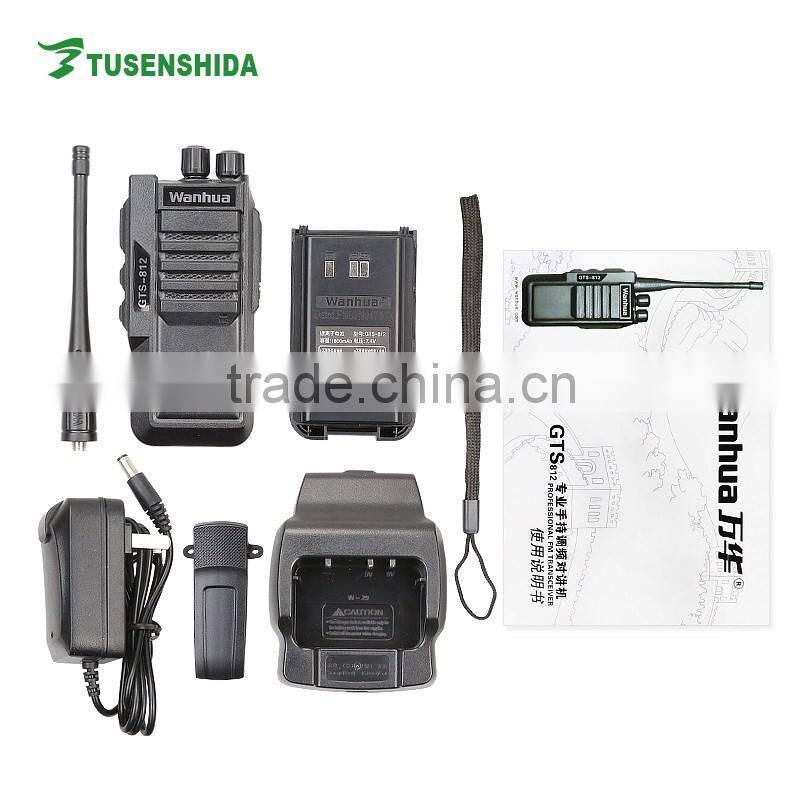

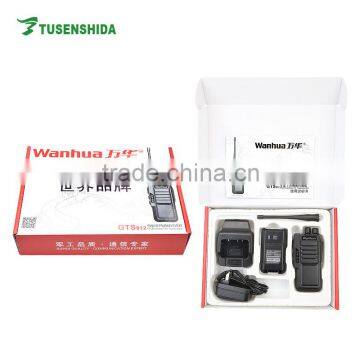

PACKING DETAILS



1 X Host



1 X DC7.4V Li-ion Batterypack





1 X Antenna





1 X Strap





1 X Blet clip





1 X Charger





1 X User's Manual





Our Services

 UHF hf Transceiver Radio for Wanhua GTS-812 Walkie Talkie Ham Radio

UHF hf Transceiver Radio for Wanhua GTS-812 Walkie Talkie Ham Radio

Shipping terms

1-2days for sample order,3-5days for bulk order



Customer Service

1.OEM&ODM service offered

2.Sample's fee can be refund after order reached 1000sets.

3.Delivery can be express: DHL,UPS,FedEx,EMS,TNT.



Warranty

Before delivery, we will check the item's quality strictly one by one. Life-warranty for radio body & accessories, please contact us immediately when you get defective,thanks.



Payment terms

Payment:T/T,Western Union,escrow below US$1000 accept Paypal payment term(please do Not believe anybody by Email say our band changed,thank you)
