136-174MHz 403-480MHz Selectable Single Band Walkie Talkie Wanhua HTD-815 5-10km Transceiver
FEATURES:
FM radio (optional)
Large battery capacity
Ultra-long standy time
Voice prompt
Battery power saving, low power reminder
TOT
Time out timer pre-alarm
Built-in CTCSS/DCS encode and decode solution
Monitor,scan function
136-174MHz 403-480MHz Selectable Single Band Walkie Talkie Wanhua HTD-815 5-10km Transceiver
| Specifications | |
| Frequency range | 403-480MHz (single band) |
| 136-174MHz(single band) | |
| Memory channel | 16 |
| Channel spacing | 12.5KHz /25KHz |
| Frequency stability | ±2.5ppm |
| Antenna impedance | 50Ω |
| Operate voltage | rated DC3.7V |
| Transmiter | |
| RF output power | high: 5W,low: 1W |
| FM modulation mode | F3E |
| Adjacent | 70dB(Wide),65dB(narrow) |
| Modulation limit | ±2.5KHz/12.5KHz,±5KHz/25KHz |
| Audio distortion | ≤5% |
| Receiver | |
| RX sensitivity | 0.25μV(12dB SINAD) |
| Adjacent selectivity | 60dB/12.5KHz,70dB/25KHz |
| Intermodulation | 60db |
| Spurious rejection | 60db |
| Blocking | 85db |
| Rated audio power output | 0.5W |
| Rated audio distortion | ≤5% |
| Audio response | +1,-3db |
| Environmental specifications | |
| Operating temperature | -30℃ to +60℃ |
| Storage temperature | -40℃ to +85℃ |
136-174MHz 403-480MHz Selectable Single Band Walkie Talkie Wanhua HTD-815 5-10km Transceiver
136-174MHz 403-480MHz Selectable Single Band Walkie Talkie Wanhua HTD-815 5-10km Transceiver

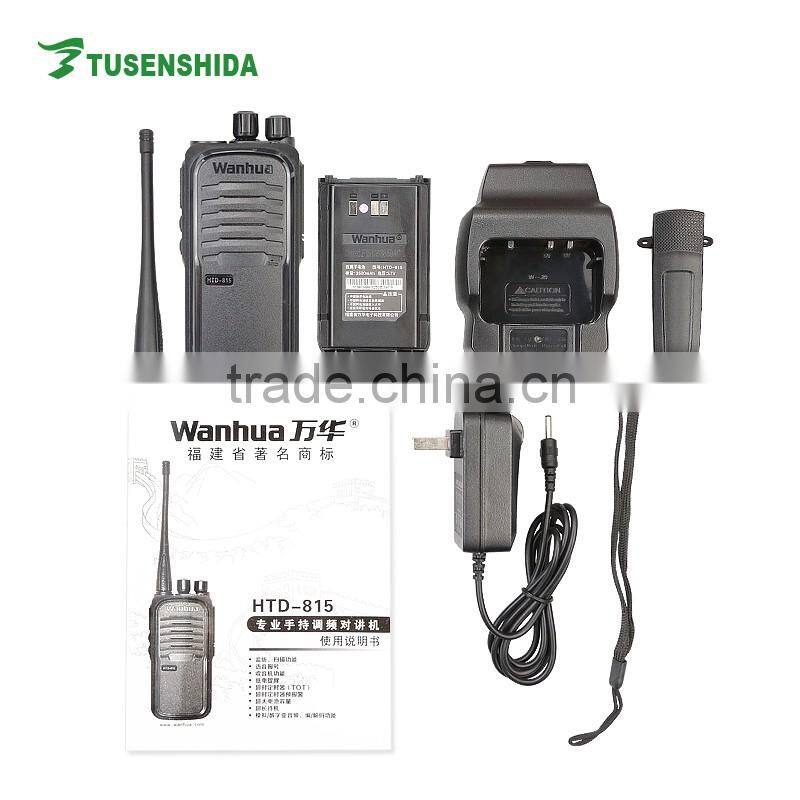

PACKING DETAILS:
1 X Host
1 X DC7.4V Li-ion Batterypack
1 X Antenna
1 X Strap
1 X Blet clip
1 X Charger
1 X User's Manual
Shipping time
1-2days for sample order,3-5days for bulk order
Customer Service
1.OEM&ODM service offered
2.Sample's fee can be refund after order reached 1000sets.
3.Delivery can be express: DHL,UPS,FedEx,EMS,TNT.
Warranty
Before delivery, we will check the item's quality strictly one by one. Life-warranty for radio body & accessories, please contact us immediately when you get defective,thanks.
Payment terms
Payment:T/T,Western Union,escrow below US$1000 accept Paypal payment term(please do Not believe anybody by Email say our band changed,thank you)
