100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie

100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie thumbnail-1
100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie thumbnail-2
100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie thumbnail-3
100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie thumbnail-4
100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie thumbnail-5
100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie thumbnail-6
100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie photo-1

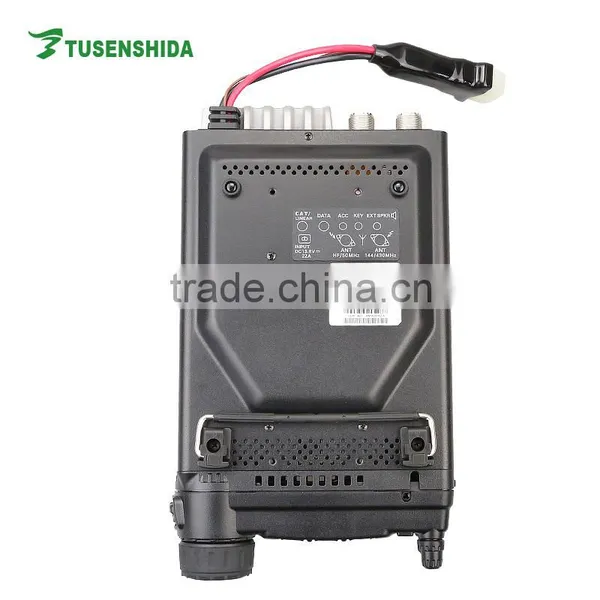

100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie photo-2
100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie photo-3
100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie photo-4
100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie photo-5
100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie photo-6
US$ 1 - 950 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Yaesu
Model Number:
FT-857D
Contact Supplier Request Quote Chat Now
Quanzhou Tucson Age Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Yaesu
Model Number FT-857D
Type Vehicle Mouted
Dimensions 155*52*233mm
Frequency Range 0.1-56, 76-108, 118-164 and 420-470MHz
Storage Channel 200 Channels
Talk Range 15-30km

100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie

100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie

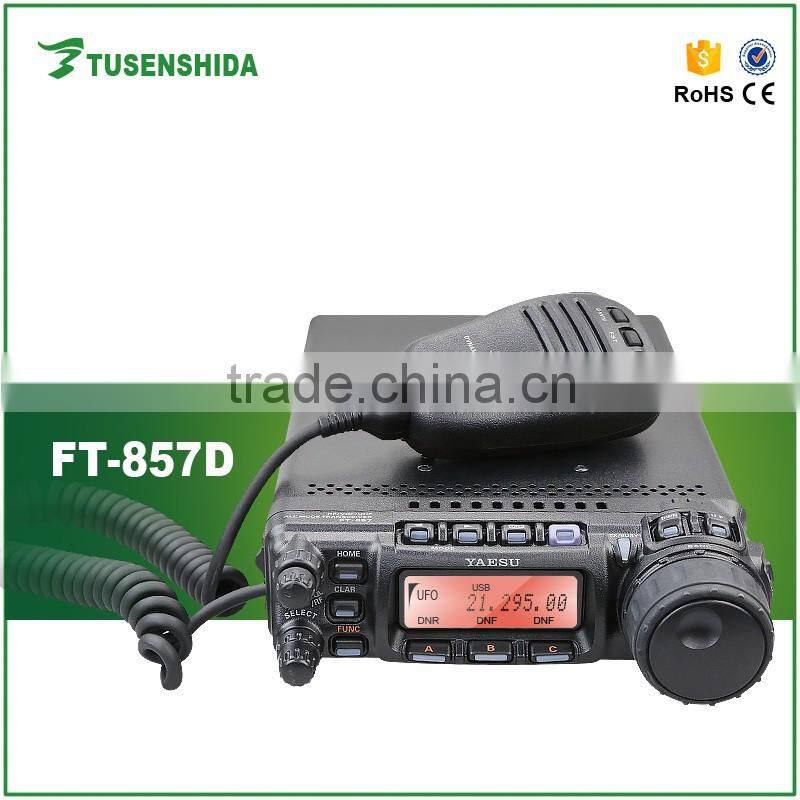

The FT-857D, the world's smallest HF/VHF/UHF mobile transceiver, provides base station-type performance from an ultra-compact package that's ideal for mobile or external battery portable work. Wide frequency coverage, outstanding receiver performance, and the convenience of optional remote-head operation make the FT-857D the expert's choice for high-performance mobile operation!

The new FT-857D version includes coverage of the U.S. 60-meter (5 MHz) band, plus the previously-optional DSP circuitry, at no additional cost!

Product Description

100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie



GENERAL
Frequency Range: Receive: 0.1-56, 76-108, 118-164 and 420-470 MHz
Transmit: 160 - 6 Meters including 60 Meters
2 Meters hf radio transceiver
70 Centimeters (Amateur bands only)
5167.5 kHz: Alaska Emergency Frequency
(U.S.A. version only)
Emission Modes: A1 (CW), A3 (AM), A3J (LSB/USB),
F1 (9600 bps Packet), F2 (1200 bps Packet), F3 (FM)
Synthesizer Steps (Min.): 10 Hz (CW/SSB), 100 Hz (AM),
100 Hz (FM), 100 Hz (WFM)
Antenna Impedance: 50 Ohm, Unbalanced
Operating Temp. Range: -10 °C to +60 °C (14 F to 140 F)
Frequency Stability: Better than ? ppm (-10 °C to +50 °C)
Power Requirements: DC 13.8V±10 %, Negative Ground
Current Consumption: Receive (Squelched): 0.55A
Receive (Max. Audio): 1A
Transmit: 22A (@ 100W RF output)
Case Size: 6.1" (W) x 2.0" (H) x 9.2" (D) (155 x 52 x 233 mm)
Weight: 4.6 lb. (2.1 kg.)
TRANSMITTER
Power Output: 160 - 6m: 100 Watts (25 Watts AM carrier)
2m: 50 Watts (12.5 Watts AM carrier)
70cm: 20 Watts (5 Watts AM carrier)
Modulation Types: SSB: Balanced Modulator
FM: Variable Reactance
AM: Early Stage (Low Level)
FM Maximum Deviation: 5 kHz on FM-N
Spurious Radiation: Harmonics: At least 50 dB down (1.8 - 29.7 MHz)
At least 60 dB down (50/144/430 MHz)
Non-harmonic: At least 50 dB down (1.8 - 29.7 MHz)
At least 60 dB down (50/144/430 MHz)
Carrier Suppression: At least 40 dB
Opp. Sideband Suppression: At least 50 dB
SSB Frequency Response: 400 Hz - 2600 Hz (-6 dB)
Microphone Impedance: 200 - 10 k Ohm (Supplied microphone: 2 k Ohm)

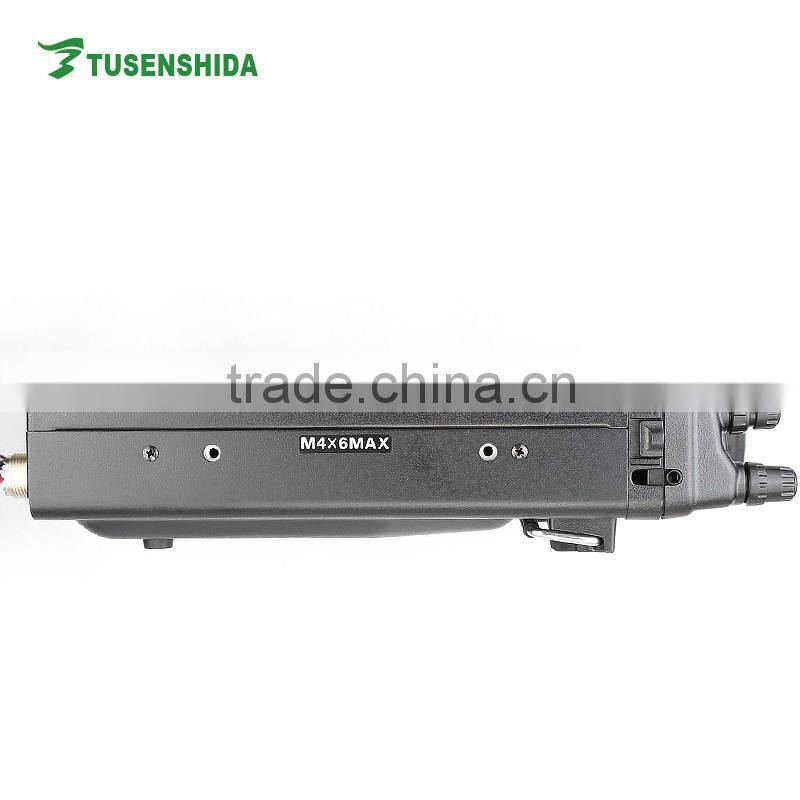

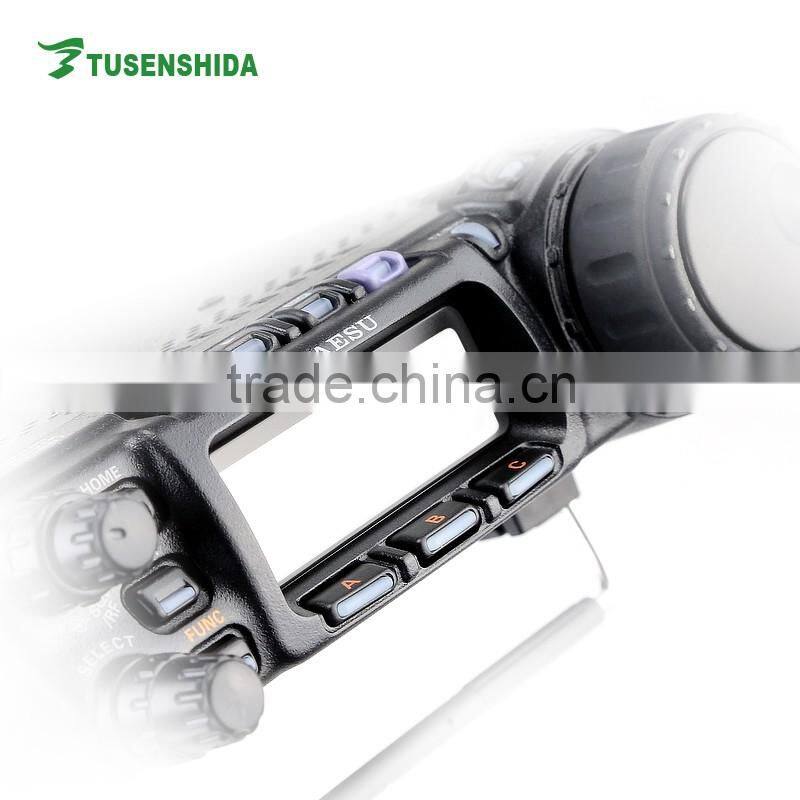

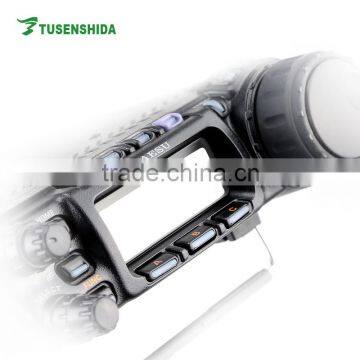

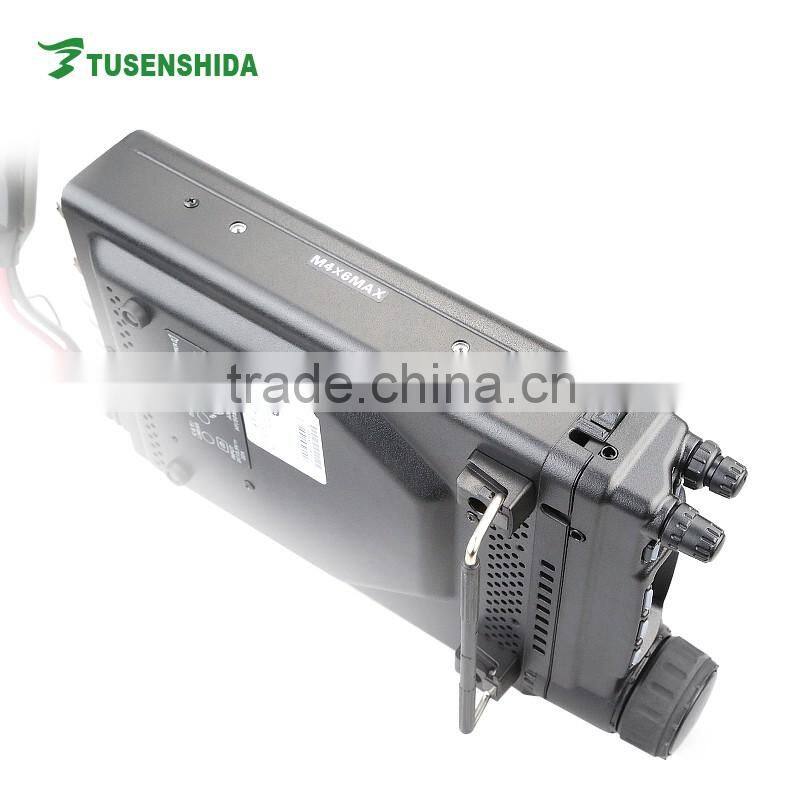

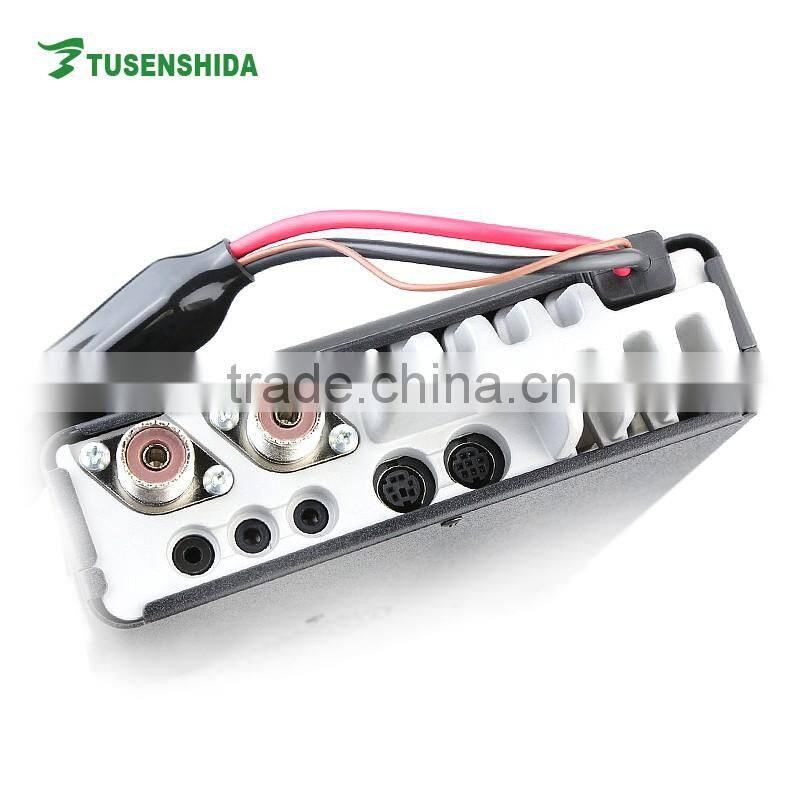

Detailed Images

100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie



Packaging & Shipping

100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie

100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie

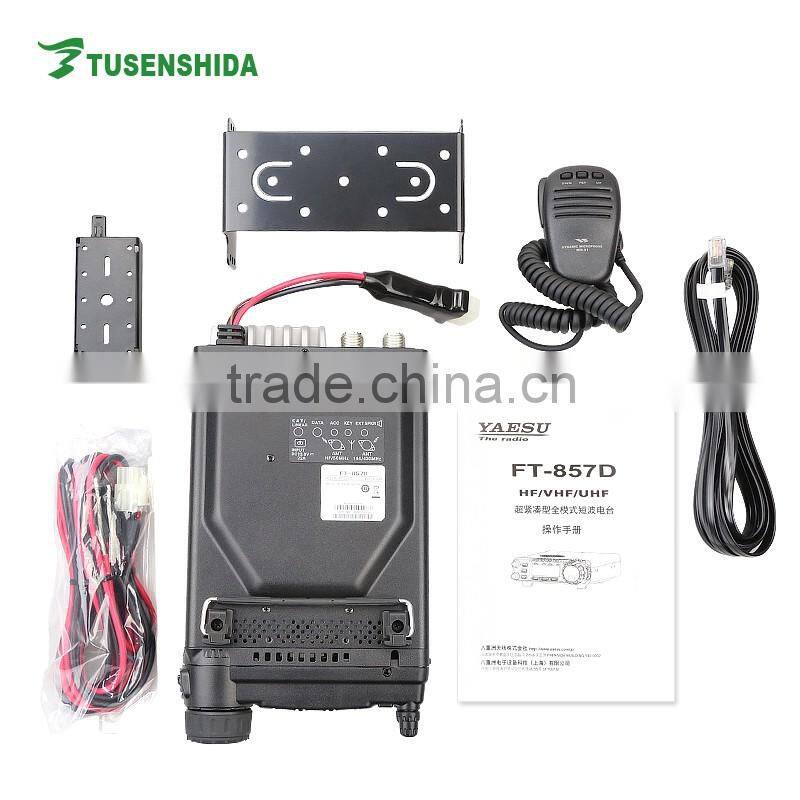

Packing details

1×Host

2×cable lines

2xmounting plate

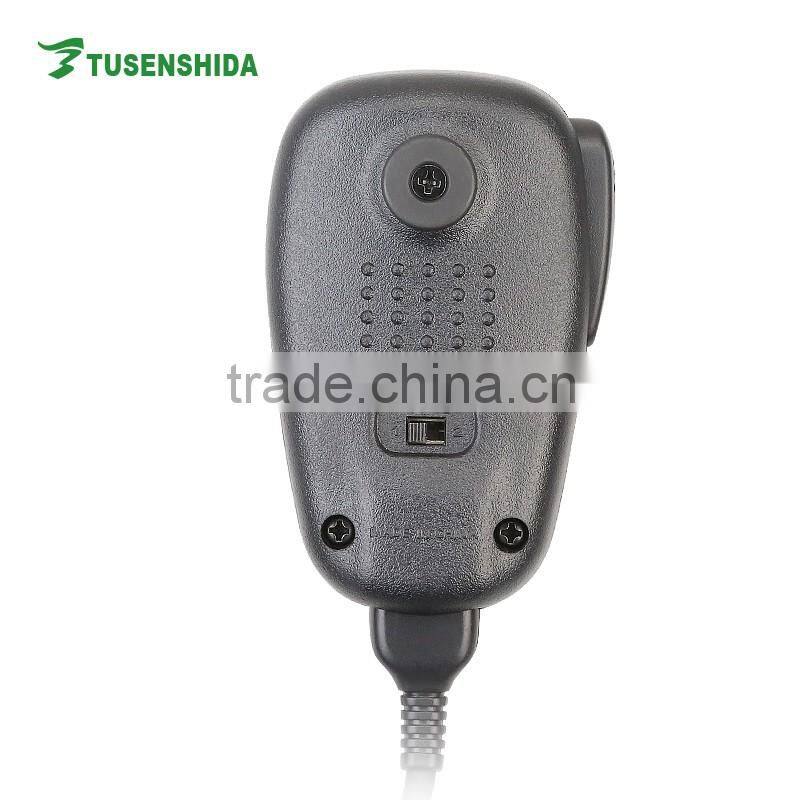

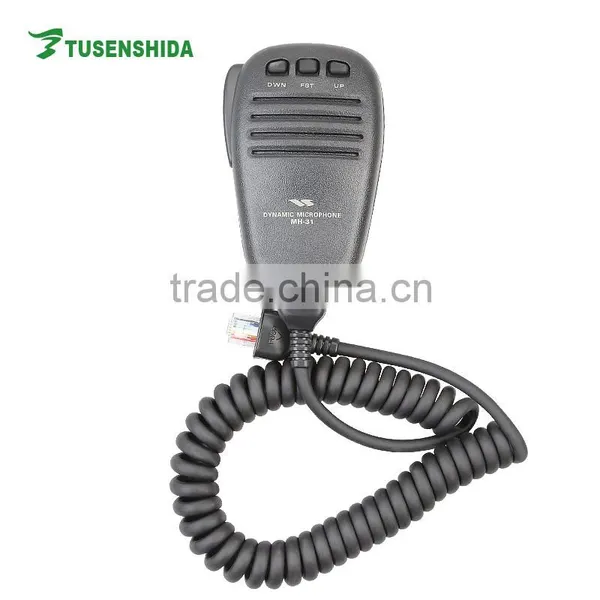

1×microphone

1× EN Use's Manual

Remark: 1pc color box





Our Services

100W Car Radio 200 Channels 2.5ppm Transceiver Y-AESU FT-857D Vehicle Mounted Walkie Talkie

Shipping time

1-2days for sample order,3-5days for bulk order



Customer Service

1.OEM&ODM service offered

2.Sample's fee can be refund after order reached 1000sets.

3.Delivery can be express: DHL,UPS,FedEx,EMS,TNT.



Warranty

Before delivery, we will check the item's quality strictly one by one. Life-warranty for radio body & accessories, please contact us immediately when you get defective,thanks.



Payment terms

Payment:T/T,Western Union,escrow below US$1000 accept Paypal payment term(please do Not believe anybody by Email say our band changed,thank you)
