Home > Consumer Electronics > Two Way Radio > Handheld Two Way Radio > 50W TYT TH-9800 Hot Sell Mobile Car hf Radio Th-9800 Qual Band Transceiver

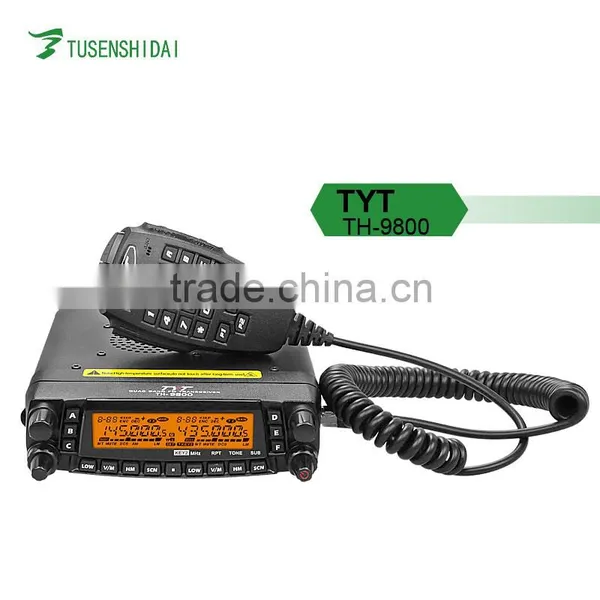

50W TYT TH-9800 Hot Sell Mobile Car hf Radio Th-9800 Qual Band Transceiver

50W TYT TH-9800 Hot Sell Mobile Car hf Radio Th-9800 Qual Band Transceiver thumbnail-1
50W TYT TH-9800 Hot Sell Mobile Car hf Radio Th-9800 Qual Band Transceiver thumbnail-2
50W TYT TH-9800 Hot Sell Mobile Car hf Radio Th-9800 Qual Band Transceiver thumbnail-3
50W TYT TH-9800 Hot Sell Mobile Car hf Radio Th-9800 Qual Band Transceiver thumbnail-4
50W TYT TH-9800 Hot Sell Mobile Car hf Radio Th-9800 Qual Band Transceiver thumbnail-5
50W TYT TH-9800 Hot Sell Mobile Car hf Radio Th-9800 Qual Band Transceiver thumbnail-6
50W TYT TH-9800 Hot Sell Mobile Car hf Radio Th-9800 Qual Band Transceiver photo-1
50W TYT TH-9800 Hot Sell Mobile Car hf Radio Th-9800 Qual Band Transceiver photo-2
50W TYT TH-9800 Hot Sell Mobile Car hf Radio Th-9800 Qual Band Transceiver photo-3
50W TYT TH-9800 Hot Sell Mobile Car hf Radio Th-9800 Qual Band Transceiver photo-4
50W TYT TH-9800 Hot Sell Mobile Car hf Radio Th-9800 Qual Band Transceiver photo-5
50W TYT TH-9800 Hot Sell Mobile Car hf Radio Th-9800 Qual Band Transceiver photo-6
US$ 180 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TYT
Model Number:
TYT TH-9800
Contact Supplier Request Quote Chat Now
Quanzhou Tucson Age Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name TYT
Model Number TYT TH-9800
Type Vehicle Mouted
Dimensions 140*42*168 mm
Frequency Range RX/TX 26-33/47-54/136-174/400-470MHz
Storage Channel 809 Channels
Talk Range 25-35km

50W TYT TH-9800 Hot sell Mobile Car hf Radio th-9800 Qual Band Transceiver

Main Features:

1.CTCSS Tone/DCS Code Operation



2.Various Scanning



3.DTMF Signaling Operation



4.2 Tone & 5 Tone Signaling Operation



5.Auto Range Transponder System(ARTS) Operation



6. V+U/V+V/U+U Dual Band Operation



7. Automatic Repeater Shift(ARS)



8. 800 Memory channels



9. Quad Band Operation: 29/50/144/430MHz



10.Ultra-size LCD dual display screen

50W TYT TH-9800 Hot sell Mobile Car hf Radio th-9800 Qual Band Transceiver

Product Description

50W TYT TH-9800 Hot sell Mobile Car hf Radio th-9800 Qual Band Transceiver

General
Frequency range Left Band Right Band
RX 26.000-33.000MHz, 47.000-54.000MHz,
108.000-180.000MHz, 320.000-512.000MHz
750.000-950.000MHz(except cell phone) 		134.000-180.000MHz, 400.000-512.000MHz
TX 26.000-33.000MHz, 47.000-54.000MHz
134.000-174.000MHz, 400.000-480.000MHz 		134.000-174.000MHz, 400.000-480.000MHz
Modulation mode F3E(FM)
Antenna impedance 50Ω
Channel steps 2.5/5/6.25/7.5/8.33/10/12.5/15/25/30/50/100KHz
Rated voltage 13.8V DC ±15%
Operating Temperature -20°C ~ + 60°C
Frequency stability 5ppm
Current Consumption RX:0.5A(Squelched) TX:8.5A
Weight 1.2kg
Transmitting
Output power 50/20/10/5W(29/50/144MHz)
40/20/10/5W(430MHz)
Maximum Deviation ±5KHz
Suprious Radiation <-60dB(29MHz:<-50dB)
Modulation distortion <3%
Microphone Impedance 2kΩ
Receiving
Intermediate Frequencies 49.95KHz/450KHz(Left band) 38.85KHz/450KHz(Right band)
Sensitivity(for 12dB SINAD) <0.2μV
Squelch Selectivity <0.6μV
Selective 12KHz/30KHz
Maximum AF Output 2W @ 8Ω for 5%THD





Certifications

 50W TYT TH-9800 Hot sell Mobile Car hf Radio th-9800 Qual Band Transceiver





Packaging & Shipping

 50W TYT TH-9800 Hot sell Mobile Car hf Radio th-9800 Qual Band Transceiver50W TYT TH-9800 Hot sell Mobile Car hf Radio th-9800 Qual Band Transceiver

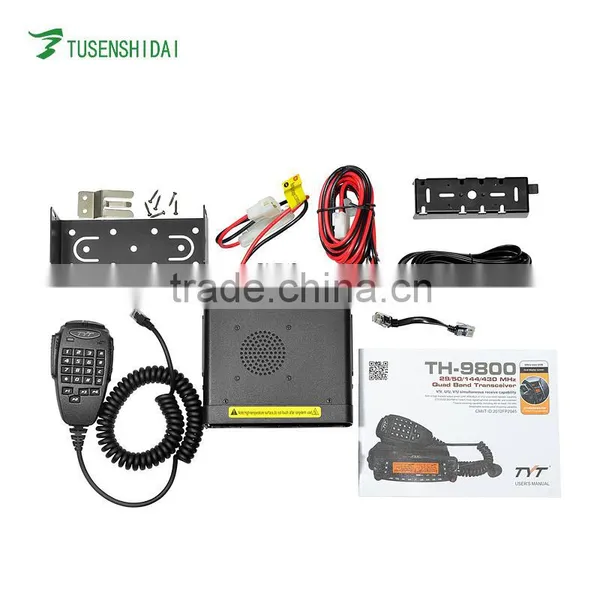

1×Transceiver

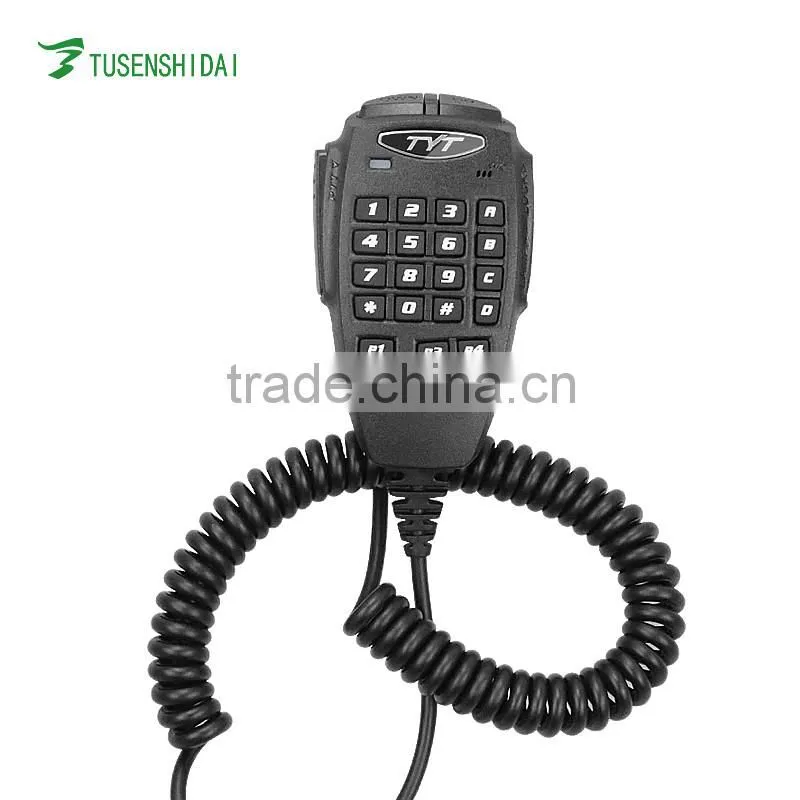

1×Microphone(with DTMF keypad)

1×Mobile Mounting bracket

1×DC power cable with fuse holder

1×Hardware kits

Remark: 1pc color box, 10pcs per carton

Carton size:45*52*37cm



Our Services

50W TYT TH-9800 Hot sell Mobile Car hf Radio th-9800 Qual Band Transceiver50W TYT TH-9800 Hot sell Mobile Car hf Radio th-9800 Qual Band Transceiver

Shipping terms

1-2days for sample order,3-5days for bulk order



Customer Service

1.OEM&ODM service offered

2.Sample's fee can be refund after order reached 1000sets.

3.Delivery can be express: DHL,UPS,FedEx,EMS,TNT.



Warranty

Before delivery, we will check the item's quality strictly one by one. Life-warranty for radio body & accessories, please contact us immediately when you get defective,thanks.



Payment terms

Payment:T/T,Western Union,escrow below US$1000 accept Paypal payment term(please do Not believe anybody by Email say our band changed,thank you)





Contact Me

 50W TYT TH-9800 Hot sell Mobile Car hf Radio th-9800 Qual Band Transceiver



FAQ

Q1:What is your payment terms?

A: We accept the T/T,Western Union,Paypal and so on.



Q2:When can you arrange the shipment after I have placed and order?

A:3-5days for sample order,7-10days for bulk order.



Q3:Could you supply the sample for me to test first?

A:Yes,we are very willing to send the sample first,however,the customer should pay the cost.



Q4:What is the MOQ of your products.

A:Usually,for radio is 1pc usually.



Q5:Can you accept customized?

A:OEM&ODM are welcomed.





50W TYT TH-9800 Hot sell Mobile Car hf Radio th-9800 Qual Band Transceiver
