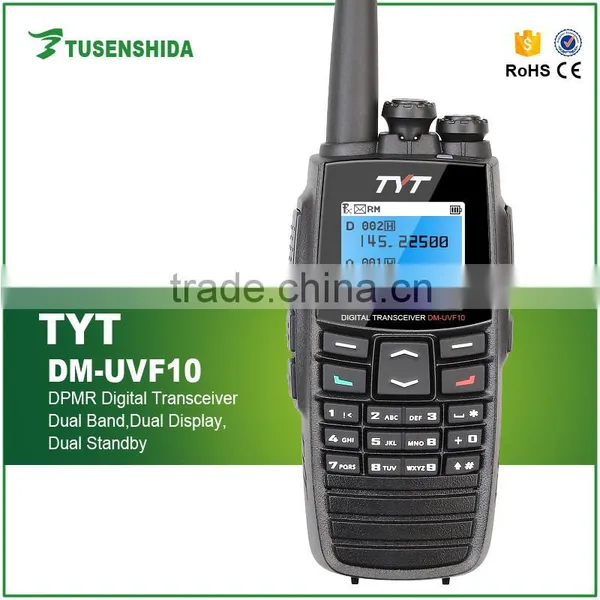

HOT!!! TYT DPMR Dual Band Transceiver DM-UVF10 Perfect Digital Walkie Talkie
1) DTMF function 2) VOX function
3) Emergency Alarm 4) CTCSS/DCS auto-scan
5) Digital/Analog switch 6) Color screen displa
7) Dual display Dual standby 8) Voice scrambler
9) Message TX/RX(Digital only) 10) English/Chinese standby prompt
11) Private call, group call, all call 12) High/Low power selectable
13) Battery save 14) Squelch level adjustment
15) Remote kill stun 16) Backlight brightness setting
17) Busy channel lockout 18) Programmable multifunction side-key
19) Digital dual-band 20) TOT / Keypad lock / Scan Mode / BeepTone
21) Contact list editing, storing 22) VFO mode Channel mode MR mod
23) Analog/digital/Mixer-Analog/Mixer-digital
HOT!!! TYT DPMR Dual Band Transceiver DM-UVF10 Perfect Digital Walkie Talkie
| Model | DM-UVF10 |
| Frequency Range | VHF+UHF:136-174/400-470MHz |
| Channel capacity | 256 |
| Output power | 5W |
| Operating Voltage | 7.4V |
| Antenna Impedance | 50 ohm |
| Work mode | Simplex |
| Working Temperature | -30°C—60°C |
| Frequency Spacing | 12.5/25kHz |
| Battery capacity | 1800mAh |
| Color | Black |
| Dimension(Exclude antenna) | 125x61x33mm |
| Weight(Include Battery) | 249g |
| Specification | |
| Modulation type | 16k¢F3E,11k¢F3E |
| Max Fr. deviation | <5kHz/<2.5kHz |
| Adjacent Ch. power | >=65dB/>=60db |
| Spurious radiation | <7µW |
| Pre-emphasis characteristics | 6dB |
| TX current | <=1.6A(5W) |
| CTCSS/DCS deviation | 0.5kHz±0.1kHz,0.3kHz±0.1kHz |
| Inter mediation sensitivity | 1-10mV |
| Inter mediation distortion | <5% |
| 4FSK distortion | <3% |
| Receiver | |
| Receiving sensitivity | -122dB(12dB SINAD) |
| Audio power | 1W |
| Audio distortion | <=5% |
| Block | >=85dB |
| Inter-modulation | >=65db >=55dB |
| Adjacent Ch. selectivity | >=65dB >=65db |
| Spurious rejection | >=65db |
HOT!!! TYT DPMR Dual Band Transceiver DM-UVF10 Perfect Digital Walkie Talkie

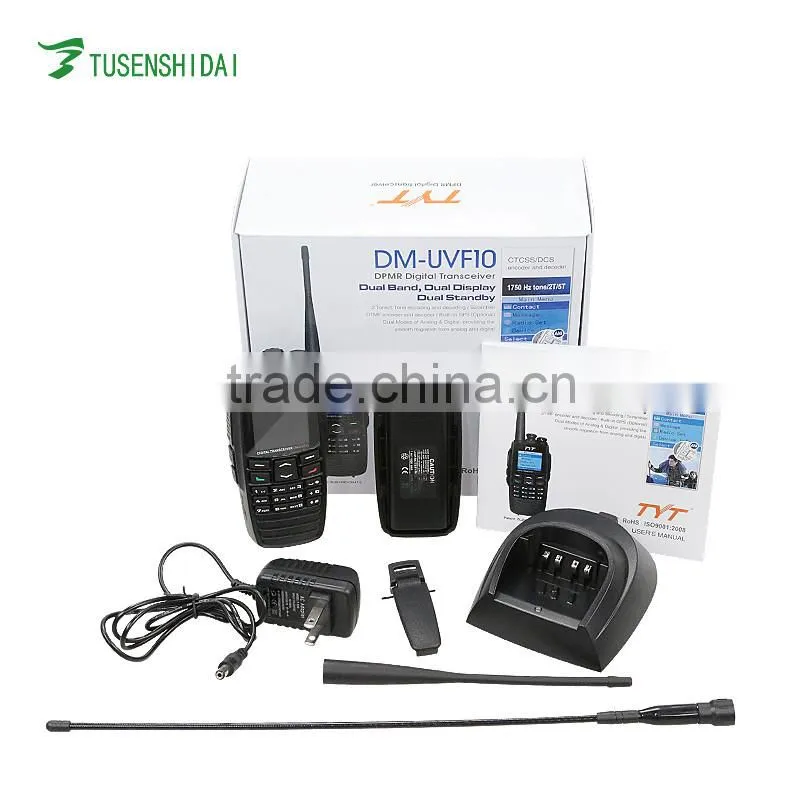

Packing Items:
1×Host
2×Antenna(one short,one longer)
1×7.2V DC/2200MAh Li-ion battery pack
1×Belt Clip
1× EN Use’s Manual
Remark: 1pc color box
We are authorized by TYT factory.
What we can provide you are superior quality and favorable price.
Shipping time
1-2days for sample order,3-5days for bulk order
Customer Service
1.OEM&ODM service offered
2.Sample's fee can be refund after order reached 1000sets.
3.Delivery can be express: DHL,UPS,FedEx,EMS,TNT.
Warranty
Before delivery, we will check the item's quality strictly one by one. Life-warranty for radio body & accessories, please contact us immediately when you get defective,thanks.
Payment terms
Payment:T/T,Western Union,escrow below US$1000 accept Paypal payment term(please do Not believe anybody by Email say our band changed,thank you)
