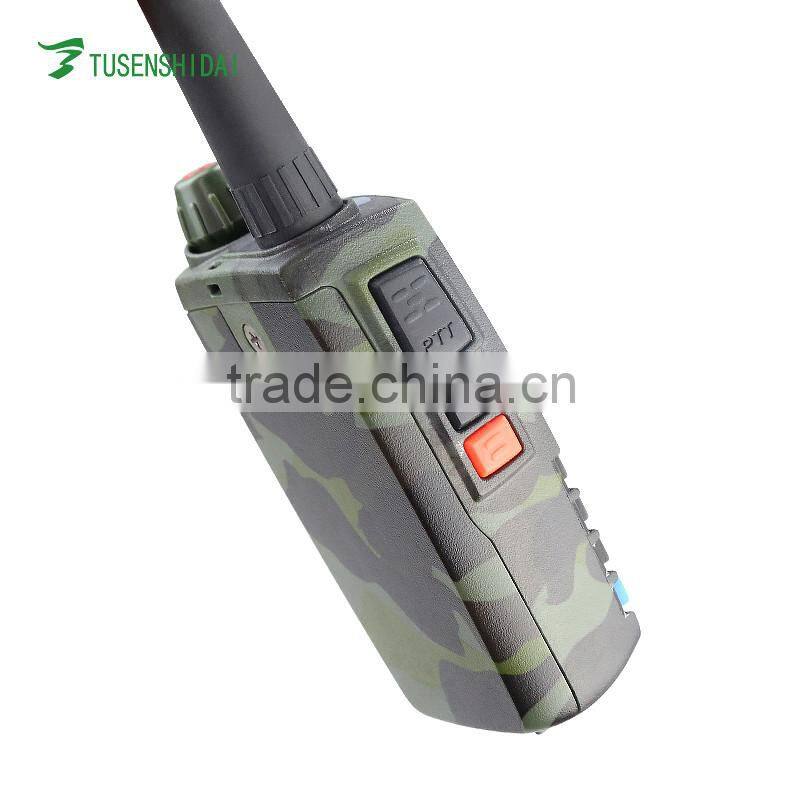

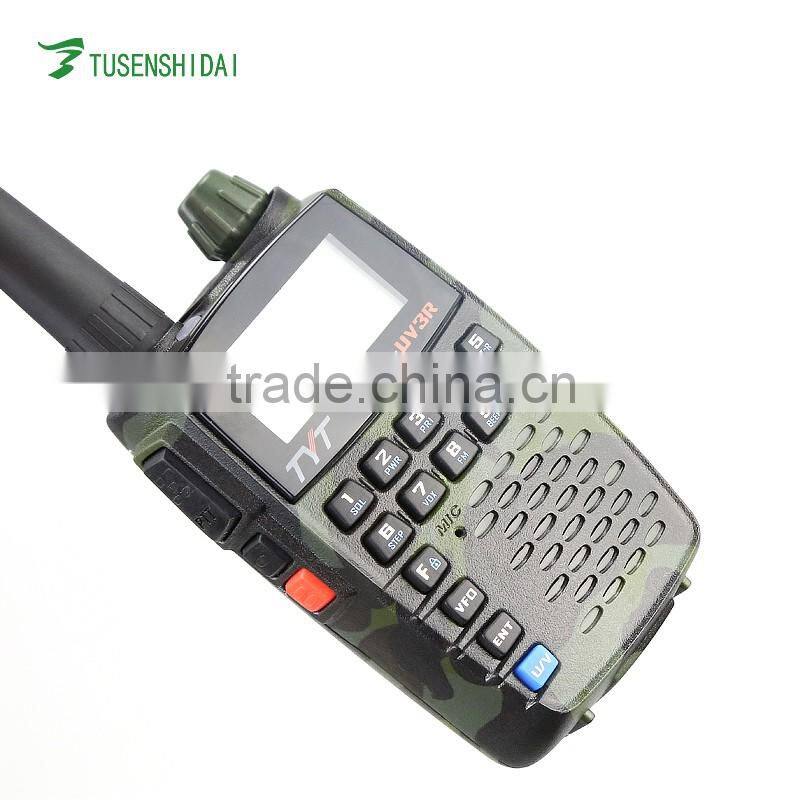

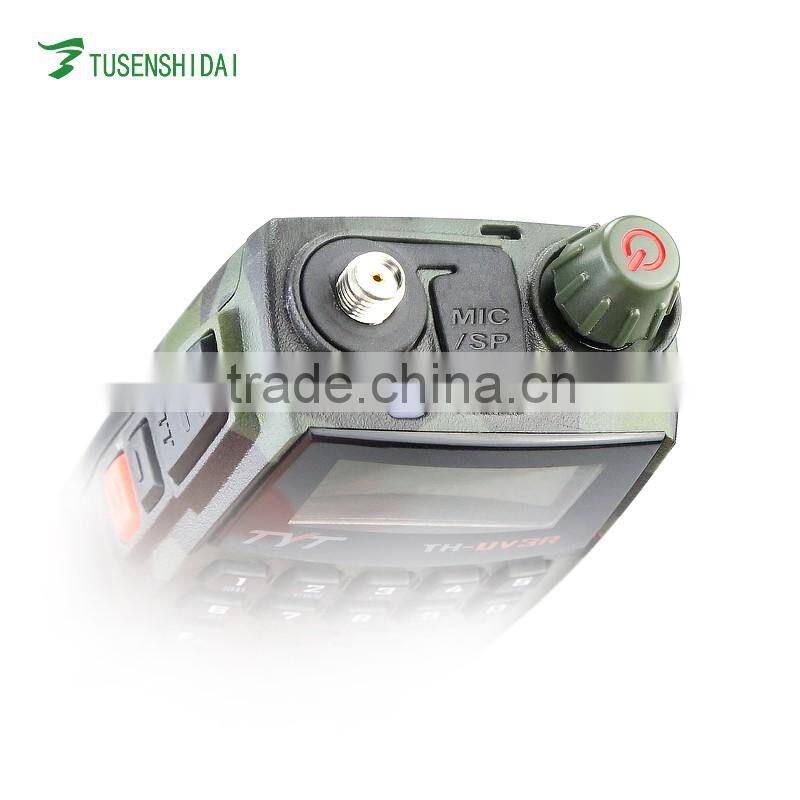

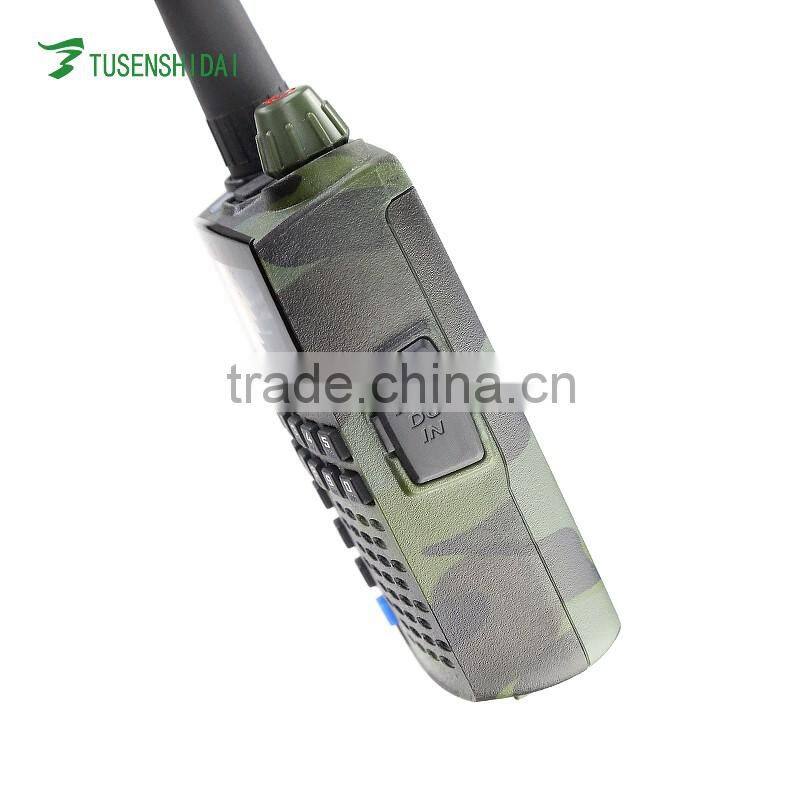

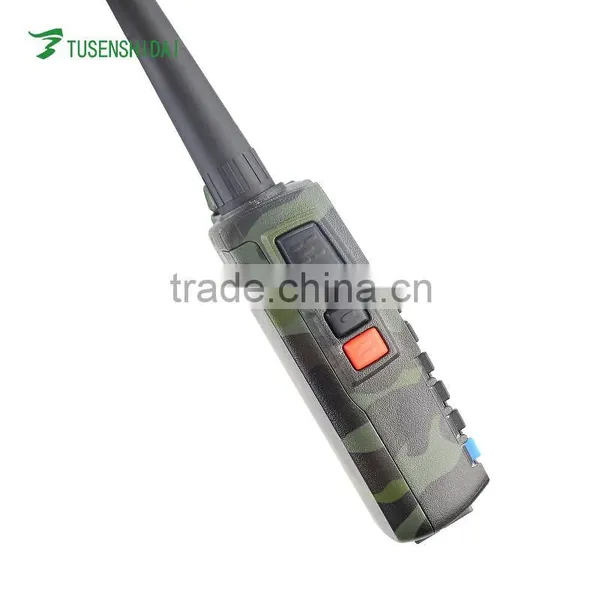

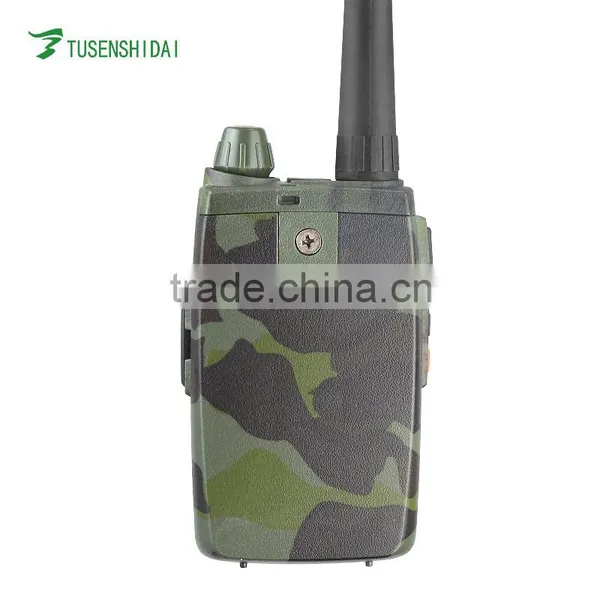

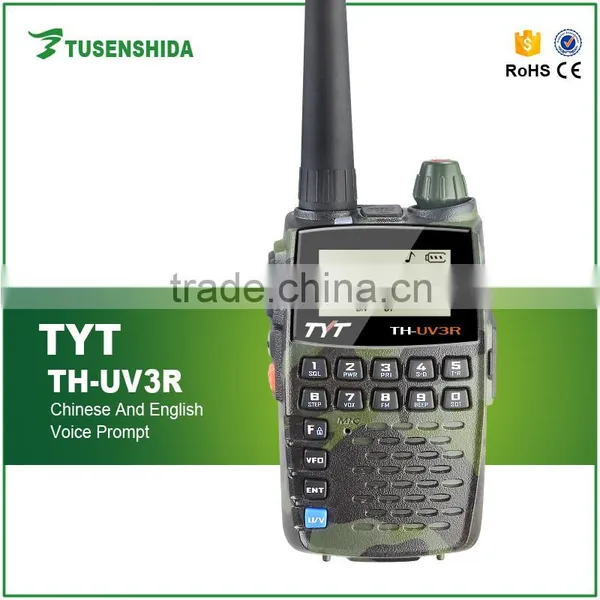

TYT TH-UV3R Mini Handheld Transceiver 2W 136-174/400-470MHz Walkie Talkie
FEATURES:
· Dual band,dual display and dual standby
· Compact and easy to operate
· Chinese and English Voice prompt
· Voice scrambler
· 2.5 Watts High Power -- 0.8 Watts Low Power
· Channel name editing
· Dual watching function
· VOX function
· CTCSS/DCS scanning
· Wide/narrow bandwidth selectable
· Full frequency range design
· Wide frequency coverage
· 1750Hz tone
· Battery capacity management
· Power protection function
· Programmable multifunction key
· FM radio and 25 radio stations memory
TYT TH-UV3R Mini Handheld Transceiver 2W 136-174/400-470MHz Walkie Talkie
| Item number | TH-UV3R |
| General | |
| Frequency Range | 70-108MHz(FM Receive only) |
| 136-174MHz/245-246MHz | |
| 245-246MHz/400-470MHz | |
| 136-174MHz/400-470MHz | |
| Channel No. | 108 |
| Frequency Stability | ±2.5ppm |
| Antenna | High gain antenna |
| Antenna Impedance | 50Ω |
| Operating Voltage | DC 3.7V |
| Mode of operation | Simple or semi-duplex |
| Dimension(W x H x D) | 94 x 48 x 24 mm |
| Weight | 105g(not including battery, antenna) |
| Transmitter | |
| Output power | ≥2W(H) ≥0.5W(L) |
| Modulation Mode | 16kΦF3E / 11kΦF3E |
| Maximum deviation | <5kHz(Wide) / <2.5kHz(Narrow) |
| Spurious Radiation | <7μW |
| Adjacent Ch. power | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Pre-emphasis characteristics | 6dB |
| Current | ≤1.6A(5W) |
| CTCSS/DCS deviation | 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
| Intermediation sensitivity | 8-12mv |
| Intermediation distortion | <10% |
| Receiver | |
| RF Sensitivity | -122dbm(12db SINAD) |
| Audio power | ≥0.5W |
| Audio Distortion | ≤10% |
| Intermediation | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Selectivity | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Spurious Rejection | ≤-65dB |
| Blocking | ≥85dBuv/m |

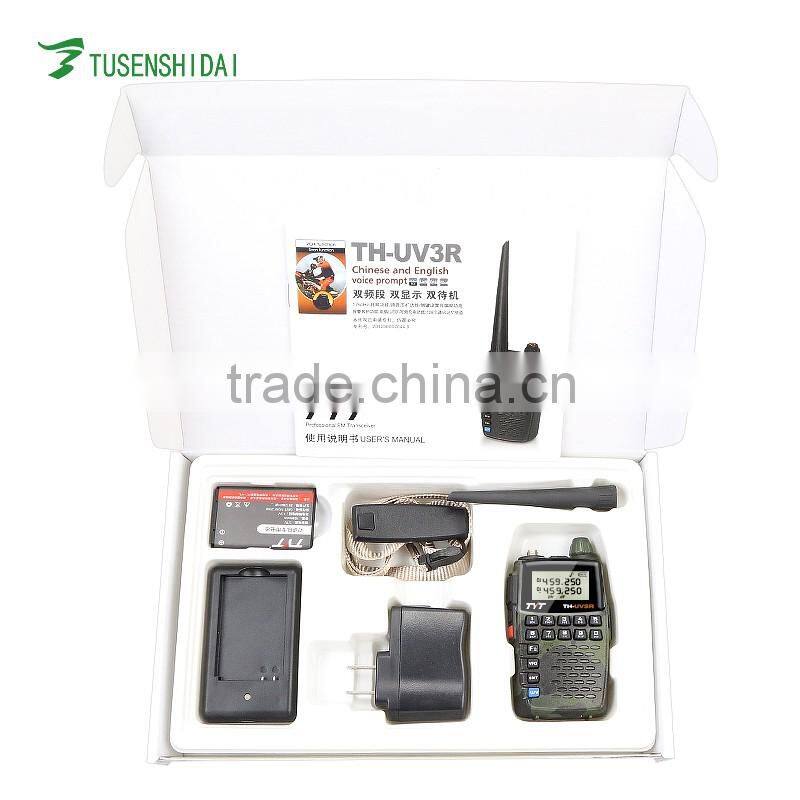

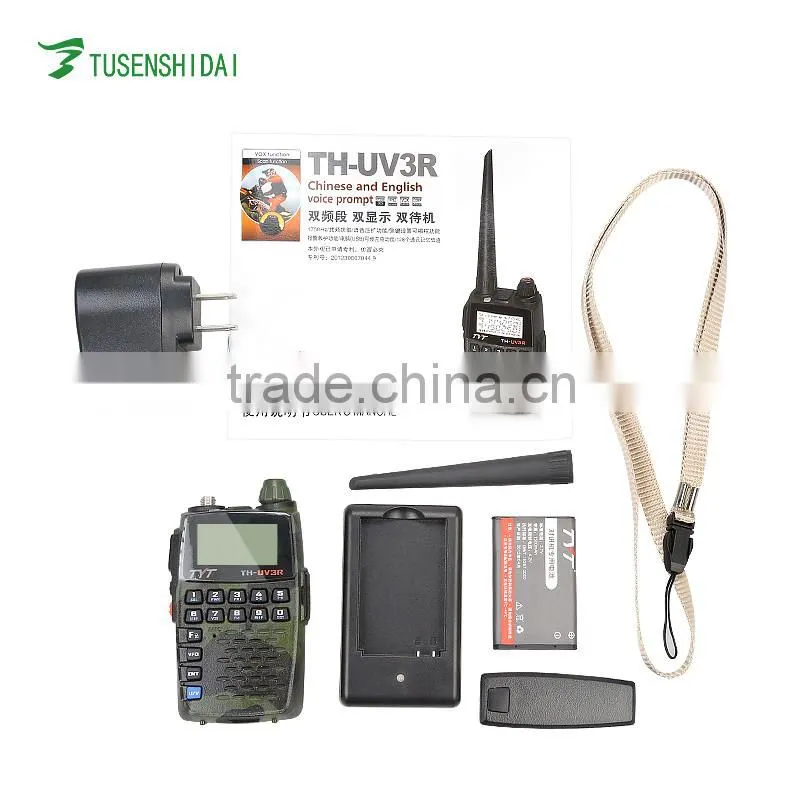

TYT TH-UV3R Mini Handheld Transceiver 2W 136-174/400-470MHz Walkie Talkie
1 x Hoster

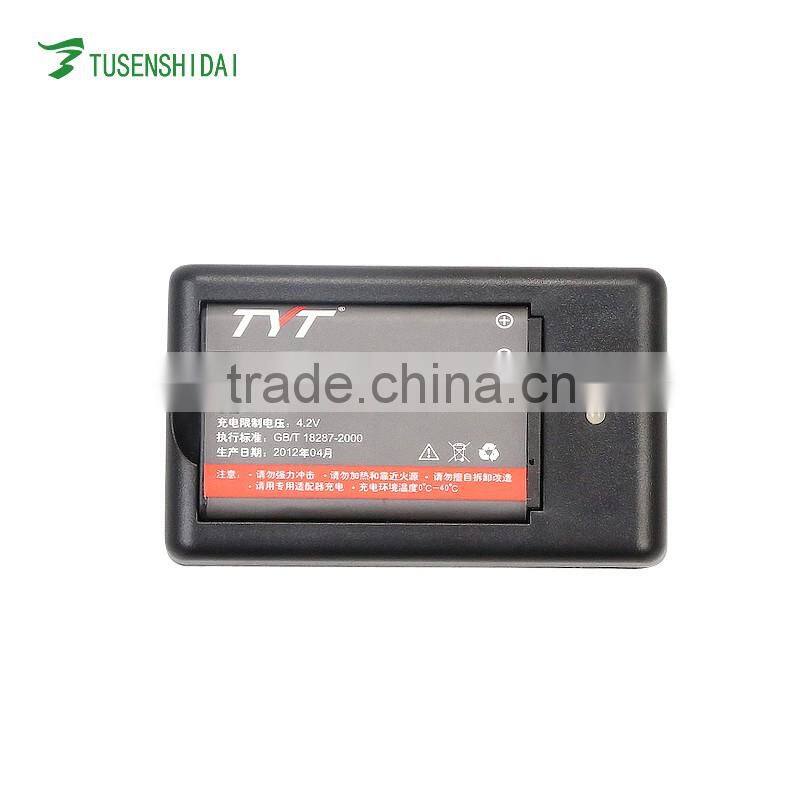

1 x 1500mAh Li-ion Battery
1 x Antenna
1 x Belt Clip
1 x Hang Strap
1 x Charger Pack
1 x Use's Manual
We are authorized by TYT factory.
What we can provide you are superior quality and favorable price.
Shipping time
1-2days for sample order,3-5days for bulk order
Customer Service
1.OEM&ODM service offered
2.Sample's fee can be refund after order reached 1000sets.
3.Delivery can be express: DHL,UPS,FedEx,EMS,TNT.
Warranty
Before delivery, we will check the item's quality strictly one by one. Life-warranty for radio body & accessories, please contact us immediately when you get defective,thanks.
Payment terms
Payment:T/T,Western Union,escrow below US$1000 accept Paypal payment term(please do Not believe anybody by Email say our band changed,thank you)
