AS399x LEO compatible UHF RFID Reader Module AS3992 + 5dBi Antenna + USB cable + Power Adapter EPC Class 1 Gen 2 TTL Uart PCB

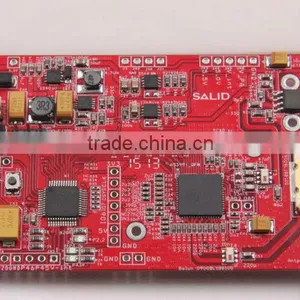

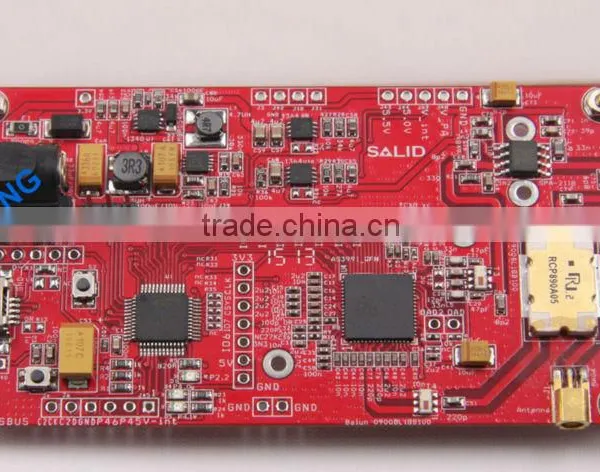

AS3992 UHF RFID Reader Module

5dBi antenna + USB cable + power adapter

Features

ISO18000-6C (EPC Gen2) full protocol support

ISO18000-6A,B compatibility in direct mode

2 versions for interface: USB and Uart / TTL

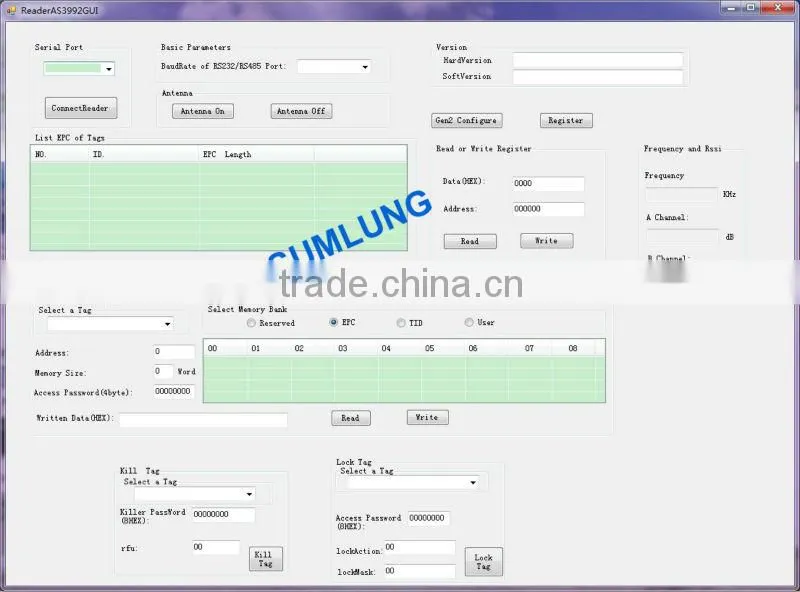

Multiple languages SDK development kit, convenient system access
Modular design, secondary development


Specifications
Operating Frequency:         America: 902 ~ 928MHz;    Europe: 865 ~ 868MHz

Protocol:                               ISO18000-6C (EPC GEN2), compatible with ISO18000-6A / B
Antenna:                               5 dBi directional antenna or ceramic antenna, optional
Power:                                  Max. 20dBm
Read Range:                       < 6 meters (for 8dBi Laird S9028PCL directional antenna)
Read Time:                         < 6 ms  (Multi-tag 64 ID number )
Modulation:                          ASK or PR-ASK
Antenna Interface:               MMCX
Interface:                              USB or TTL/Uart

Operating Voltage:                   DC 3.3 V
Power consumption:                1.5 ~ 2 W
Operating Temperature:          -20°C ~ 80°C
Storage Temperature:             -40°C ~ 125°C
Humidity:                                  20% ~ 95% (non-condensing)
Dimensions:                             90 * 49 * 0.51 mm
Antenna PCB Size(5DBi):        53 * 41 * 2 mm


Applications
Vehicle Management: parking, highway toll collection, customs clearance, automatic

Weighing Management of Production Lines: intelligent sorting lines of products
Warehouse Management: Automatically records of goods
Logistics: container management, pallet management, asset tracking, etc.
Door / Gate Access Control in school, factory

Fixed Reader
Portal
Car Access
Hand held
Embeddable

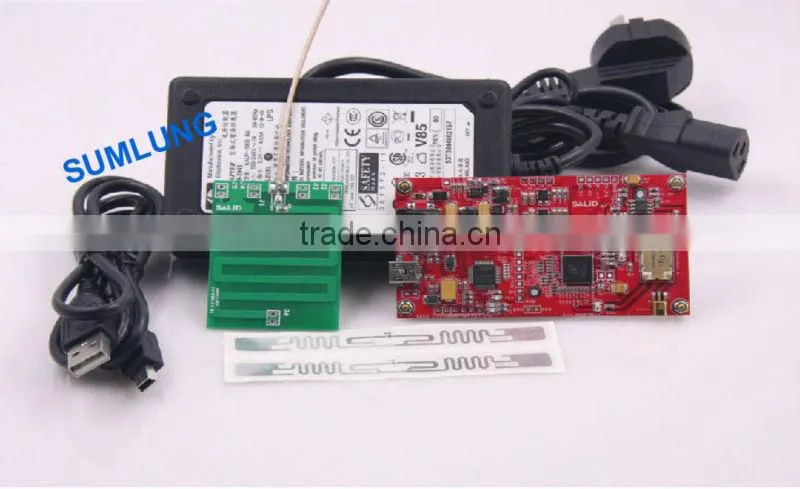

Package includes

1*     AS3992 UHF RFID Reader Module, USB or Uart
1 *    5dBi Antenna
1 *    Power Adapter

1 *    USB cable
2 *    UHF EPC  GEN2 Tag
