AET65 MCU Smart Card Reader and Writer With Fingerprint Sensor and SAM Slot RFID Biotechnology for Access Control Secure Payment
US$ 58 - 102.9
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SUMLUNG ACS
Model Number:
SL-AET65
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Shenzhen Zhuhai Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RS232 NFC Reader Writer ACR122S With SAM Slot Offer SDK IC Card NFC Tag Sticker Contactless RFID 13.56MHz ISO14443 Type A&B POSUS$ 38 - 65MOQ: 1 Piece -
Desktop USB NFC Readers and Writer ACR1251 With SAM Slot Peer-to-Peer P2P Offer SDK IC Card NFC Tag Sticker 13.56MHz ISO14443A&BUS$ 39 - 50MOQ: 1 Piece
-
Mini USB NFC Reader and Writer ACR122T + SDK + NFC Tag IC Card 13.56MHz Portable RFID Programmer Smart RFID Label Keyfob TokenUS$ 39 - 57MOQ: 1 Piece
-
Wiegand 26 RFID Reader for Access Control Support 13.56MHz ISO14443A IC Cards Keyfob NFC Tag Contactless Electronic LockUS$ 7.5 - 15.5MOQ: 1 Piece
-
RFID Blocking Wallet, Credit Card Coin Wallet. RFID Blocker Unisex Wallet Purse Card Coin Holder OrganizerNegotiableMOQ: 50 Pieces
Place of Origin
Guangdong, China
Brand Name
SUMLUNG ACS
Model Number
SL-AET65

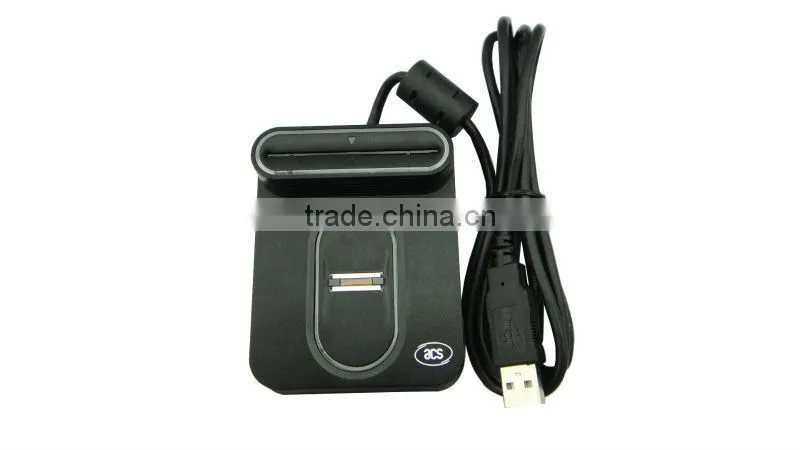

Contact Smart Card Reader & Writer AET65
with Fingerprint Sensor
for RFID MCU cards and ISO-7816 Class A, B and C smart cards
Overview
The AET65 Smart Card Reader with Fingerprint Sensor guarantees security and convenience in a variety of applications. Combining the core of ACS ACR38-SAM contact smart card reader and Authentec's swipe fingerprint sensor in a single device, it creates a more cost-efficient and simplified integration of biometric technology in applications where the accuracy of biometric authentication is necessary to ensure a high level of security.
The AET65 elevates the:
-
Security: It requires of a user something he has (smart card), something he knows (PIN/password) and something he is (fingerprint), before enabling any transaction; limits fingerprint extraction and matching to itself (preventing security attacks associated with PCs); comes with a secure access module (SAM); and offers support for third-party algorithms.

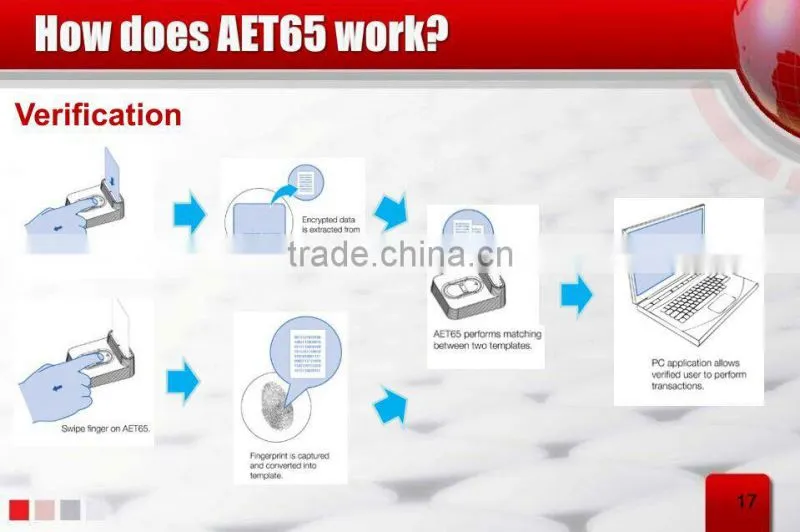

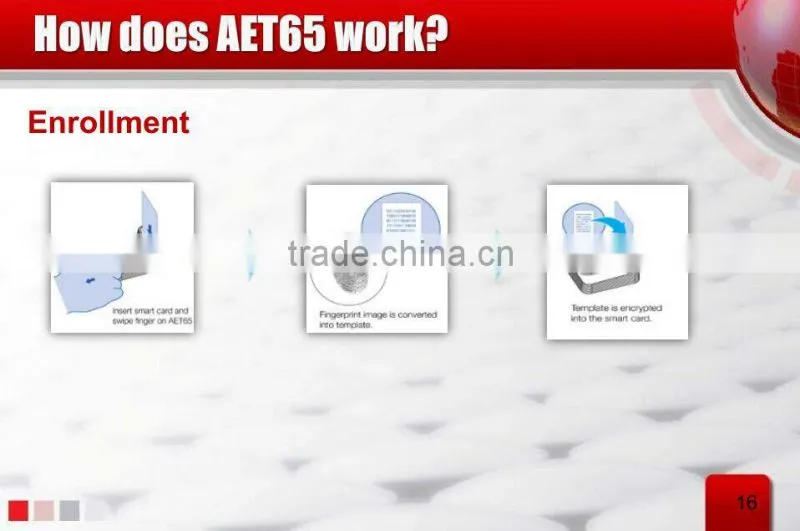

- Simplicity: It does away with databases, servers or network connectivity. Instead, fingerprint templates are stored and encrypted in the smart card, reducing operation components into three (local PC/remote server applications, contact smart cards, and the AET65). Even developers without an in-depth knowledge of biometrics can integrate fingerprint authentication into smart card-based applications
With these features, the AET65 makes integration of secure biometric authentication simple and exchange of information intuitive, and fingerprint and smart card authentication hassle-free.

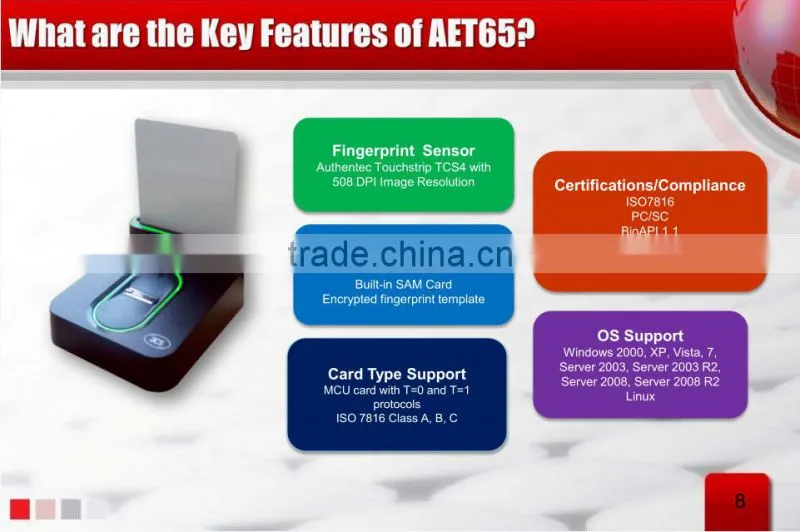

Features
- Integrated fingerprint scanner and smart card reader
- Full-speed USB interface
- Encrypted fingerprint template stored inside smart cards
- AET65 contact smart card reader:
- Compliant with PC/SC specification
- Read/write speed up to 250 kbps
- Supports all MCU card with T=0 or T=1 protocols
- Supports ISO 7816 Class A, B and C (5V, 3V and 1.8V) cards
- ISO 7816 Compliant SAM Slot
-
Fingerprint scanner:

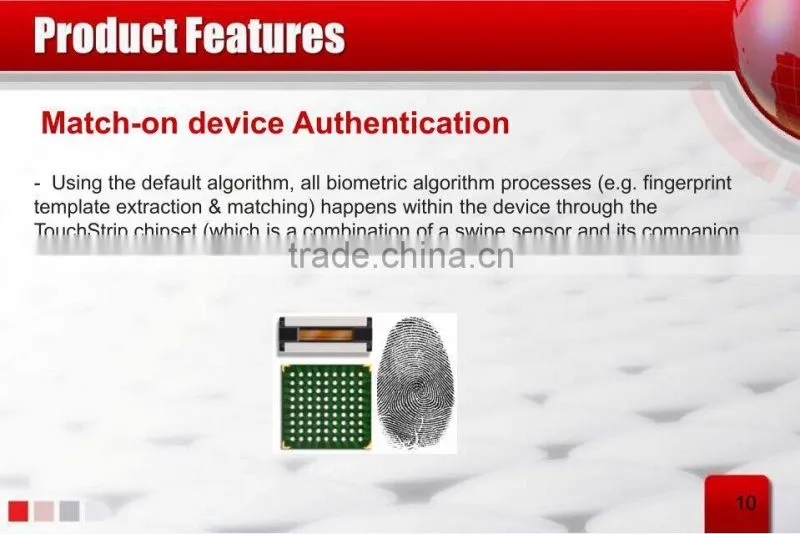

- Match-on reader: Template extraction and matching algorithms run within the device itself, not in the PC (Using default fingerprint algorithm)

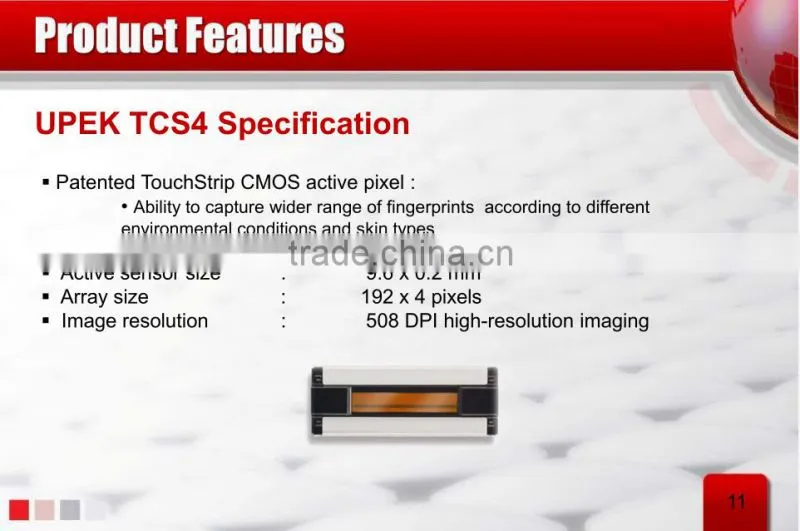

- UPEK TCS4-TCD50 swipe fingerprint sensor
- Swipe speed: up to 40 cm/sec (15 in/sec)
- Active sensor size: 9.6 mm x 0.2 mm
- High-resolution: 508 DPI
- Array size: 192 x 4 pixels
- Supports image optimization and filtering
- Utilizes CMOS active capacitive pixel-sensing technology, resulting to high-quality fingerprint images in any environment
- Compliant with BioAPI 1.1 specification and Windows Biometric Framework
- Supports several fingerprint algorithms such as Authentec and other 3rd-Party Algorithms
Applications
- e-Government
- Banking & Payment
- Network Security
- Access Control
- Public Key Infrastructure
Tech Specifications
| Dimensions | 85.1 mm (L) x 70.1 mm (W) x 35.5 mm (H) |
| Weight | 194 g |
| Interface | USB Full Speed |
| Supply Voltage | Regulated 5V DC |
| Supply Current | max. 50 mA |
| Operating Temperature | 0 - 50°C |
| CLK Frequency | 4 MHz |
| Smart Card Interface Support |
|
| Fingerprint Sensor |
|
| Compliance / Certifications |
|
| Operating System Support |
|
Packing
1 * AET65 Smart Card Reader with Fingerprint Sensor, USB interface
1 * CD (SDK, drivers, datasheets, user manual, etc..)
