Home > Consumer Electronics > Commerce & Finance Electronics > POS Terminal & Cash Register > RS232 NFC Reader Writer ACR122S With SAM Slot Offer SDK IC Card NFC Tag Sticker Contactless RFID 13.56MHz ISO14443 Type A&B POS

RS232 NFC Reader Writer ACR122S With SAM Slot Offer SDK IC Card NFC Tag Sticker Contactless RFID 13.56MHz ISO14443 Type A&B POS

Name: RS232 NFC Reader Writer ACR122S With SAM Slot Offer SDK IC Card NFC Tag Sticker Contactless RFID 13.56MHz ISO14443 Type A&B POS
Brand: SUMLUNG ACS
SKU: 108596089
Availability: InStock

RS232 NFC Reader Writer ACR122S With SAM Slot Offer SDK IC Card NFC Tag Sticker Contactless RFID 13.56MHz ISO14443 Type A&B POS thumbnail-1

RS232 NFC Reader Writer ACR122S With SAM Slot Offer SDK IC Card NFC Tag Sticker Contactless RFID 13.56MHz ISO14443 Type A&B POS photo-1

US$ 38 - 65 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

SUMLUNG ACS

Model Number:

SL-ACR122S

Contact Supplier Request Quote Chat Now

Shanghai Sumlung Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Ningbo Shenzhen Zhuhai Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name SUMLUNG ACS

Model Number SL-ACR122S

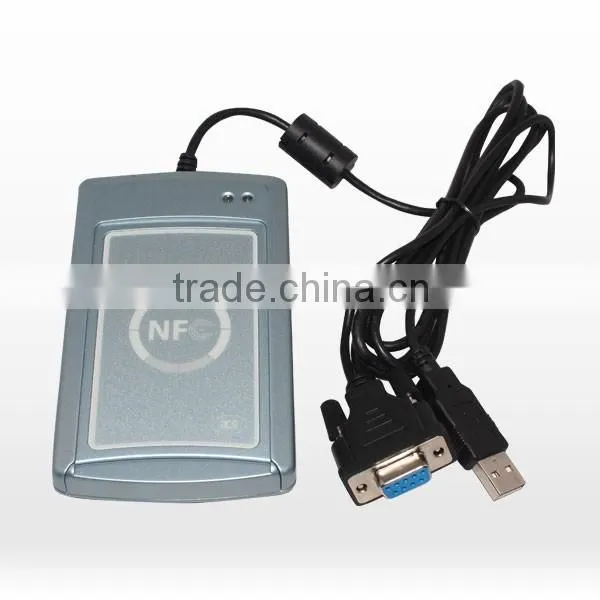

RS232 interface NFC Reader & Writer ACR122S

+ SDK, IC Card , NFC Tag

RFID 13.56MHz ISO14443 Type A&B

Overview

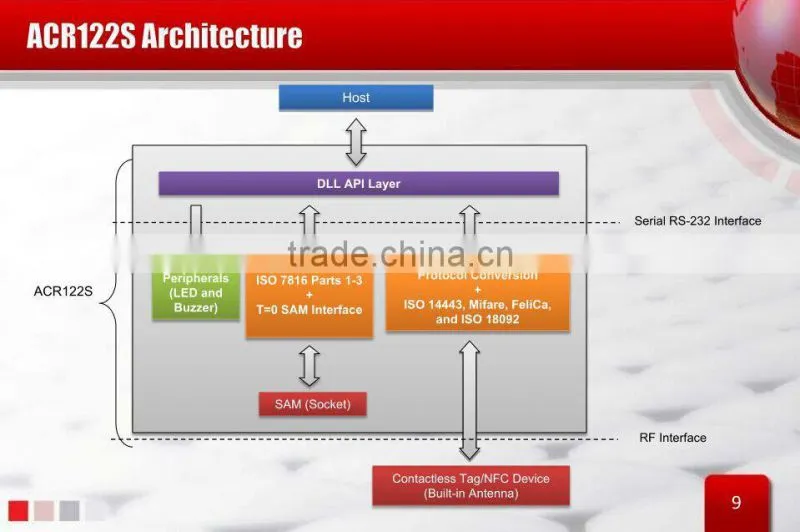

This ACR122S is a serial NFC reader and writer that comes with a built-in ISO 7816 SAM slot for enhanced security, plus a buzzer and two LEDs for rich user interaction. The reader can also read and write faster and more efficiently by making use of up to 424 Kbps for tag access. The proximity operating distance of ACR122S is up to 50mm, depending on the type of tag in use. ACR122S uses a serial port for communication which allows for greater flexibility of device integration. For example, a vending machine, parking meter or retail self-service terminal may need direct Serial Port COM (RS232) communication with the NFC reader. No device driver is required and an available USB port is required for power supply only.

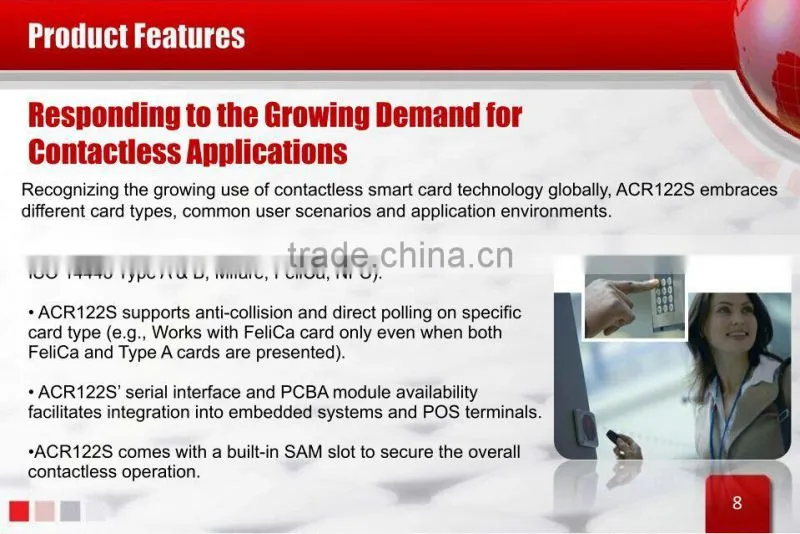

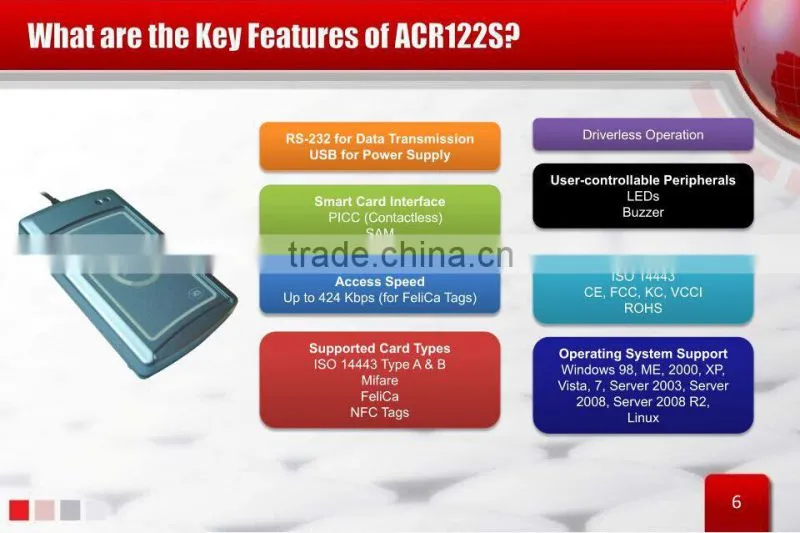

Features

Serial RS-232 Interface: Baud Rate = 115200 bps, 8-N-1
USB interface for power supply
CCID-like fram format (Binary format)
Smart Card Reader:
- Read/Write speed of up to 424 kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
- Support for ISO 14443 Part 4 Type A and B cards, 1K S50, 4K S70, Ultralight, FeliCa, and all four types of NFC (ISO/IEC 18092 tags)
- Built-in anti-collision feature (only one tag is accessed at any time)
- ISO 7816-compliant SAM slot
Built-in Peripherals:
- Two user-controllable LEDs
- User-controllable buzzer

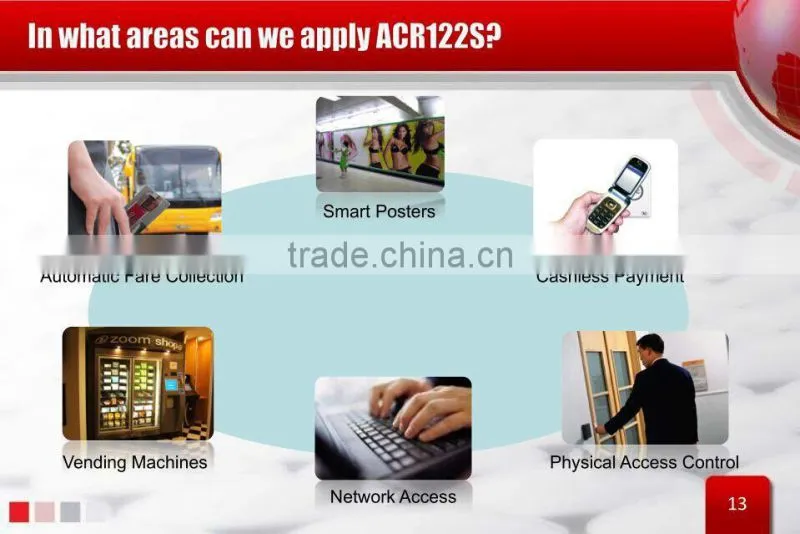

Applications

e-Government
Banking & Payment
Network Security
Access Control
e-Purse & Loyalty
Transportation

Tech Specifications

Dimensions	120.5 mm (L) x 72 mm (W) x 20.4 mm (H)
Weight	148 g
Interface	RS232 for data communication, USB for power transmission
Operating Distance	Up to 50 mm (depends on the tag type)
Supply Voltage	Regulated 5V DC
Supply Current	200 mA (operating); 50 mA (standby); 100 mA (normal)
Operating Temperature	0 - 50 °C
Operating Frequency	13.56 MHz
Smart Card Interface Support	ISO14443 Type A & B MF1 1K S50, 4K S70, Ultralight, Plus FeliCa DESFire 4 types of NFC (ISO/IEC18092) tags, NTAG203, NTAG213, NTAG216
Compliance / Certifications	ISO 14443, CE, FCC, KC, VCCI, RoHS
Operating System Support	Win 98, Win ME, Win 2000, Win XP, Win Vista, Win 7, Win Server 2003, Win Server 2008 Win XP x64, Win Vista x64, Win 7 x64, Win Server 2003 x64, Win Server 2008 x64, Win Server 2008 R2 x64 Linux
