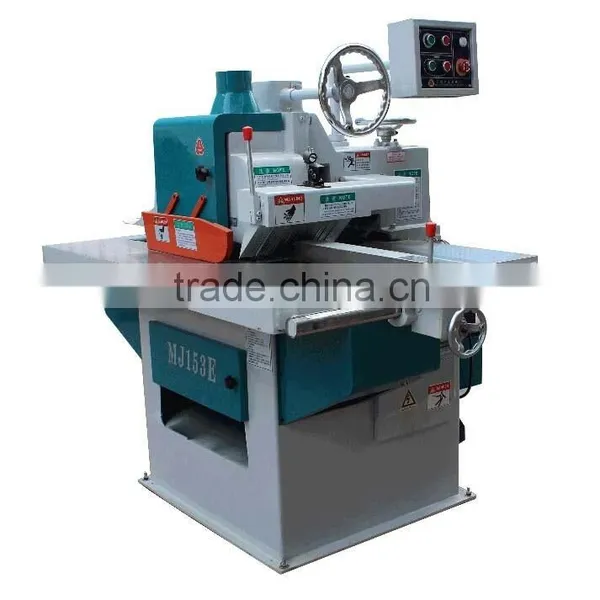

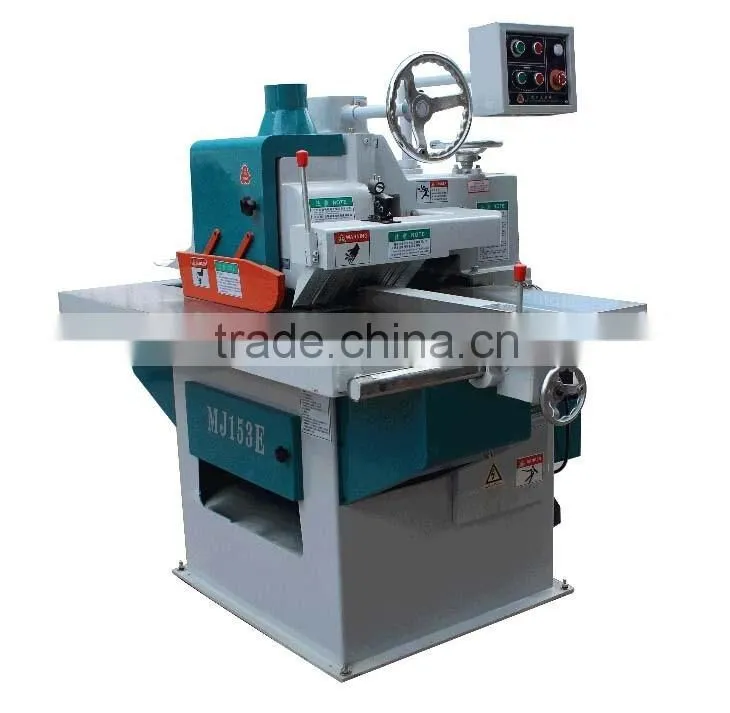

HSP MJ153 Wood Ripping Saw Machine
1.Function Description
This rip saw MJ153 is accurate and automatic feeding device, which increases of the efficiency, and powerful. We still have more model,
please contact me for more and detailed information
This machine is used for all kinds of panels, and also used to trim cubic wood to be clamped and panels which have been cut with single
side saw or multiple side saw. It can ensure the strainghtness of panel and cubic wood and make the joint more firm, it's suitable for the
making of solid wood furniture, the making of joinery board and so on
Advantages
*Perfect linear precision.
*The strong fixed anti-athwart subassembly provide with the strong safety protection.
*Unique double end bearing seat support the delivery chain wheel to make the delivery smooth.
*Super-wide delivery chain wheel make the delivery more smooth.
* With endless super shift gear, it’s very suitable for the process for both the hard and soft timber.
The front handle make shifting when during operating no need to stop the machine.
*The guide board on the working table can also make the delivery smooth.
*The track-type feeding chains wear well and boast high conveying and planing accuracy
*The new clamper makes the feeding more stable
*The super-long guide rail guarantees the straightness timber of length
*The sealed electric cabinet prevents the dust and any accidents thereof
*The three-layer rebounder makes the timber hard to rebound and ensures human safety
2.Technical Parameter
| Model | MJ153 |
| Saw bit diameter | 305mm |
| ing thickness | 80mm |
| Sawing width | 450mm |
| Spindle speed | 3000r/min |
| Spindle diameter | 25.4 |
| Feeding speed | 12-22m/min |
| Feeding motor power | 0.75kw |
| Main motor power | 7.5kw |
| Total power | 8.25kw |
| Operating platform size | 1500*900mm |
| Overall size | 1800*1050*1500mm |
| Weight | 850kg |
3.Detailed Image
HSP MX5116D/MX5117B Bidiredtional woodworking vertical single spindle milling machine
HSP MX5116/T sliding table single spindle shaper
HSP hot sale MX5118B Single spindle shaper price
HSP MX5317 woodworking dobule spindles shaper
HSP MX53110 double spindles shaper for heavy duty
HSP MX7216 make in China wood copy shaper machine
Spacious and clean workshop creates a comfortable work environment for workers to work smoothly. At the same time, finished products are set in the warehouse neatly.
Workshop:
Warehouse:
We set up a special use warehouse to hold various of accessories, they are classfied carefully by our professional warehouse contrller.
The loading team are responsible serious to load every container to prevent the goods be damaged.
The goods are loaded as the figure shows:
Foshan Shunde Huashunpeng Machinery Co., Ltd., a professional manufacturer of plywood machinery production line, located in famous woodworking machinery town, Lunjiao, Shunde. With a group ot professional engineers, technicians. we offer complete plan for your plant/factory, responsible for design, development, manufacturing of standard or customized machines.
We aim at supplying machines for composite boards or plywood manufacturing, including drying, jointing, pressing, sanding etc. Main products are drying machines, veneer jointers, glue spreaders, hot press machines, cold press machines, veneer composers, vertical&horizontal edge cutting saws, sanding machines etc.
Since 2015, we have exported machines to the Middle East, India, Malaysia, Vietnam, Indonesia and more. Products are spoken highly of from our clients.
Contact us
You deserve from us:
1. Specialized in manufacturing & sales of complete&different ranges of woodworking&plywood machines:
2. 24/7 online service, professional suggestions/plan for your inquiry ;
3. Overseas support from Dubai company, for sales&technical support;
4. User-friendly manuals, guidance, videos etc available as per client's demands;
5. Quick delivery(for standard models), mostly have in stock;
6. Quality control, inspection, assurance before export.
1. Q: What components are included in the machine?
A: Machine, tool box, manuals.
We also offer, spare parts, boring bits, motors, electrical parts, dust collectors etc. If needed, we can offer for you.
2. Q: How can I install and operate with the machine?
A: We will send you video link for machine installation, operation as guidance.
3. Q: What is your warranty for the machine?
A: One year for entire machine, six months for electrical parts(motors, AC contactor, circuit breaker etc.)&quick wear-parts(saw blades - due to frequent use), calculated from the date you receive goods from sea port, without man-made damages or spoil;
Our suggestion: buy spare parts in case of any replacement for the used part;
4. Q: How can I order from you?
A: First, we get your inquiry, and offer suitable models (as per Q&A 1);
Second, we send quotation, including machine photos, specifications, sales terms etc, and you check;
Third, we agree and send you Proforma Invoice for payment (acceptable for T/T, D/A, D/P, Western Union, Paypal, Cash etc.)
Fourth, once we received payment from your side, we start production, and keep you updated for the production process, shoot photos, details;
Fifth, arrange delivery&shipping, at the same time, send all required document draft(Bill of Landing, Proforma Invoice, Packing List, C/O, Form F/Form A, Embassy Stamps etc.) for your confirmation;
Sixth, telex release or deliver original documents by DHL/FedEx/TNT/Aramex as per client's requirement.
