Help CenterHSP Four Side Planer Moulder MCM616
Related Products
-
HSP MX7216 Auto Copy Shaper PriceUS$ 3,000 - 10,000MOQ: 1 Set -
HSP MX7216 Make in China Wood Copy Shaper MachineUS$ 3,000 - 10,000MOQ: 1 Set
-
HSP MX53110 Heavy Duty Spindle Shaper Woodworling Machine for Producing FurmitureUS$ 2,700 - 2,750MOQ: 1 Set
-
HSP MX5317 Titable Wood Shaper Woodworking MachineUS$ 1,369 - 1,400MOQ: 1 Set
-
HSP MX53110 Double Spindles Shaper for Heavy DutyUS$ 2,700 - 2,750MOQ: 1 Set
1.Function Description
2.Technical Parameter

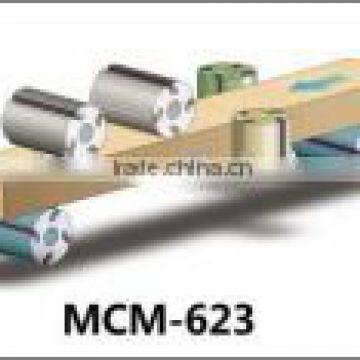

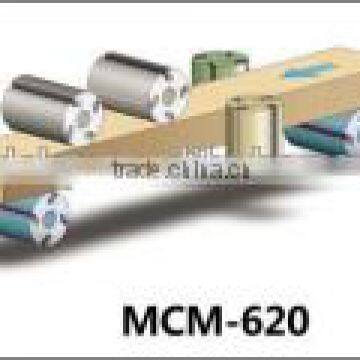

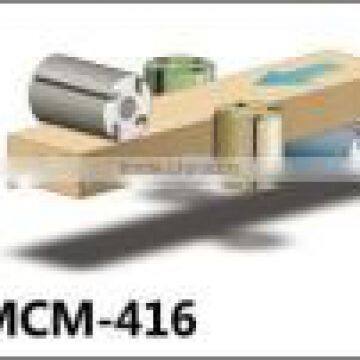

| Model | MCM-620 | MCM-623 | MCM-416 | MCM-516 | MCM-616 |
| Working Width | 20-200mm | 20-230mm | 20-120mm | 20-165mm | 20-165mm |
| Working Thickness | 8-120mm | 8-160mm | 8-100mm | 8-100mm | 8-100mm |
| Working Table Length | 2065mm | 2300mm | 1375mm | 1600mm | 1600mm |
| Main Shaft Diameter | Φ40mm | Φ40mm | Φ40mm | Φ40mm | Φ40mm |
| Infeed Motor Power | 4kw | 5.5kw | 3kw | 3kw | 4kw |
| Pneumatic Source Pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| General Power | 34.75kw | 45.25kw | 21.75lw | 25.25kw | 30.25kw |
| 1st Lower Shaft | 5.5kw | 5.5kw | 4kw | 4kw | 4kw |
| Left And Right Shaft | 4kw | 5.5kw | 4kw | 4kw | 4kw |
| 1st Upper Shaft | 5.5kw | 7.5kw | 4kw | 4/5.5kw | 5.5kw |
| 2nd Lower Shaft | 5.5kw | 7.5kw | 4kw | ||
| 2nd Upper Shaft | 5.5kw | 7.5kw | 4kw | 4kw | |
| Dust outlet Diameter | Φ130mm*6 | Φ150mm*6 | Φ130mm*4 | Φ130mm*5 | Φ130mm*6 |
| Overall size |
4500* 1720* 1750mm |
4800* 1750* 1750mm |
2500* 1700* 1750mm |
3400* 1700* 1750mm |
4200* 1700* 1750mm |
| Net Weight | 4.1T | 5.0T | 2.7T | 3.3T | 3.6T |
| Feeding speed | 6-24m/min | 6-24m/min | 6-24m/min |
3.Detailed Image
HSP MX5116D/MX5117B Bidiredtional woodworking vertical single spindle milling machine
HSP MX5116/T sliding table single spindle shaper
HSP hot sale MX5118B Single spindle shaper price
HSP MX5317 woodworking dobule spindles shaper
HSP MX53110 double spindles shaper for heavy duty
HSP MX7216 make in China wood copy shaper machine
The loading team are responsible serious to load every container to prevent the goods be damaged.
The goods are loaded as the figure shows:
Foshan Shunde Huashunpeng Machinery Co., Ltd., a professional manufacturer of plywood machinery production line, located in famous woodworking machinery town, Lunjiao, Shunde. With a group ot professional engineers, technicians. we offer complete plan for your plant/factory, responsible for design, development, manufacturing of standard or customized machines.
We aim at supplying machines for composite boards or plywood manufacturing, including drying, jointing, pressing, sanding etc. Main products are drying machines, veneer jointers, glue spreaders, hot press machines, cold press machines, veneer composers, vertical&horizontal edge cutting saws, sanding machines etc.
Since 2015, we have exported machines to the Middle East, India, Malaysia, Vietnam, Indonesia and more. Products are spoken highly of from our clients.
Contact us
You deserve more from us:
1. Pre-sales service for your inquiry - suggestion(make draft&offer required machines), quotation, negotiation;
2. After-sales service - offer technical support from factory engineers/technicians;
3. User-friendly manuals and guidance book, video support for you;
4. Fast production lead time after order placed on us;
5. Spare parts, accessory are available from us.
Q: What kind of machines I need for my plant/factory?
A: 1. Get your inquiry, we need to know:
a). finished products: core boards or plywood boards?
b). boards dimension: length, width, thickness?
c). production capability per day?
d). plant/factory size?
e). budget for the entire production line?
2. Offer suggestions as per your reply;
3. Quotation(technical parameters, trade terms, payment terms, lead time, warranty etc.);
Q: How can I order from you?
1. When both sides agree to the quotation and make a deal, we send you Proforma Invoice, Packing List and other required documents for custom clearance. Buyers transfer us deposit, when we receive into bank account, we start production and keep you update for the process(shoot photos, videos).
2. Before delivery, machines should be tested to ensure its normal operation. Also send some photos of the packing and details to make sure they are in good condition.
3. All the documents will be delivered to you by DHL/FedEx/UPS/TNT etc. for your custom clearance purpose.
