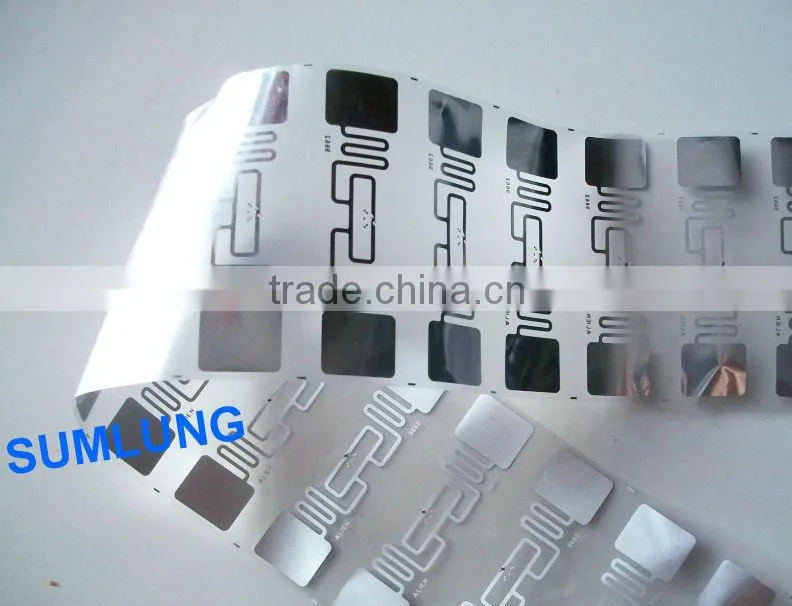

Help CenterClear RFID Dry Inlay With UHF Chip Transparent Flexible PET Housing
Related Products
-
Product Authentication NFC Tag Sticker RFID Adhesive Label IC Smart OEM PrintingUS$ 0.2 - 0.35MOQ: 1000 Pieces -
Dual Frequency UHF and HF Hybrid RFID Cards 860 - 960 MHz and 13.56 MHz WritableUS$ 0.62 - 3MOQ: 1 Piece
-
Dual Frequency RFID Cards for Door Access Security ControlNegotiableMOQ: 1000 Pieces
-
Combined Anti-counterfeiting CardNegotiableMOQ: 1000 Pieces
-
PVC Combo Cards With One Key Tag Offer CMYK Printing / Loyalty CardsUS$ 0.89 - 1.274MOQ: 500 Pieces
Specifications
RFID Dry Inlay in rollHF 13.56MHz
UHF 860 to 960 MHz
PET Flexible
Smallest dia. 12 mm

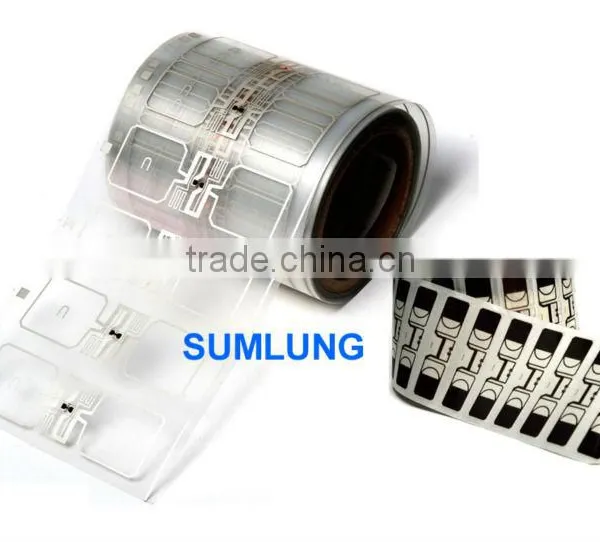

RFID Dry Inlay
HF 13.56MHz // UHF 860 - 960 MHz
The dry inlay is typically supplied on a substrate or carrier.
According to different applications, like for library management, healthcare, biometrics sample tracking, logistics, ticketing and so on, we can provide RFID dry/wet inlay with various specs of RFID antenna in roll form for global partners.
Features
- Customized formats and chips available
- Highest mechanical durability and lifetime
- High yield rates in card production
- Can be processed with standard card manufacturing equipment
- Reading and writing speed signal responsive
- Working Temperature: -25°C ~ 55°C
- Store Temperature: -25°C ~ 65°C
Specifications
Standard: ISO14443 Type A and B, ISO15693, ISO 18000
Housing Material: PVC, PET
Bonding: HF: FLIP chip, MOA2; UHF: Flip chip
Antenna: HF: AL Etching, Ultrasonic Embedding; UHF: AL Etching
IC Chips: HF: MF1 1K S50, NTAG203, NTAG213, NTAG216, Ultralight, Ultralight C, TOPAZ512
UHF: Alien Higgs 3, Ucode Gen2 Impinj M4
Thickness: 0.2 mm
Dimensions Available:
HF:
Rectangle: 300*25mm,86*54mm,80*50mm,50*50mm, 45*45mm, 40*25mm,,35*35mm, 25*25mm;
Round: diameter 50mm, Ø45mm, Ø35mm, Ø30mm, Ø25mm, Ø24mm, Ø12mm, etc..
UHF: 300*25mm, 120*38mm, 100*100mm, 100*15mm, 86*54mm, 80*50mm, 14*9.5 mm, etc..
Applications
Automated fare collection
Identification
Access control
ePayment
Management of warehouse items
Supply Chain Management
Cargo tracking management
Security identification
