Help CenterQR Code Industrial Collection Terminal V5000 WinCE + 2D Symbol Scanner Bluetooth WiFi + SDK Mobile Computer DataMatrix
Related Products
-
IP64 Rugged Industrial Handheld Barcode Collection Terminal V5000 WinCE + 1D Symbol Scanner Bluetooth WiFi + SDK Mobile ComputerUS$ 370 - 850MOQ: 1 Piece -
Cheapest USB CCD Barcode Scanner SL-100 Small LightNegotiableMOQ: 1 Piece
-
Excellent Scan Performance USB Barcode Scanner SL-D300 CCDNegotiableMOQ: 10 Pieces
-
Low Cost CCD Barcode Scanner SL-D1000 USBNegotiableMOQ: 1 Piece
-
75mm Width of Field CCD Barcode Scanner SL-D2000NegotiableMOQ: 1 Piece
Please feel free to ask any questions before purchase, contacts info is listed below: G-talk, Skype, Tel and so on.

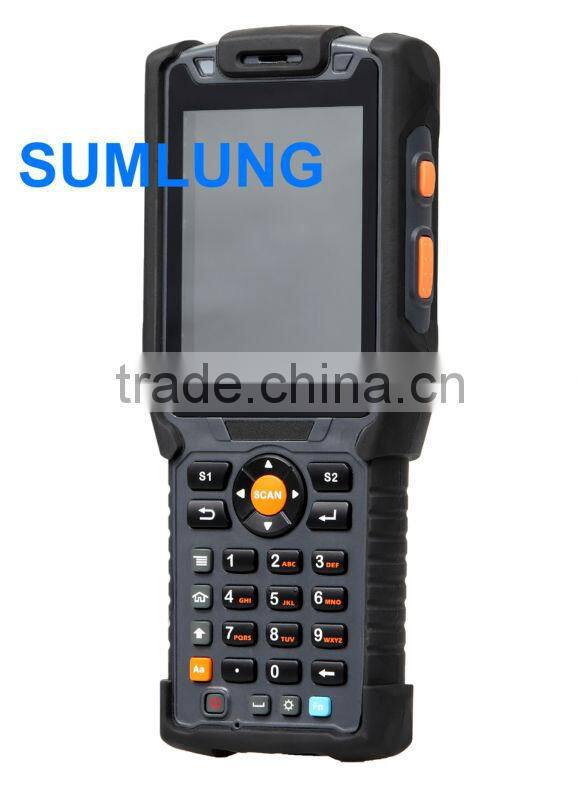

Industrial Barcode Collection Mobile Terminal SL-V5000
Powerful 2D Scan Engine from Motorola / Symbol
Product Superiority
IP64 Rating
Wireless Information Transfer
Powerful CPU
Features
(1) Powerful Data Collection Ability
High speed data collection by 2D and 1D bar code scanner, RFID reader and IC card reader
(2) Flexible and Adaptable
Ergonomic design for easy and comfortable operation, meeting IP64 environmental grade and supporting various industrial applications
(3) Wireless Communication
Supports GPRS/GSM, 3G, WLAN, Bluetooth and other communication modes
4 Multiple Data Interfaces
5 Strong Data Storage
6 Dual-system Supportable
Supports WinCE 6.0 & Android 2.3, offer SDK
Applications
Transportation & Logistics, Garment & Chain Store, Retail Market, Retail & Wholesale, International Trade, Healthcare & Hospitality, E-commerce, Production Management, Government Law Enforcement, Manufacturing Product Line
| Specfications | ||
| Model | SL-V5000 | |
| Dimentions | Max 190*75*30 mm | |
| Hand Grip: 90*60*25 mm | ||
| Weight | 350 g (includes battery) | |
| Display | 3.5 inch TFT-LCD VGA(480×640) Color Touch Screen | |
| Keyboard | 33 keys (Number/Alphabetic keys, Directional button, Scan button, Side keypad) | |
| Input | English, Chinese, handwriting, support on-screen keyboard | |
| Power | Main Battery | Removable, rechargeable 3.7V 3000mAh (3.8V 4500mAh) Lithium battery (could work for 8 hours, depending on environment) |
| Slave Battery | 150mAh lithium battery | |
| RTC Battery | Individual RTC to keep clock at real time | |
| ||
| Performance Characteristics | ||
| O.S. | Microsoft Windows CE 6.0 | |
| CPU | 1GHz | |
| Memory | ROM | 512MB Nand Flash |
| RAM | 512MB Mobile DDR | |
| Expansion | Support Micro SD/TF up to 32G, SIM x 1 | |
| Audio | Loudspeaker x 1,Microphone x 1,Earphone x 1 | |
| Interfaces | Mini USB x 1, 3.5mm Audio Jack x 1 | |
| ||
| Barcode Scanner | ||
| Scanning Rate | 100±20 scan/second | |
| Decode Capability | 1D | UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR, MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5 , Korean3/5, Matrix 2/5, CODE 32, CODE 93, CODE 11, Inverse 1D, GS1 DataBar, Composite Codes |
| 2D | PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse | |
| Postal Codes | U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal | |
| ||
| Radio Communication | ||
| Wireless LAN | WiFi 802.11 b/g, Frequency range: 54MB/sec | |
| Cisco Compatible CCX2/3 Security,CISCO AP Security | ||
| Bluetooth | Bluetooth Class 2.1+ EDR | |
| ||
| Options (need extra costs) | ||
| Camera | 3.0/5.0 mega pixels with fill light,screen capture and automatic focus | |
| GPS/ | Support A-GPS | |
| RFID | Customizable,support | |
| LF : ISO11784/11785 | ||
| HF : ISO15693, ISO14443A, ISO14443B | ||
| ||
| User Environment | ||
| Operating Temperature | –10°C - 50°C | |
| Storage Temperature | –20°C - 60°C | |
| Humidity | 5% to 95% non condensing (Condensation Resistant Configurations Available) | |
| Drop Durability | Multiple drops to concrete: 5 ft./1.5 m across the operating temperature range | |
| Sealing | IP64 standard for water and dust resistance | |
| ||
| Peripherals and Accessories | ||
| Charging Dock | Double-slot cradle: support two pieces of battery charging at the same time | |
| Support Printers | Supports extensive line of Bluetooth SPP approved printers and cables | |
| Other Acceseries | Adaptor, USB Cradle Cable | |
| ||
| Regulatory | ||
| Certification | CCC, CE | |
| Electrical Safety | Certified to UL60950, CSA C22.2 No.6050, EN60950/IEC950 | |
| Laser Safety | IEC Class 2 /FDA Class, in accordance with IEC60825-/EN60825-1 | |
| Warranty | 1 Year (accessories are not inlcuded) | |
Accessories
Packing List
1x SUMLUNG Handheld Data Terminal SL-V5000
1x User Manual
1x Lithium Battery
1x Power Adapter
1x USB Data Cable
