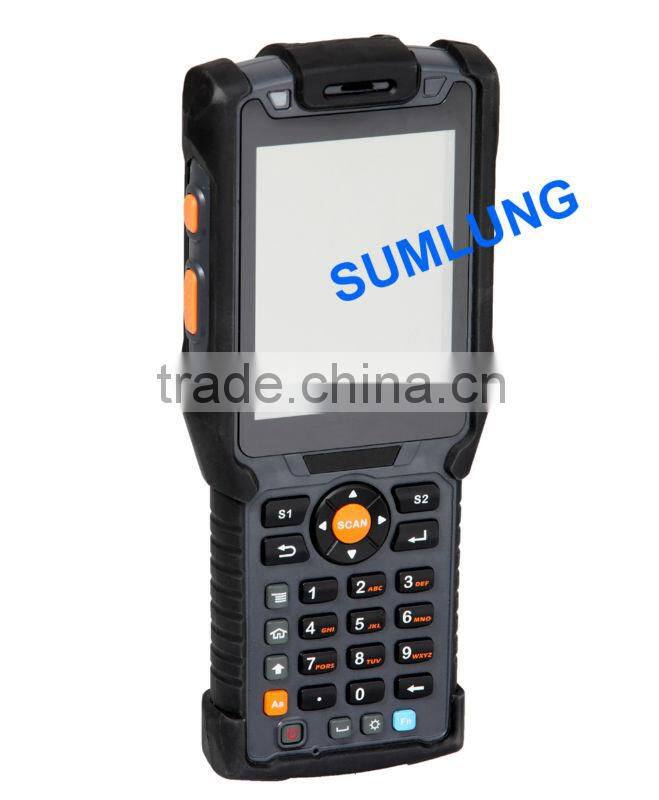

Industrial Barcode Collection Mobile Terminal SL-V5000
Product Superiority
IP64 Rating
Wireless Information Transfer
Powerful CPU
Features
(1) Powerful Data Collection Ability
High speed data collection by 1D and 2D bar code scanner, RFID reader and IC card reader
(2) Flexible and Adaptable
Ergonomic design for easy and comfortable operation, meeting IP64 environmental grade and supporting various industrial applications
(3) Wireless Communication
Supports GPRS/GSM, 3G, WLAN, Bluetooth and other communication modes according to project requirements
(4)Multiple Data Interfaces
Provides USB & RS232 interfaces and supports voice communication
(5)Strong Data Storage
Built-in large RAM&ROM capacity, supports extended Micro SD/TF card (up to a maximum of 32GB capacity supportable)
(6)Dual-system Supportable
Supports Windows CE 6.0 & Android 2.3 operating systems, provides SDK for secondary development on different applications
Applications
Transportation & Logistics, Garment & Chain Store, Retail Market, Retail & Wholesale, International Trade, Healthcare & Hospitality, E-commerce, Production Management, Government Law Enforcement, Manufacturing Product Line
| Specfications | ||
| Model | SL-V5000 | |
| Dimentions | Max 190*75*30 mm | |
| Hand Grip: 90*60*25 mm | ||
| Weight | 350 g (includes battery) | |
| Display | 3.5 inch TFT-LCD VGA(480×640) Color Touch Screen | |
| Keyboard | 33 keys (Number/Alphabetic keys, Directional button, Scan button, Side keypad) | |
| Input | English, Chinese, handwriting, support on-screen keyboard | |
| Power | Main Battery | Removable, rechargeable 3.7V 3000mAh (3.8V 4500mAh) Lithium battery (could work for 8 hours, depending on environment) |
| Slave Battery | 150mAh lithium battery | |
| RTC Battery | Individual RTC to keep clock at real time | |
| ||
| Performance Characteristics | ||
| O.S. | Microsoft Windows CE 6.0 | |
| CPU | 1GHz | |
| Memory | ROM | 512MB Nand Flash |
| RAM | 512MB Mobile DDR | |
| Expansion | Support Micro SD/TF up to 32G, SIM x 1 | |
| Audio | Loudspeaker x 1,Microphone x 1,Earphone x 1 | |
| Interfaces | Mini USB x 1, 3.5mm Audio Jack x 1 | |
| ||
| Barcode Scanner | ||
| 1D Laser | Scanning Rate | 100 scan/second |
| Decode Capability | Code 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5; Code 93; UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS-Expanded; | |
| ||
| Radio Communication | ||
| Wireless LAN | WiFi 802.11 b/g, Frequency range: 54MB/sec | |
| Cisco Compatible CCX2/3 Security,CISCO AP Security | ||
| Bluetooth | Bluetooth Class 2.1+ EDR | |
| ||
| Options (need extra costs) | ||
| Camera | 3.0/5.0 mega pixels with fill light,screen capture and automatic focus | |
| GPS/ | Support A-GPS | |
| RFID | Customizable,support | |
| LF : ISO11784/11785 | ||
| HF : ISO15693, ISO14443A, ISO14443B | ||
| ||
| User Environment | ||
| Operating Temperature | –10°C - 50°C | |
| Storage Temperature | –20°C - 60°C | |
| Humidity | 5% to 95% non condensing (Condensation Resistant Configurations Available) | |
| Drop Durability | Multiple drops to concrete: 5 ft./1.5 m across the operating temperature range | |
| Sealing | IP64 standard for water and dust resistance | |
| ||
| Peripherals and Accessories | ||
| Charging Dock | Double-slot cradle: support two pieces of battery charging at the same time | |
| Support Printers | Supports extensive line of Bluetooth SPP approved printers and cables | |
| Other Acceseries | Adaptor, USB Cradle Cable | |
| ||
| Regulatory | ||
| Certification | CCC, CE | |
| Electrical Safety | Certified to UL60950, CSA C22.2 No.6050, EN60950/IEC950 | |
| Laser Safety | IEC Class 2 /FDA Class, in accordance with IEC60825-/EN60825-1 | |
| Warranty | 1 Year (accessories are not inlcuded) | |
Accessories
Packing List
1x Handheld Barcode Data Terminal SL-V5000 (offer SDK)
1x Lithium Battery
1x Power Adapter
1x USB Data Cable
