22 Years History CHEN GAO Brand 800ton Aluminium Die Casting Machine

22 Years History CHEN GAO Brand 800ton Aluminium Die Casting Machine thumbnail-1
22 Years History CHEN GAO Brand 800ton Aluminium Die Casting Machine thumbnail-2
22 Years History CHEN GAO Brand 800ton Aluminium Die Casting Machine thumbnail-3
22 Years History CHEN GAO Brand 800ton Aluminium Die Casting Machine thumbnail-4
22 Years History CHEN GAO Brand 800ton Aluminium Die Casting Machine thumbnail-5
22 Years History CHEN GAO Brand 800ton Aluminium Die Casting Machine thumbnail-6
22 Years History CHEN GAO Brand 800ton Aluminium Die Casting Machine photo-1

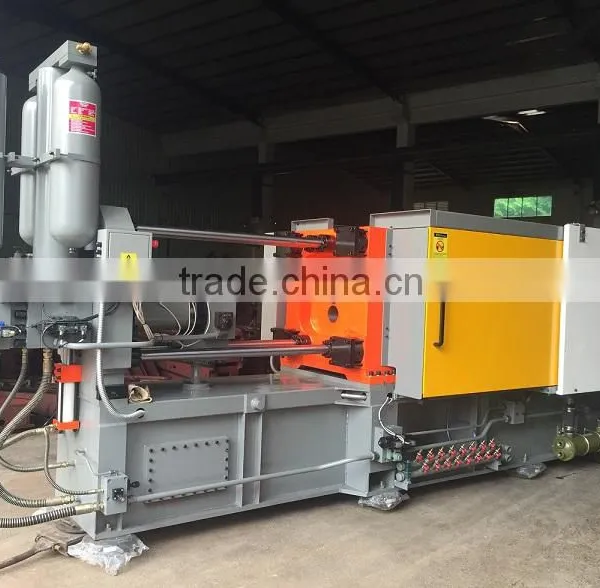

22 Years History CHEN GAO Brand 800ton Aluminium Die Casting Machine photo-2
22 Years History CHEN GAO Brand 800ton Aluminium Die Casting Machine photo-3
22 Years History CHEN GAO Brand 800ton Aluminium Die Casting Machine photo-4

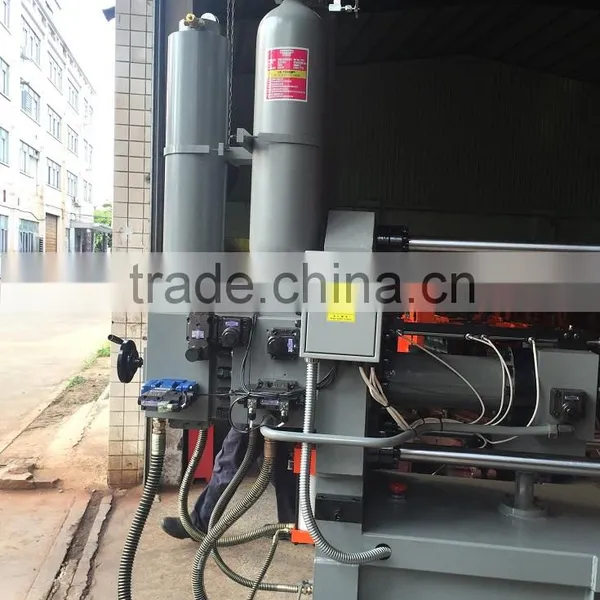

22 Years History CHEN GAO Brand 800ton Aluminium Die Casting Machine photo-5

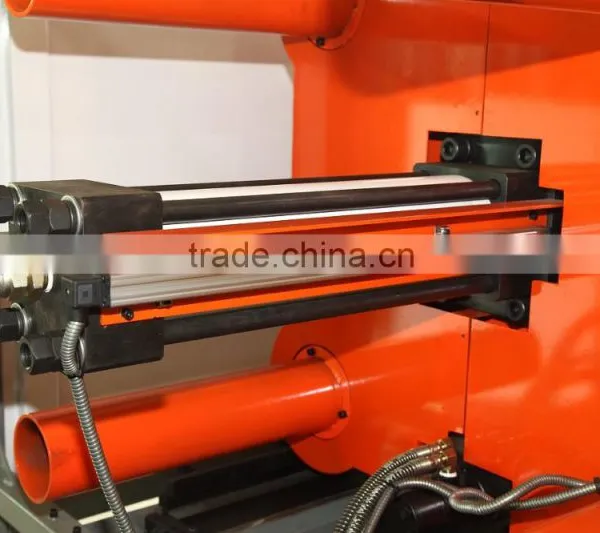

22 Years History CHEN GAO Brand 800ton Aluminium Die Casting Machine photo-6
US$ 156,000 - 156,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
CHEN GAO
Contact Supplier Request Quote Chat Now
Guangzhou Chen Gao Die-Casting Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHEN ZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Guangdong, China
Brand Name CHEN GAO
Model Number ZG-800
Voltage 380V
Power(W) 45KW
Dimension(L*W*H) 8500*2300*3450
Weight 38.5ton
Certification CE,ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

company brief :

22 years history CHEN GAO brand 800ton aluminium die casting machine

22 years history CHEN GAO brand 800ton aluminium die casting machine



CHEN GAO was established in the year of 1993,located in Guangzhou city ,China. Major in manufacture hot chamber die casting machine and cold chamber die casting machine .In china , there are many brands die casting machine manufacture ,but like CHEN GAO has 22 years history and only manufacture die casting machine ,really only CHEN GAO .So CHEN GAO is professional for die casting machine .



CE standard ,high quality and favorable price .Not only sold well in China ,also export to different countries ,and used very well . Hope can have chance to provide our high quality machine and professional service .



CHEN GAO honor:

22 years history CHEN GAO brand 800ton aluminium die casting machine

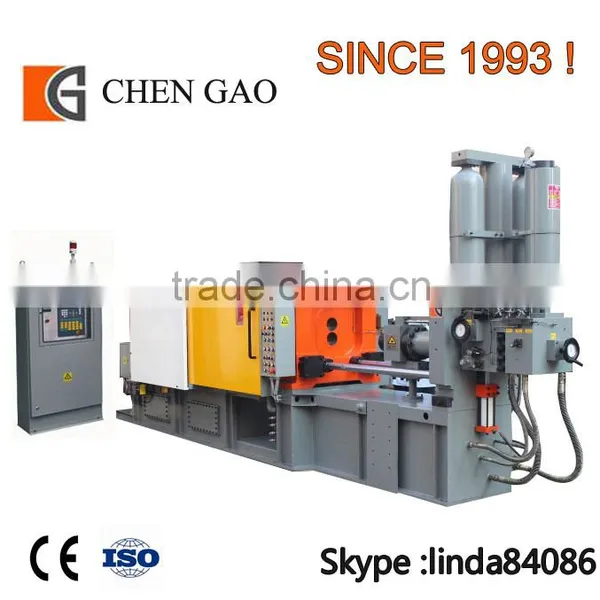

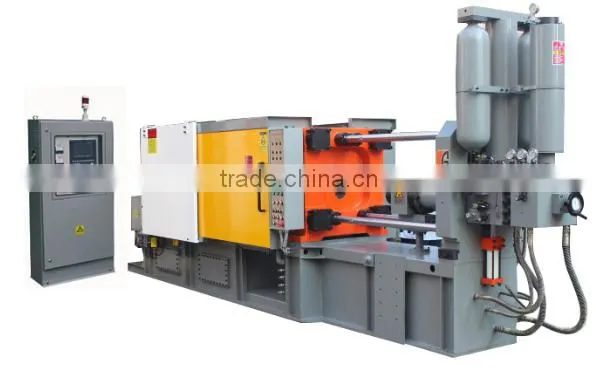

CHEN GAO ZG-800 aluminium die casting machine

22 years history CHEN GAO brand 800ton aluminium die casting machine

22 years history CHEN GAO brand 800ton aluminium die casting machine



22 years history CHEN GAO brand 800ton aluminium die casting machine



22 years history CHEN GAO brand 800ton aluminium die casting machine

22 years history CHEN GAO brand 800ton aluminium die casting machine



22 years history CHEN GAO brand 800ton aluminium die casting machine



ZG-800 aluminium die casting machine specification  :

DESCRIPTION UNIT ZG-800
 DIELOCKING SYSTEM
LOCKING FORCE ton 800
TIE-BAR DIAMETER mm 180
SPACE BETWEEN TIE(MIN/MAX) mm 910×910
MOLD THICKNESS mm 350~950
DIE   STROKE mm 760
PLATEN SIZE    (W×H) mm 1400×1400
 INJECTION SYSTEM
INJECTION FORCE KN 280-740
SHOT POSITION mm 250
CASTING  STROKE mm 760
PLUNGER DIAMETER mm 90/100
CASTING AREA cm2 544-2285
FLANGER DIAMETER mm 200
OVER HELGHT OF FLANGE mm 20
CASTING WEIHGT kg  7/9/11
 EJECTION SYSTEM
EJECTION FORCE KN 320
EJECTION STROKE mm 180
 OTHER
WORKING PRESSURE kg/cm2 145
MOTOR RATING KW 45
CAPACITY OF OIL TANK L 1300
MACHINE SIZE mm L:8450
W:2200
H:3000
MACHINE WEIGHT ton 38.5
