Specifications
PMMA optical parts injection mould and moldingmaterial: PMMA/Acrylic
core metal: S136
warranty: 300K shot
cold runner
ZHUHAI JZS MOULD CO.,LTD

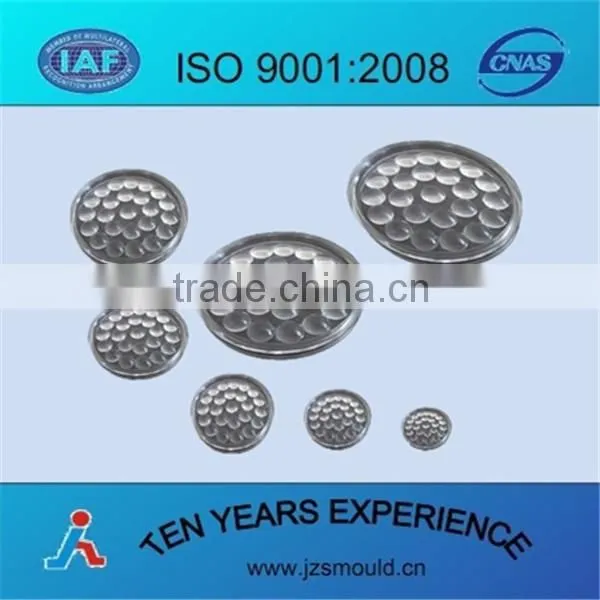

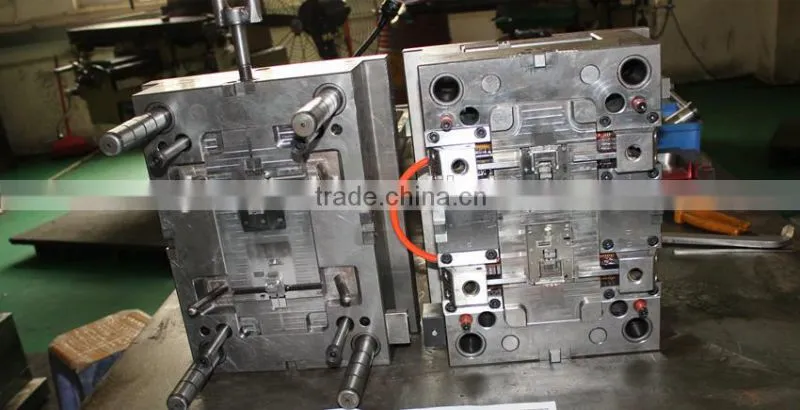

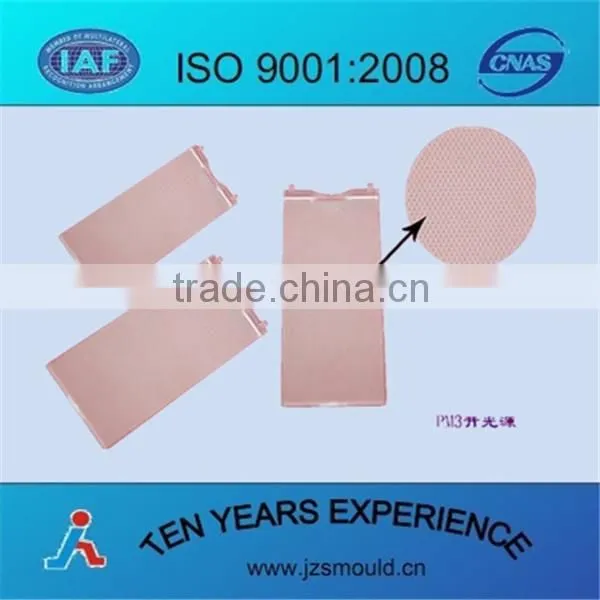

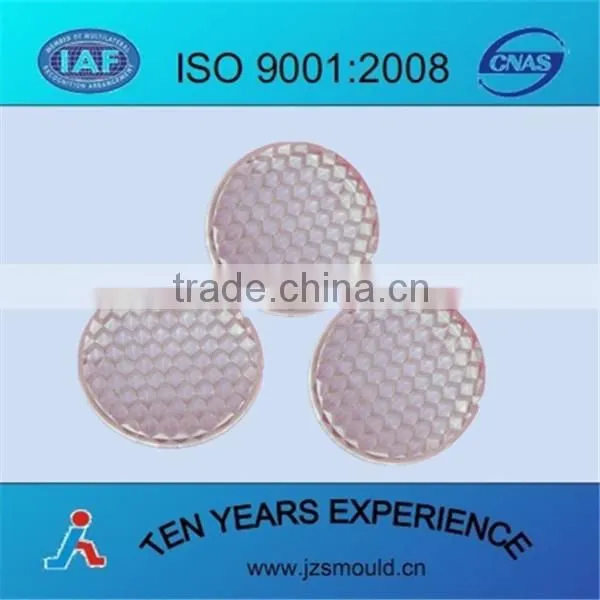

PMMA optical parts injection mould and molding
Mould Name |
PMMA optical parts injection mould and molding |
Mould core |
P20, H13, 718H, NAK80, S136, etc. |
Mould base |
LKM,HASCO etc. |
Cavity |
Single/Multi |
Runner |
Hot/cold type |
|
|
Plastic material |
PP, PC, PS, PE, PET, POM, PA,PU, PVC, ABS,HIPS, PMMA etc. |
Mould life |
300,000-1,000,000 shots |
Delivery time |
35 days |
Specification |
Depends on customer's requirements. |
Our service including mould design, prototype making, mould making, products molding, surface
treatment, products assemble and OEM service.
With ten years experience we make sure will provide a high quality goods with reasonable price for you!
mould: plywood box
parts: carton box 600*400*350mm
business type |
manufacturer |
number of emplyee |
100-200 |
factory |
5000 square meters |
mould making machines |
products molding machines |
CNC machine |
horizontal molding machine |
EDM, wire cutting, mirror E |
vertical molding machine |
Lathe, milling machine, grinding |
|
Total: 25 sets |
Total: 15 sets |
HOW TO DO A NEW MOULD?
1.Quote |
According to samples, 2/3 D drawing and specification |
||||||||
↓ | |||||||||
2.Discussion |
Mould core/base material, cavity number, runner type, price, payment, etc |
||||||||
↓ | |||||||||
3.PI |
Approval for all terms |
||||||||
↓ | |||||||||
4. Deposit |
50% by T/T |
||||||||
↓ | |||||||||
5.Product Design |
Our engineer will check product drawing, and pick up the unreasonable terms |
||||||||
↓ | |||||||||
6.Mould Design |
Our engineer will do DFM and send PPT to customers for approval |
||||||||
↓ | |||||||||
7.Mould making |
We start to make mould after customers confirmed the drawing |
||||||||
↓ | |||||||||
8.Mold Testing |
We will express trial samples to customers by DHL for confirmation |
||||||||
↓ | |||||||||
9. Mould repair |
We will modify the mould according to customer’s feedback |
||||||||
| |||||||||
10. Mould approval |
Express trial samples by DHL again till products approval |
||||||||
↓ | |||||||||
11.Balance payment |
50% by T/T before delivery |
||||||||
↓ | |||||||||
12.Delivery |
Delivery by sea or air, all documents as customer required |
||||||||
1. what do i need to prapare if i want a plastic injection mould/tooling?
A sample or Drawing (2D/3D), we accept DXF, IGS, STEP,STP...
2. what should i do if i can not make sure the parts structure?
A prototype is useful, often just need 3-5 days
.
3. what is mould core?
Mold center portion of the key operational precision parts.
The quality of the mould core material selection, directly related to the life of the mold and the mold price.
4. what is mould warranty/life?
mould warranty/ life refers to the number of parts to ensure parts quality under the premise can shape out.
It includes repeated sharpening and replacement of wearing parts, until a qualified replacement of the main part of the total number of parts being shaped mold. often we do 300K, 500K, 1000K.
Why us?
1.we are manufacturer, so we have competitive price.
2.we have professional engineers with 15 years design experience.
3.we exported mould to all the world with ten years experience.
4.we made about 400 sets moulds per year.
5.we can delivery the moulds on time.
6.we have ISO 9001:2008 certificate.
