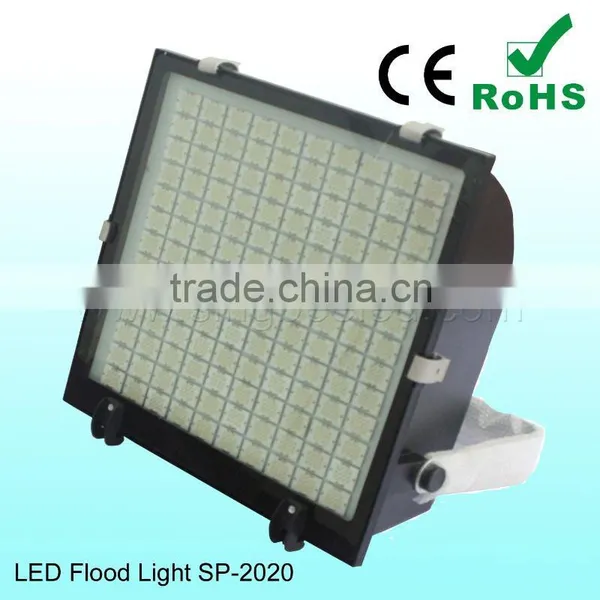

LED Spotlight SP-2020

Specifications

LED Spotlight SP-2020
Energy Saving
Environment Protection
2 Years Warranty
CE,RoHS certificate

LED Spotlight SP-2020

LED Light,LED Outdoor Light,LED Spotlight,LED Floodlight,LED Billboard Light



RoHS

CE

CLASS 2

IP 65

50Hz~60Hz

Protection Class 2

Recyclable

1. Material:

      Aluminum Alloy Housing

      Strengthened Glass

      Processed Surface and Spray Painted



2. Standard Specifications:

Beam Angle: 170°   Cool White: 5000~6000K   90~260V/AC



3. Optional Parts:

Beam Angle: 130° / 80° / 40° Warm White: 3000~4000K  12-24V/DC

Above may be changed with standard part to fit the specification required for your unique project.

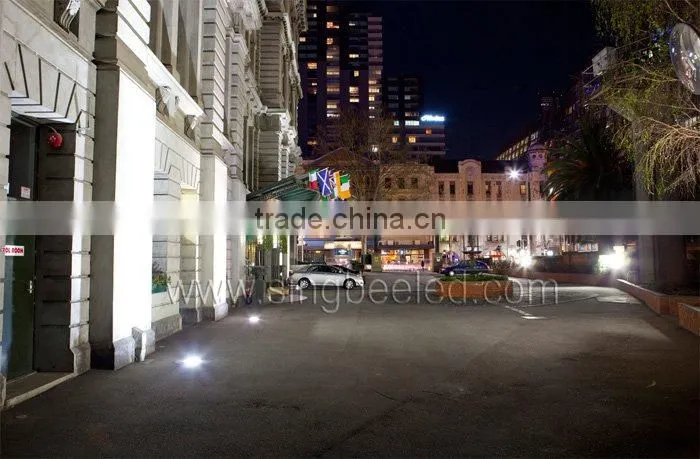

4. Application: Streets, Stadiums, Bridges, Outside Buildings, Car Parks, Billboards.

Item     NO.	Input(V/AC)	Power(w)	Luminous flux(lm)	Color temperature(K)	Color rendering index(Ra)	Size (mm)
SP2020	90~260	100	8000	5000~6000	80	600*535*220
SP2020	90~260	120	9600	5000~6000	80	600*535*220
SP2020	90~260	150	12000	5000~6000	80	600*535*220
