Home > Light Industry & Daily Use > Exhibition and Advertising Equipment > Other Exhibition and Advertising Equipment > Flexible Embeded Open Frame 22 Inch POP Display Install Lcd Digital Signage

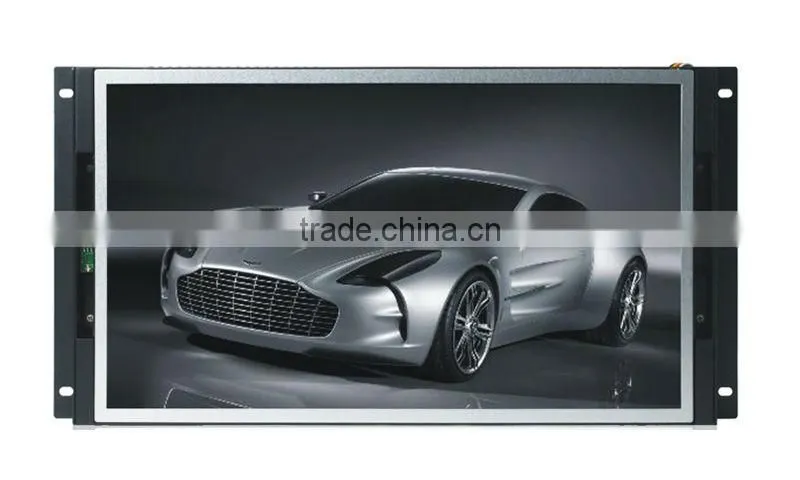

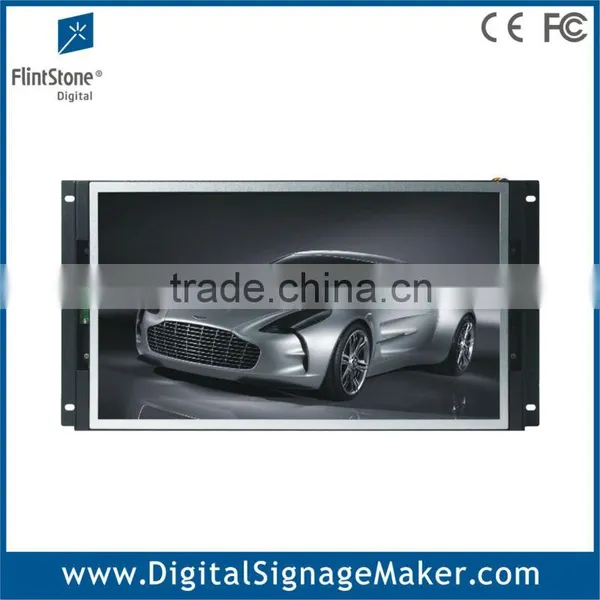

Flexible Embeded Open Frame 22 Inch POP Display Install Lcd Digital Signage
US$ 180 - 185
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Flintstone or OEM
Model Number:
AD2208WF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Customized Open Frame 22 Inch Indoor Lcd Advertising PlayerUS$ 170 - 175MOQ: 1 Piece -
Wall-embed Open Frame 22 Inch Outdoor Lcd Advertising PlayerUS$ 180 - 183MOQ: 1 Piece
-
15" 19" 22 Inch Open Frame TFT Module for Lcd Advertising MonitorUS$ 180 - 185MOQ: 1 Piece
-
Open Frame 22 Inch TFT Module for Lcd Advertising PlayerUS$ 195 - 200MOQ: 1 Piece
-
Wall-embed Open Frame 22 Inch Outdoor Lcd Advertising PlayerUS$ 190 - 199MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Flintstone or OEM
Model Number
AD2208WF
Type
TFT
Application
Indoor
Panel Size
22 inch
Max Resolution
1920 x 1080 (H*V)
Viewing Angle
85° /85° /80° /80° (L/R/U/D)
Contrast Ratio
1000:1
Brightness
250cd/㎡
Input Voltage
AC100V-240V (50HZ-60HZ), DC4A, 48W (MAX)
Specifications
Remote control functionLong hour play and replay
USB easily updated function
Timer function, flexible embeded
Key functions
1. Open frame structure: with customizable and changeable metal frame to embed into your furniture, store shelf, showcase, or fit into any object as per your design.
2. Our standard open frame product sample has flexible connection and support structure to fit into furniture, store shelf, showcase, or many other different objects without modification.
3. Our structure engineers can help you with design service as per your special need.
4. Industrial-grade design, heavy-duty build for non-stop loop-playing 24/7/365.
5. Upload contents to the memory card by one-step inserting an USB flash drive.
Main functions
1. Open frame structure: with customizable and changeable metal frame to embed into your furniture, store shelf, showcase, or fit into any object as per your design.
2. Our standard open frame product sample has flexible connection and support structure to fit into furniture, store shelf, showcase, or many other different objects without modification.
3. Our structure engineers can help you with design service as per your special need.
4. Industrial-grade design, heavy-duty built for non-stop loop-playing video and picture 24/7/365.
5. Upload contents to the memory card by one-step inserting an USB flash drive; no need to pull out the memory card; no need to use a laptop.
6. Timer: the player powers on / off automatically every day at your pre-set time.
7. No DVD-style mechanical movement, hence more durable and suitable for long-hour advertising playing.
8. With full HD 21.5 inch (16:9) TFT LCD screen, plays from SD, CF card and USB flash drive.
| Model | AD2208WF | |
| LCD Screen | LCD Size: | 21.5 Inch |
| Active Area: | 476.64 (W) * 268.11 (H) (mm) | |
| Pixel Pitch: | 0.248 (W) * 0.248 (H) (mm) | |
| Screen Ratio: | 16:9 | |
| Resolution: | 1920 x 1080 (H*V) | |
| Brightness: | 250cd/m2 | |
| Color: | 16.7M (8-bit) | |
| Contrast Ratio: | 1000:1 | |
| View Angle: | 85°/85°/80°/80°(L/R/U/D) | |
| Response Time | 1.3/3.7 ms | |
| Support Formats | Video: | MPEG1 (VCD), MPEG2 (DVD), MPEG4 |
| Audio: | MP3, WMA | |
| Picture: | JPEG, BMP | |
| Play From | Memory Flash: | CF or SD card, Max. 8GB |
| Built-in Flash Memory: | Optional, confirm before production | |
| USB: | High speed USB 2.0 OTG (Host) | |
| Installation | Embedding | |
| Others | IR body Sensor Distance: | Optional, 3m |
| Remote Controller Distance: | 4-5m | |
| Input Voltage: | AC100V-240V (50HZ-60HZ) | |
| Power Supply: | DC4A, 48W (MAX) | |
| Speaker: | Built-in 2x2W high quality stereo loudspeakers | |
| Working Temperature: | 0°C-45°C | |
| Storage Temperature: | -20°C-45°C | |
| Working Humidity: | 20%-80% | |
| Storage Humidity: | 10%-95% | |
| Casing: | Metal cold-rolled plate | |
| Body Size: | 564.6(L) * 297.2(W) * 35(H) (mm) | |
| Body Weight: | (kg) | |
| Package | Standard Accessories | AC power adaptor, User's manual or CD disk, Remote control, Spare screws |
| Unit Size: | (cm) | |
| Unit Weight: | (kg) | |
| Carton Size: | (cm) | |
| Carton Weight: | (kg) | |
| Units Per Carton: | pcs | |
