Home > Light Industry & Daily Use > Exhibition and Advertising Equipment > Other Exhibition and Advertising Equipment > 15" 19" 22 Inch Open Frame TFT Module for Lcd Advertising Monitor

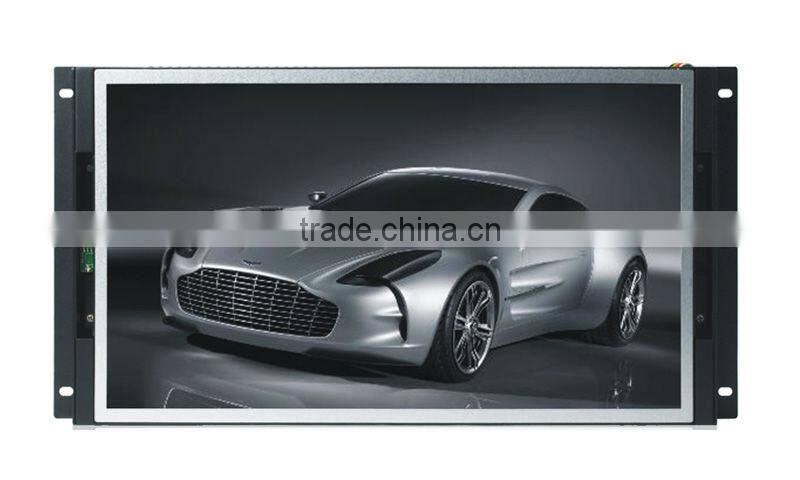

15" 19" 22 Inch Open Frame TFT Module for Lcd Advertising Monitor
US$ 180 - 185
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Flintstone or OEM
Model Number:
AD2208WF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Open Frame 22 Inch TFT Module for Lcd Advertising PlayerUS$ 195 - 200MOQ: 1 Piece -
Wall-embed Open Frame 22 Inch Outdoor Lcd Advertising PlayerUS$ 190 - 199MOQ: 1 Piece
-
Wall-embed Open Frame 22 Inch Outdoor Advertising Led Display Screen PricesUS$ 190 - 200MOQ: 1 Piece
-
Open Frame 22 Inch TFT Module for Lcd Advertising DisplayUS$ 195 - 200MOQ: 1 Piece
-
Open Frame 22 Inch Outdoor Advertising Led Display Screen PricesUS$ 190 - 200MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Flintstone or OEM
Model Number
AD2208WF
Type
TFT
Application
Indoor
Panel Size
22 inch
Max Resolution
1920 x 1080 (H*V)
Viewing Angle
85° /85° /80° /80° (L/R/U/D)
Contrast Ratio
1000:1
Brightness
250cd/㎡
Input Voltage
AC100V-240V (50HZ-60HZ), DC4A, 48W (MAX)
Specifications
Remote control functionLong hour play and replay
USB easily updated function
Unit price: USD 180-185
Key Function:
1. Open frame instruction design, which is flexible to embed into structure objects.
2. Upgrade contents of the memory card (or Built-in memory) by simply inserting an USB flash drive
3. The player starts automatically when the IR body sensor detects an approaching viewer (optional and external)
4. Timer function: the player turns on / off at the same time everyday according to your setting
Main Function:
1. Play mp4 movie, mp3 music and digital photos; Built-in 21.5 inch TFT LCD screen; Flexible to embed into all kinds of structure objects.
2. Play from:
--Compact Flash card (CF / SD card)
--Compact Flash card (CF / SD card)
--USB flash drive
--Built-in memory
--Built-in memory
3. Upgrade contents of the memory card (or built-in memory) by simply inserting an USB flash drive, no need to take out of the memory card
4. Timer function: the player powers on / off automatically everyday at the time pre-set; It can also automatically play and non-stop replay within the pre-set time frame
5. No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing
6. IR (infrared) body sensor (external and optional): player starts automatically when the sensor detects an approaching viewer
7. Audio output (external): 2 X built-in high quality stereo speakers
| Model | AD2208WF | |
| LCD Screen | LCD Size: | 21.5 Inch |
| Active Area: | 476.64 (W) * 268.11 (H) (mm) | |
| Pixel Pitch: | 0.248 (W) * 0.248 (H) (mm) | |
| Screen Ratio: | 16:9 | |
| Resolution: | 1920 x 1080 (H*V) | |
| Brightness: | 250cd/m2 | |
| Color: | 16.7M (8-bit) | |
| Contrast Ratio: | 1000:1 | |
| View Angle: | 85°/85°/80°/80°(L/R/U/D) | |
| Response Time | 1.3/3.7 ms | |
| Support Formats | Video: | MPEG1 (VCD), MPEG2 (DVD), MPEG4 |
| Audio: | MP3, WMA | |
| Picture: | JPEG, BMP | |
| Play From | Memory Flash: | CF or SD card, Max. 8GB |
| Built-in Flash Memory: | Optional, confirm before production | |
| USB: | High speed USB 2.0 OTG (Host) | |
| Installation | Embedding | |
| Others | IR body Sensor Distance: | Optional, 3m |
| Remote Controller Distance: | 4-5m | |
| Input Voltage: | AC100V-240V (50HZ-60HZ) | |
| Power Supply: | DC4A, 48W (MAX) | |
| Speaker: | Built-in 2x2W high quality stereo loudspeakers | |
| Working Temperature: | 0°C-45°C | |
| Storage Temperature: | -20°C-45°C | |
| Working Humidity: | 20%-80% | |
| Storage Humidity: | 10%-95% | |
| Casing: | Metal cold-rolled plate | |
| Body Size: | 564.6(L) * 297.2(W) * 35(H) (mm) | |
| Body Weight: | (kg) | |
| Package | Standard Accessories | AC power adaptor, User's manual or CD disk, Remote control, Spare screws |
| Unit Size: | (cm) | |
| Unit Weight: | (kg) | |
| Carton Size: | (cm) | |
| Carton Weight: | (kg) | |
| Units Per Carton: | pcs | |
