CE Standard DP-420F 1 Row Paper Coffee Cup Lid Thermoforming Machine

CE Standard DP-420F 1 Row Paper Coffee Cup Lid Thermoforming Machine photo-1
CE Standard DP-420F 1 Row Paper Coffee Cup Lid Thermoforming Machine photo-2
CE Standard DP-420F 1 Row Paper Coffee Cup Lid Thermoforming Machine photo-3
CE Standard DP-420F 1 Row Paper Coffee Cup Lid Thermoforming Machine photo-4

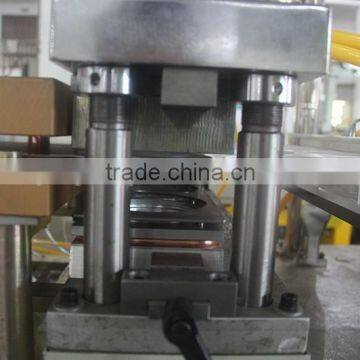

CE Standard DP-420F 1 Row Paper Coffee Cup Lid Thermoforming Machine photo-5
CE Standard DP-420F 1 Row Paper Coffee Cup Lid Thermoforming Machine photo-6
US$ 10,000 - 12,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, Plastic Cover
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO PORT
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Other, Plastic Cover
Place of Origin Zhejiang, China
Brand Name APT
Model Number DP-420F
Voltage 380V / 220V
Power(W) 4.6KW
Dimension(L*W*H) 2150*950*1750mm
Weight 800kg
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

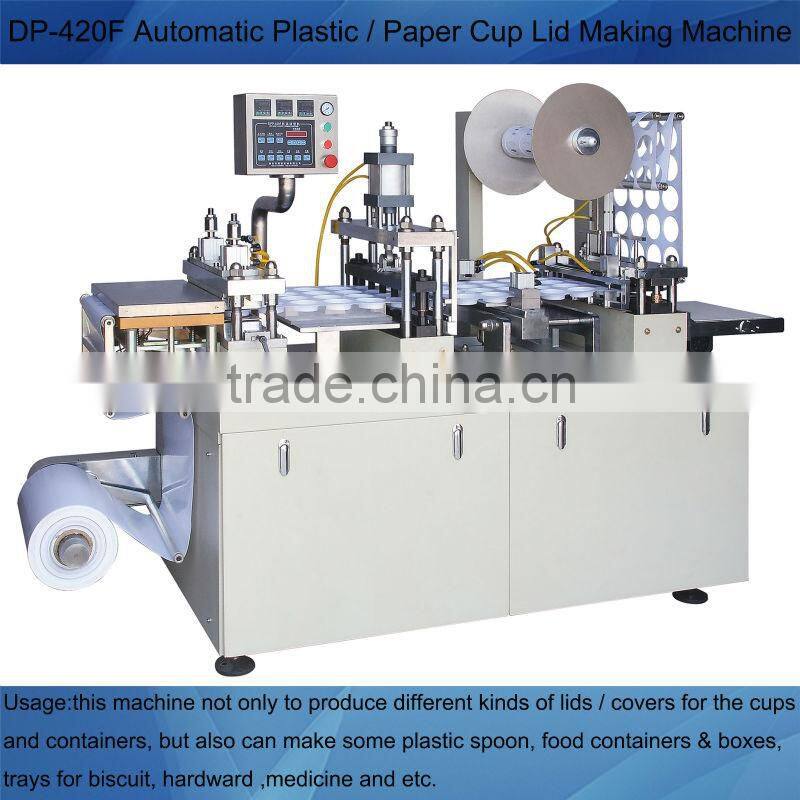

High Speed Paper Cup Lid Thermoforming Machine

(single row) Exported For Indian Market

CE Standard DP-420F 1 Row Paper Coffee Cup Lid Thermoforming Machine

CE Standard DP-420F 1 Row Paper Coffee Cup Lid Thermoforming Machine

Product Description

Main Features

1. All processing steps be done automatically , which saves labor and high efficiency .

2. This machine operation is convenient and stable performance .

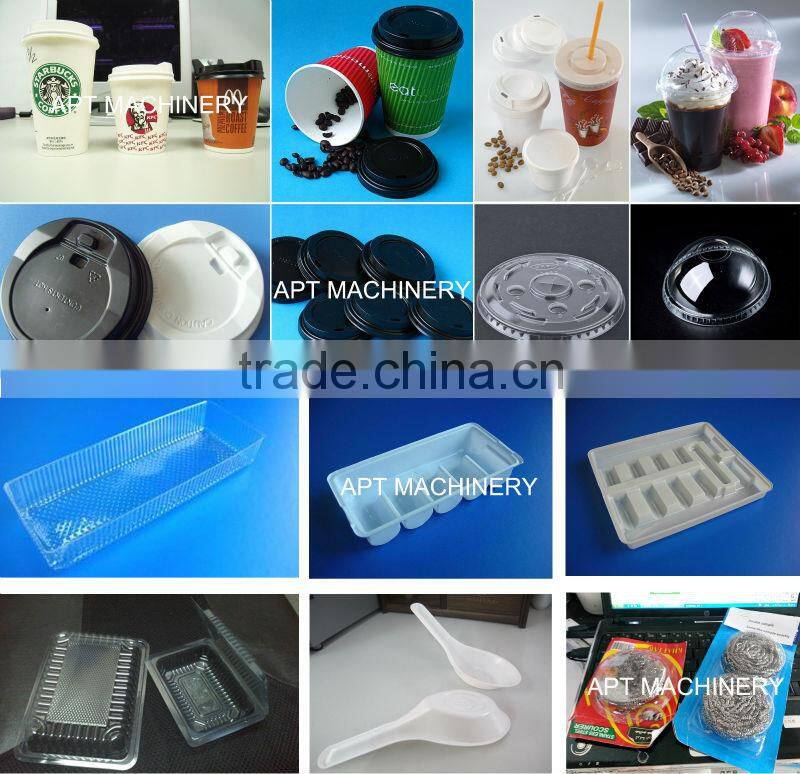

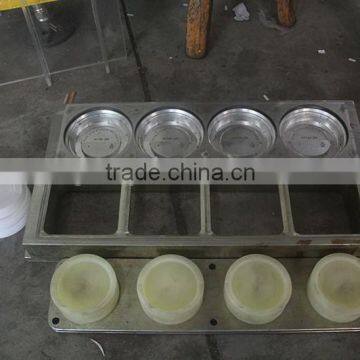

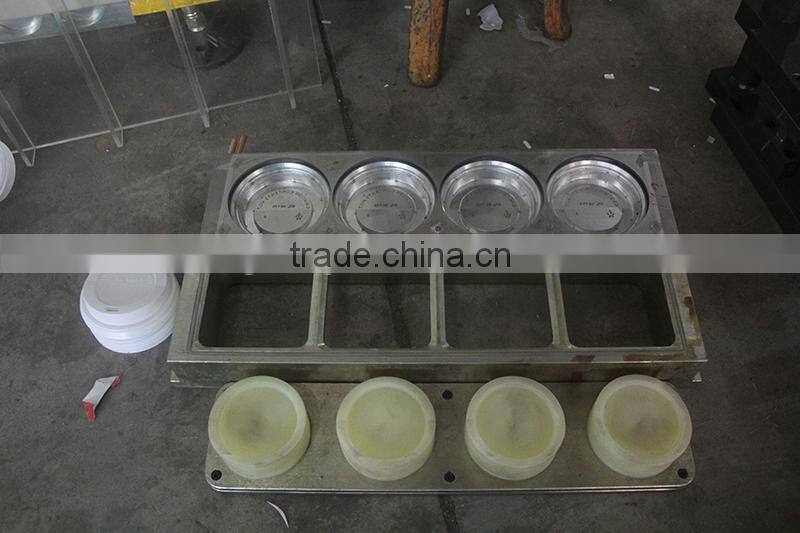

3. One machine can make different products, just change the mould, It has multifunction .

4. Machine can be customized according to customer requirement .

Technical parameters

Used material

PS / HIPS / PET / PVC Sheet Roll

Max.Forming Area

410*150mm



The machine can be customized



Max.Forming Depth

30mm

Forming Speed

8-32times/min

Sheet width for feeding

Max.430mm

Sheet Roll Diameter

600mm

Sheet Thickness

0.15-0.55mm

Water Consumption

0.3 m3/h (recycle)

Air Consumption

0.6-0.8 m3/ min,0.4-0.7Mpa

Total Power

4.6kw

Weight

800kg

Machine Dimension

2.7m*0.9m*1.6m (L*W*H)

Main Component List

No.

Item

Brand

1

Power Switch

Omron, Japan

2

Temperature Controller

Yatai, China

3

Breaker

CHNT, China

4

Mini Relay (LY2NJDC24V)

Omron, Japan

5

Urgent Stop Button

Schneider

6

Photoelectric Switch

China

7

Reduction Valve

China

8

Solenoid Valve

Airtec, Taiwan

9

1.5KW Main Motor

Lichao, Chao

10

Inverter

Invert, China

11

PLC

Siemens, Germany

12

Expansion Module

13

Touch Screen

Siemens, Germany

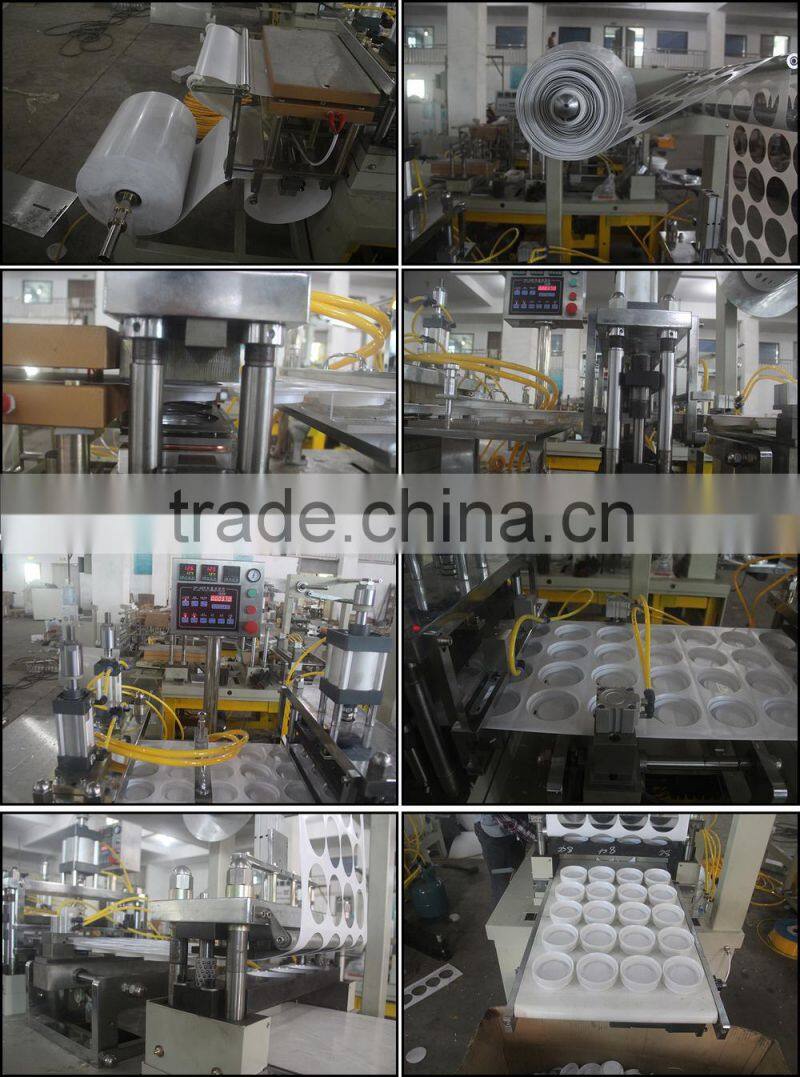

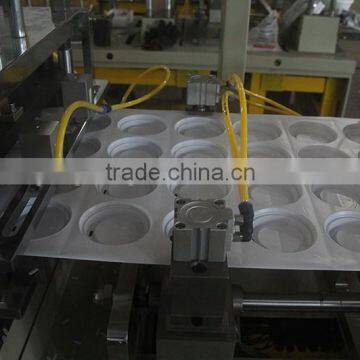

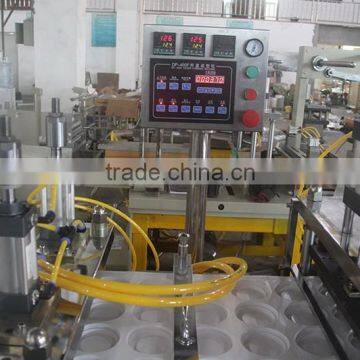

Machine Details CE Standard DP-420F 1 Row Paper Coffee Cup Lid Thermoforming Machine



CE Standard DP-420F 1 Row Paper Coffee Cup Lid Thermoforming Machine



CE Standard DP-420F 1 Row Paper Coffee Cup Lid Thermoforming Machine



 Home Website:   http://apt-group.en.china.cn/

 Product  Video Link:/watch?v=TQXrogv44_E



                                             /watch?v=uFcb5tKUq4g





                                             /watch?v=EesSCG4xF1U



CE Standard DP-420F 1 Row Paper Coffee Cup Lid Thermoforming Machine
