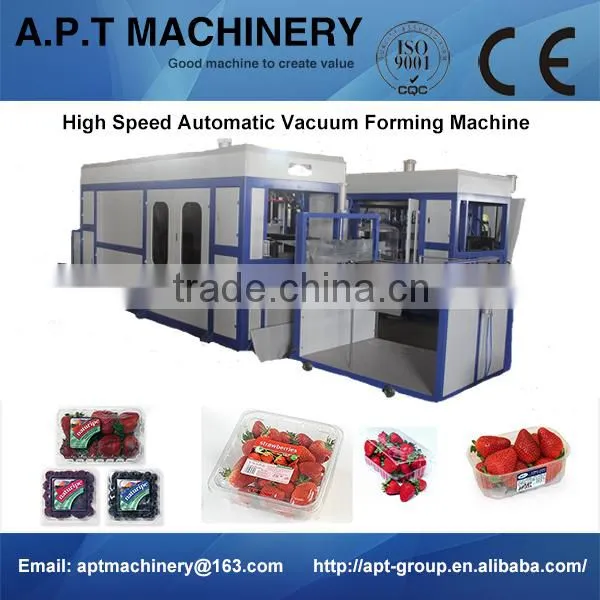

DH-700/1200 High-Speed Automatic Vacuum Forming Machine
I. Usage:
This machine is suitable for forming PS/PVC/PET/PP plastic sheet into various of containers, boxes, dishes, trays, bowls and lids.
II. Features:
1. The machine is designed total enclosed structure, which prevents the dust and enhances the
product’s health quality.
2. This machine uses the double-row photoelectric control system, the feeding width and length
even stepless adjustment(500mm-680mm, 700mm-1200mm), it is suitable for different
arrangement mould, the material using is high.
3. It adopts transducer to feed sheet, which is safe and reliable, the feeding error is about
1.5mm.
4. The heating system uses the horizontal type, which is convenient to replace the damaged
parts.
5. The guide pillar is flinty processing, conforms GB CODE (0.02mm-0.03mm) to strengthen
the down mould work smooth. The guide pillar need not lubricant, which reduces pollution and
maintains neat.
6. The material institution is all controlled by PLC, the feeding length is calm and correct.
7. Special wind-cool system makes the products shaping fast and demounding easily.
8. Poses the delay vacuum function and the second vacuum function.
9. The electric stove is all sealed, uses the heat preservation cotton to keep temperature, and
saves power is approximately 40% compared to other similar types.
10. Demold by shaking, may shake when taking off mold, take on mold for two times and protect
finished products, not deformation and not crack. Manual bottom wind can be used in
sample, will not deform or damage mold.
III. Main Technical Parameter:
Model |
DH-700/1200 |
Suitable Sheet |
PP, PS, PVC, PET |
Sheet Thickness |
0.1-1.5 mm |
Feeding Width |
500-700mm |
Feeding Length |
950-1220 mm (Stepless Adjustment) |
Max. Forming Area |
700mm×1200mm |
Max. Forming Depth |
150mm (Female Mould), 200mm (Male Mould) |
Running Speed |
3-8moulds/min |
Power Supply |
48KW (Max) |
Air Consumption |
1.5M3/min (External air supply) |
Working Pressure |
0.6Mpa |
Machine Dimension |
7500mm×2000mm×2250mm |
Machine Weight |
3000Kg |
We could make machine with single heating oven or double heating oven.

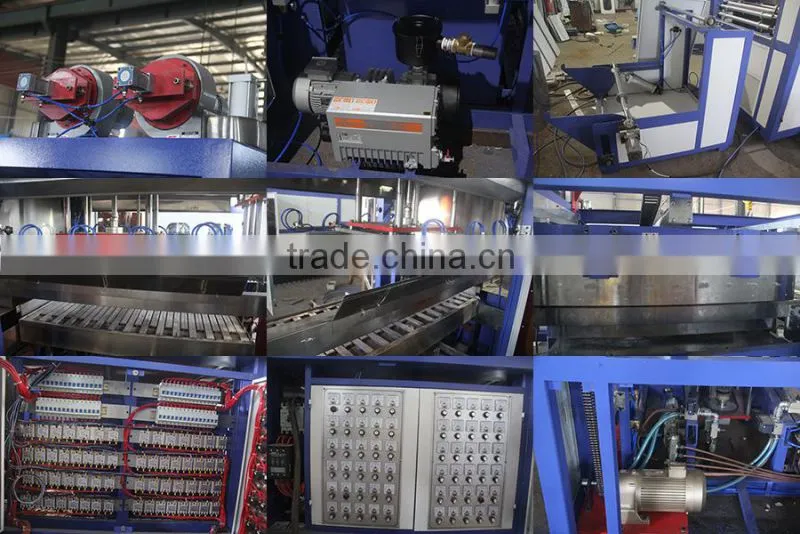

Product Details

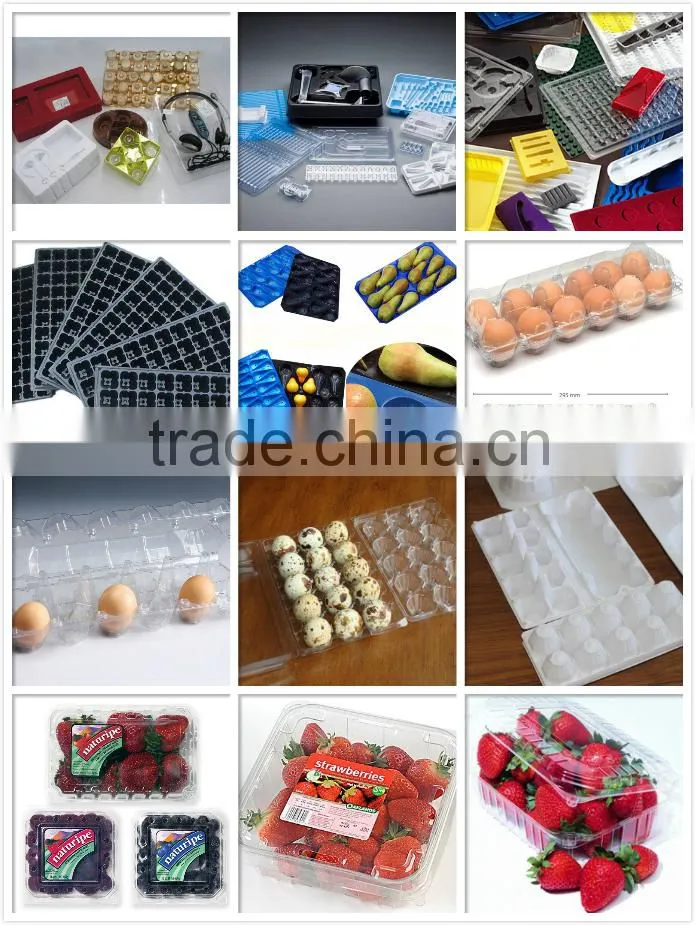

IV. Samples can be made by Thermoforming Machine:

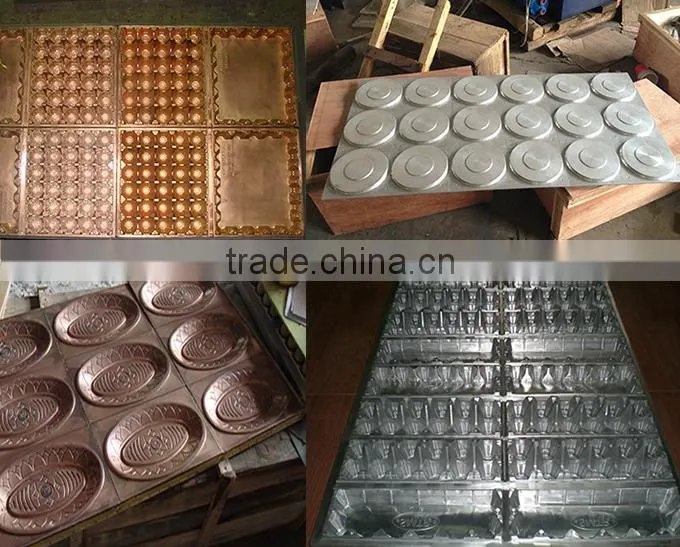

V. Moulds For Vacuum Forming Machine:
The mould we could make for DH-700/1200 Series vacuum forming machine is without cutting blade, so the products made by this machine are connected. We need to use punching machine (cutting machine) to cut them into single piece.

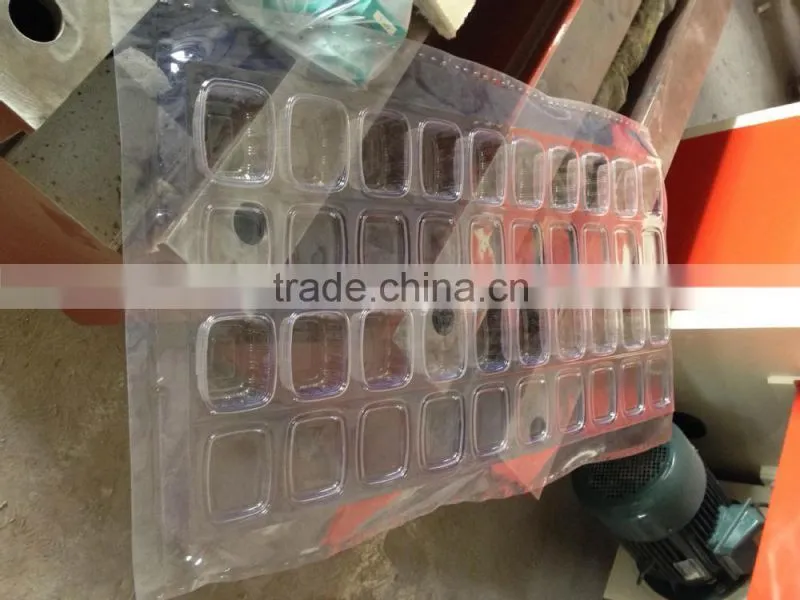

Pls see the products made by vacuum forming machine as following:

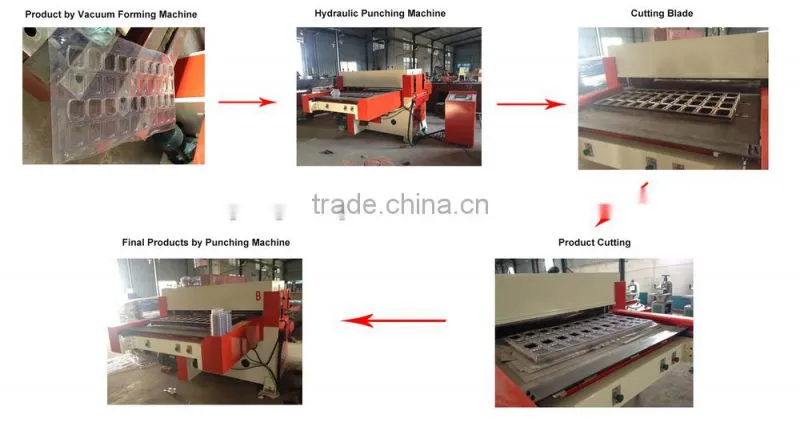

We need to use punching machine(cutting machine) to cut the formed sheet into single piece.
Pls see the details of punching machine (cutting machine) as following:

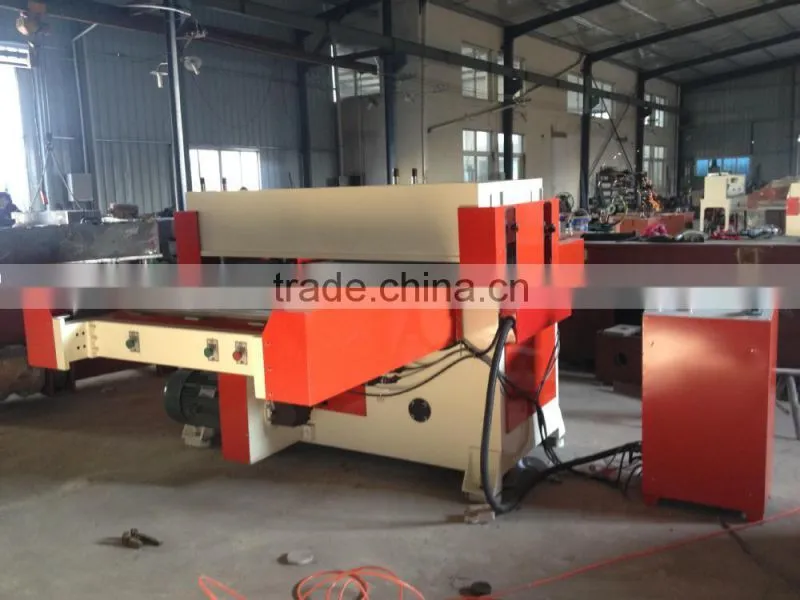

Duplex Working Position Hydraulic Punching Machine
Usage:
Duplex hydraulic puncher is popular cutting equipment throughout the world. It is mainly used for the one-off efficient cutting of the vacuum molding products. It also can be used for punching the EPE further processed product, which can be used in a single or duplex manner. It features easy mould change, faster punching speed and wide application etc.
Main Technical Parameter:
Model |
APT-1100X2 |
Punching Area |
1100 X1300mm2 |
Punching Height |
180mm |
Punching Speed |
2.4-4s/die |
Punching Pressure |
80T |
Motor Power |
5.5KW |
Cooling Water Pressure |
0.2Mpa |
Dimension |
4000 X 1600 X1830 |
Machine Weight |
6500Kg |
Power Voltage |
3-phase, 380V/50HZ |
Note: We have several types of punching machine (cutting machine) and we’ll recommend according to customer’s products and request.

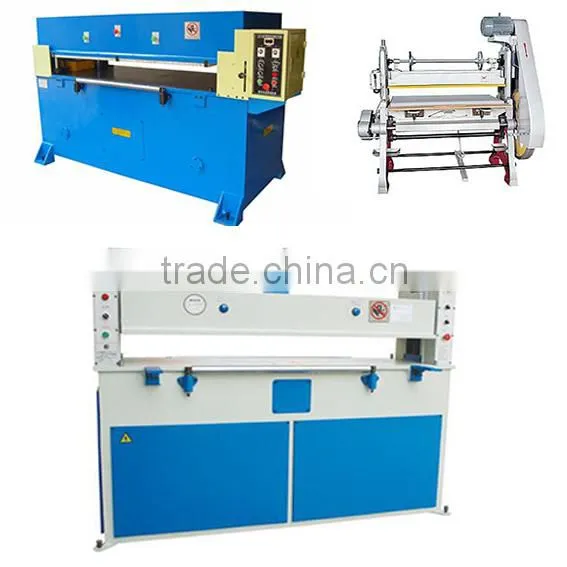

Other options of punching machine are as following:

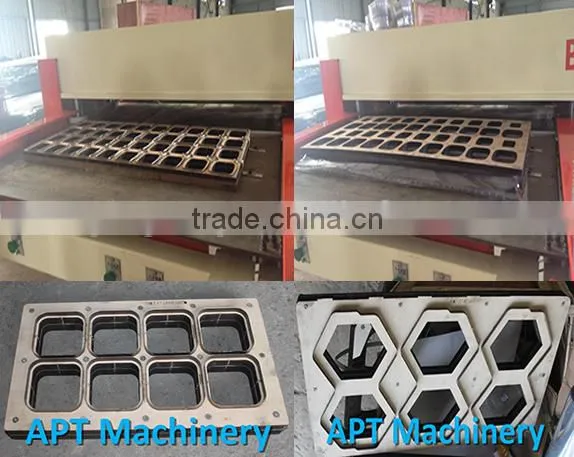

Cutting Blades For Punching Machine (Cutting Machine) are as following:
We make cutting blades according to customer’s samples.

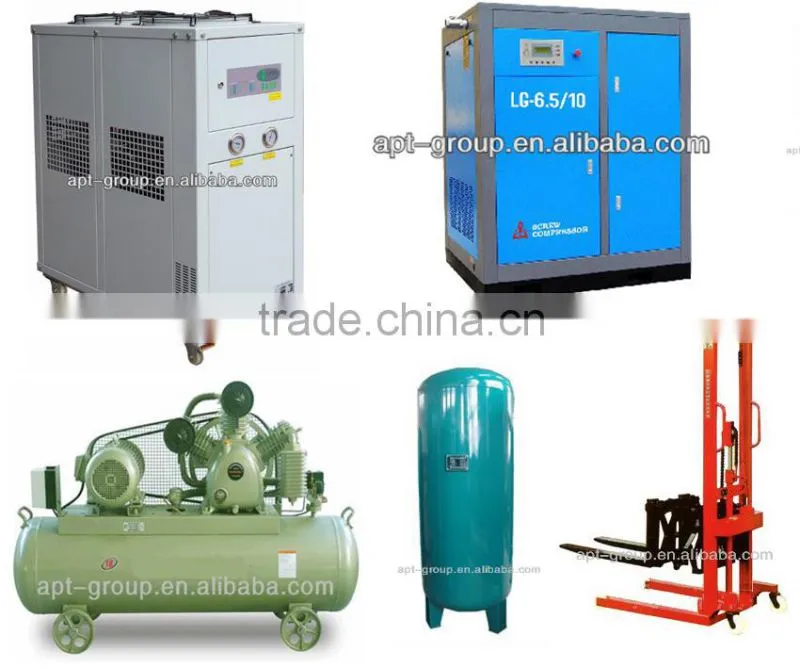

VI. Auxiliary Machines For Vacuum Forming Machine:
VII.Shiping And Packing:
VII.Shiping And Packing:
Pillow Packing Machine Themoforming Machine Cup Rim Curling Machine Cup Counting & Packing Machine
