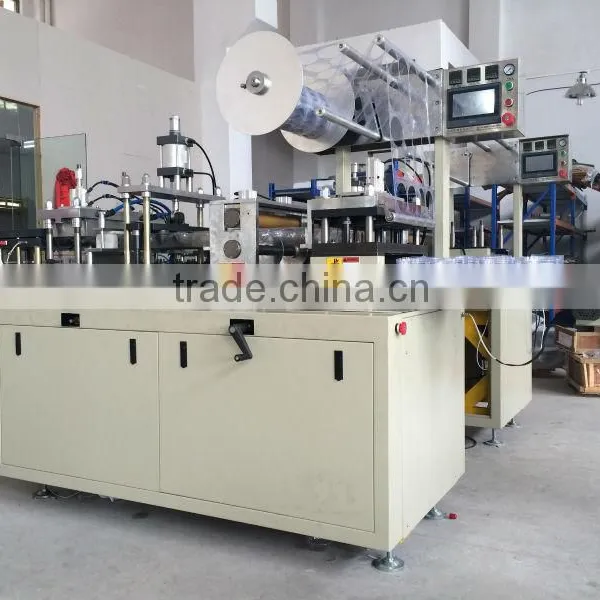

Help Center2014CE Standard DP-420F Tray Thermoforming Machine
Related Products
-
Plastic Spoon Making Machine, HIPS Spoon Molding Machine, PS Spoon Thermoforming MachineUS$ 10,000 - 12,800MOQ: 1 Set -
Paper Cup Lid Forming MachineUS$ 23,000 - 26,000MOQ: 1 Set
-
Automatic Plastic Glass Mouth Curling MachineUS$ 15,000 - 17,000MOQ: 1 Set
-
Automatic Plastic PET/PVC/PP/PS Cup Mouth Curling MachineUS$ 15,000 - 17,000MOQ: 1 Set
-
Automatic Plastic PET/PVC/PP/PS Cup Rim Curling MachineUS$ 15,000 - 17,000MOQ: 1 Set
Technical parameters
Used material |
PS / HIPS / PET / PVC Sheet Roll |
|
Max.Forming Area |
410*150mm |
The machine can be customized
|
Max.Forming Depth |
30mm |
|
Forming Speed |
8-32times/min |
|
Sheet width for feeding |
Max.430mm |
|
Sheet Roll Diameter |
600mm |
|
Sheet Thickness |
0.15-0.55mm |
|
Water Consumption |
0.3 m3/h (recycle) |
|
Air Consumption |
0.6-0.8 m3/ min,0.4-0.7Mpa |
|
Total Power |
4.6kw |
|
Weight |
800kg |
|
Machine Dimension |
2.7m*0.9m*1.6m (L*W*H) |
|
Main Component List
No. |
Item |
Brand |
1 |
Power Switch |
Omron, Japan |
2 |
Temperature Controller |
Yatai, China |
3 |
Breaker |
CHNT, China |
4 |
Mini Relay (LY2NJDC24V) |
Omron, Japan |
5 |
Urgent Stop Button |
Schneider |
6 |
Photoelectric Switch |
China |
7 |
Reduction Valve |
China |
8 |
Solenoid Valve |
Airtec, Taiwan |
9 |
1.5KW Main Motor |
Lichao, Chao |
10 |
Inverter |
Invert, China |
11 |
PLC |
Siemens, Germany |
12 |
Expansion Module |
|
13 |
Touch Screen |
Siemens, Germany |
Main Features
1. All processing steps be done automatically , which saves labor and high efficiency .
2. This machine operation is convenient and stable performance .
3. One machine can make different products, just change the mould, It has multifunction .
4. Machine can be customized according to customer requirement .

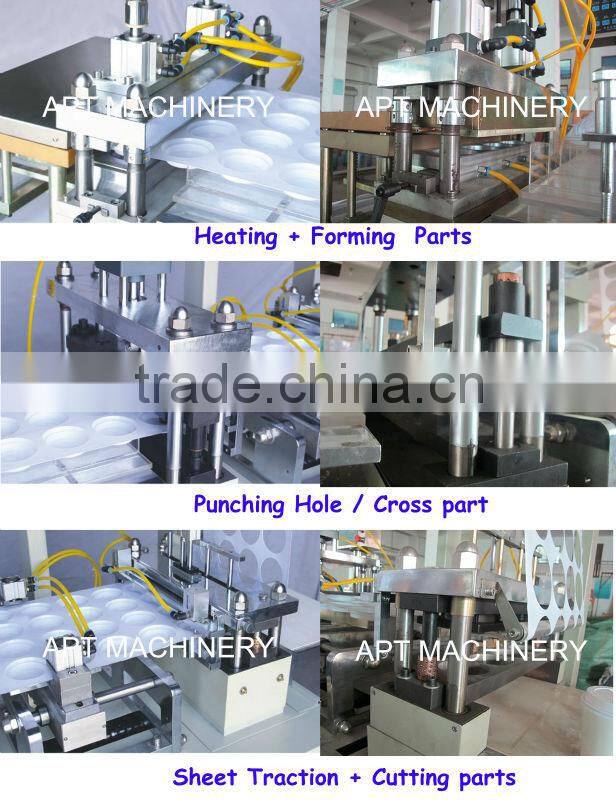

Mechanical Parts

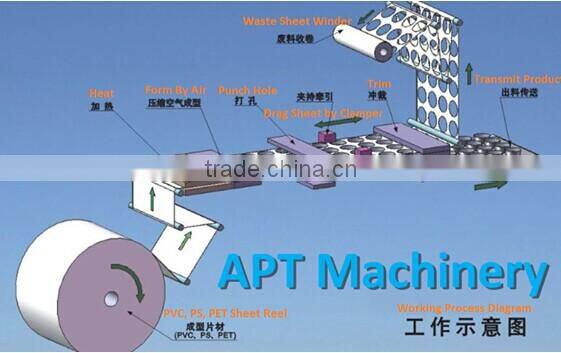

Working Process
Loading

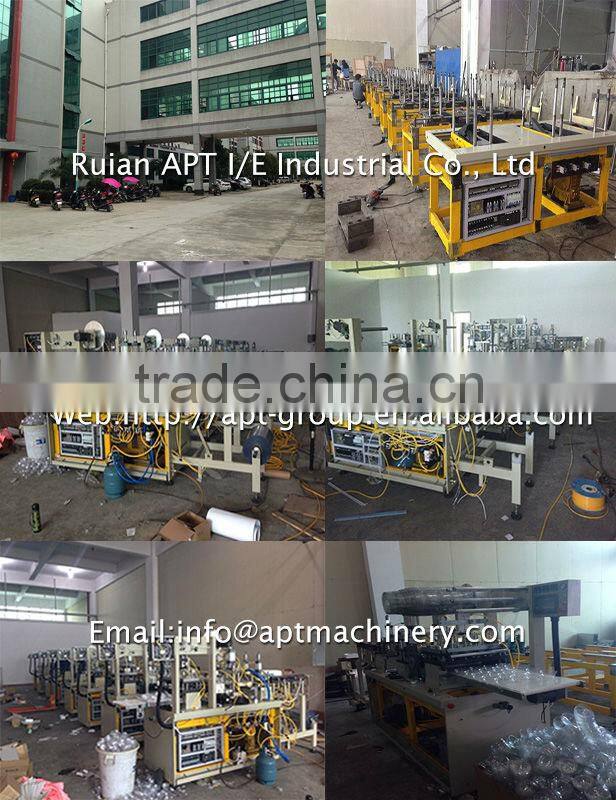

Our workshop
Thanks a lot for viewing our product ! ^_^ If you are interested in our product and
have any question, welcome to contact me any time ! Looking forward to your inquiry !
Wish you a nice day! (Skype ID: aptmachinery)
