Water Cooling PE Flake Granulator, Waste PE Recycle Machine, Recycle PE Flakes Machine Line, Pelletizer PP Material Machine Line

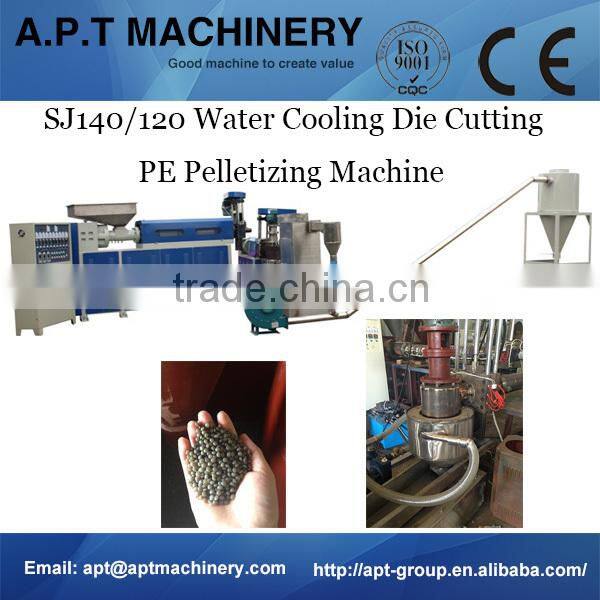

LY-140/120 DOUBLE STAGE WATER COOLING PLASTIC RECYCLING MACHINE

General Feature:

Material suitable to recycle: PE, PP, PS etc

Power supply: 3-P, 380V; 50Hz

Output: 150-230Kgs/H

Machine weight: around 4500kgs

Installation dimension: 13000mm×1800mm×2500mm

First stage:

Motor: 55kw-4P, Brand: Weinuo, from Nanjing city.

Control method: by inverter, brand: Pioneer from Shanghai city.

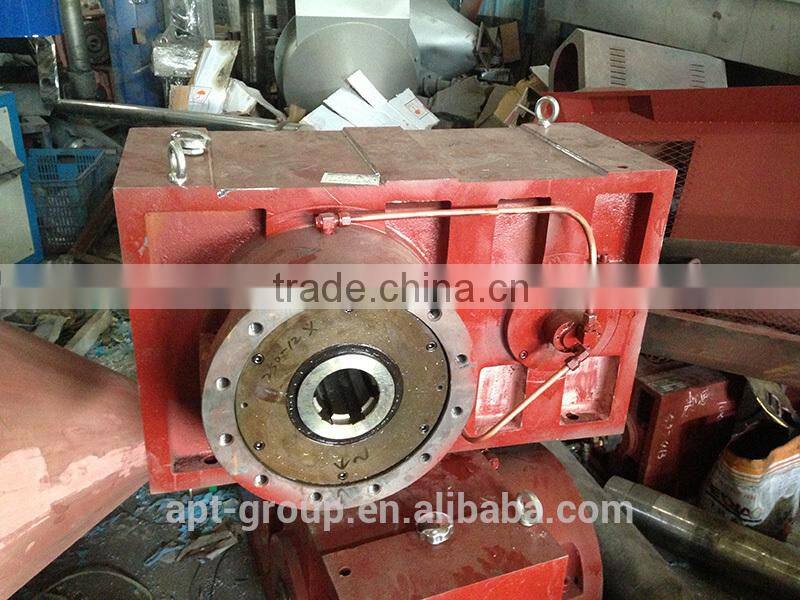

250# Gearbox: Hard-Tooth Surface, brand: Shuguang, from Xiaoshan city

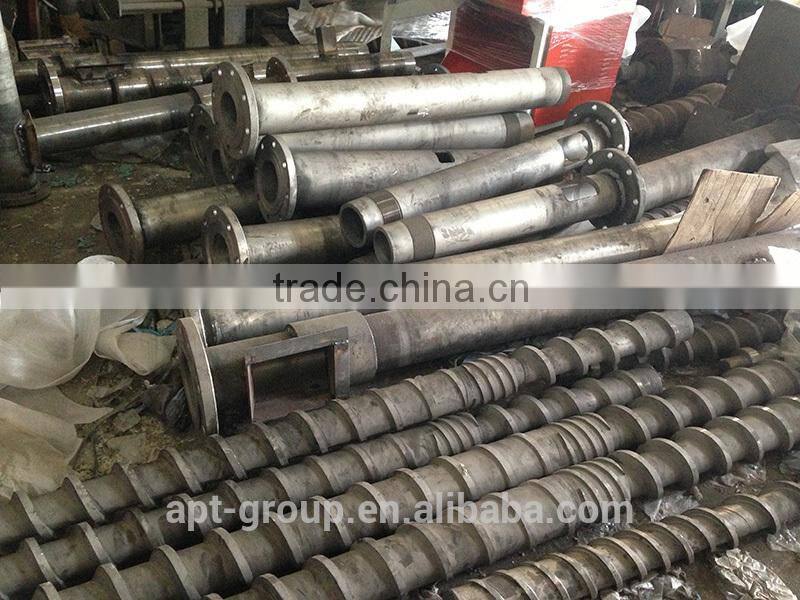

Screw barrel material: 38CrAlA.

Screw Dia.: 140mm; Barrel Dia.:190mm

L/D ratio: 22:1

Screw length: 3000mm

Barrel heater: Ceramic heater

Hydraulic controlled screen changer

Sieve dia.: 250mm

Material Hopper: designed with compulsory feeder to push the crushed scraps into screw barrel more faster.

Feeder motor: 1.5KW-6P with inverter control

Second stage:

Motor: 18.5kw-4P, Brand: Weinuo, from Nanjing city.

Control method: by inverter, brand: Pioneer from Shanghai city.

180# Gearbox: Hard-Tooth Surface, brand: Shuguang, from Xiaoshan city

Screw barrel material: 38CrAlA.

Screw Dia.: 117mm; Barrel Dia.:160mm

L/D ratio: 10:1

Screw length: 1200mm

Barrel heater: Stainless steel heater

Hydraulic controlled screen changer

Sieve dia.: 220mm

Water tank: made by thick steel, 2500×500×300MM

Air blowing dryer: 1 set

Fan motor power: 1.5KW

Rotary Normal Speed Cutter: 1set

Adjustable Speed Motor: 3KW, brand: Weinuo from Nanjing city

Electrical Control cabinet: 1 set

Circuit breakers: Schneider

Contact: brand: Schneider

Ameter: brand:Huali, China

Heating temperature: Huali, China

Heating zone: 10 zones

Customer’s Special requirements:

1.The barrel should be two halves

2.Main extruder: belt pulley of the gear box diameter should be 450-5C.

3.Bearing for rotary speed cutter: SKF brand.

4.The entry of screen should have a conical degree to avoid the sieve dropping down.

Free spare parts with the machine:

Air switch: 1pc

Contact: 1pc

Ameter: 1pc

Heating temperature: 1pc

Main extruder barrel heater: 1pc

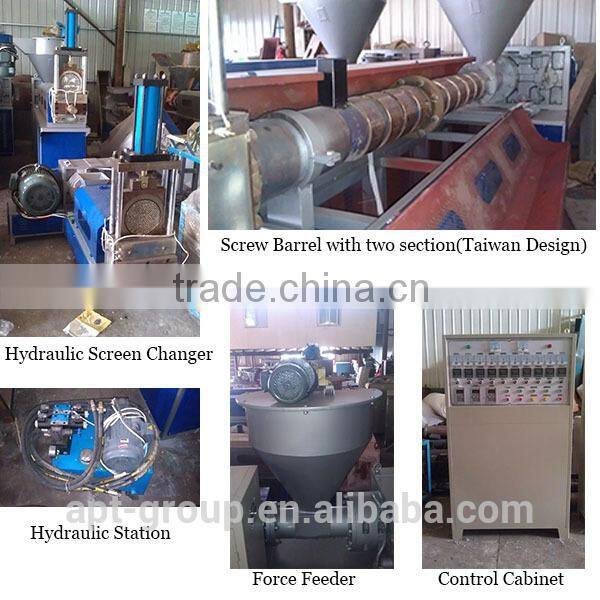

Manufacturing Workshop:

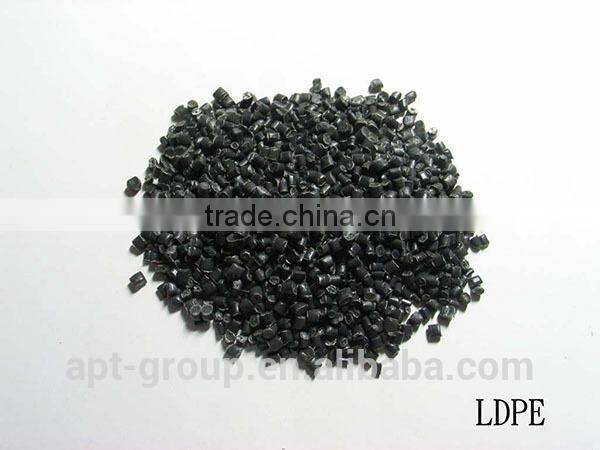

Granulated Pellets:

Shiping And Packing

Home Link

More details you could visit our home website:http://aptgroup.en.china.cn/

Similar product

FAQ

1.Machine adjustment and installation

    we can send technicians go to customers' country for mahchine adjustment and installation

2.Guarantee time and after-sale

   one year guarantee time, after one year , we have professional after-sales department

    providing best service if any problems.
