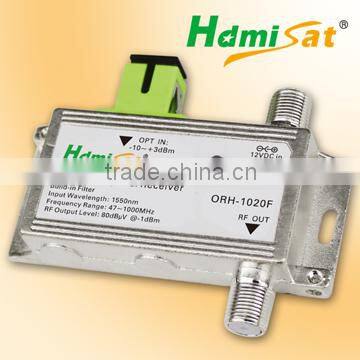

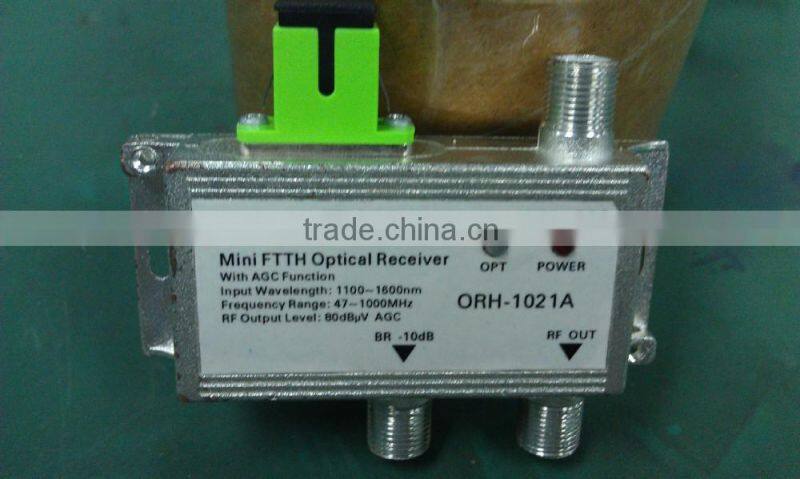

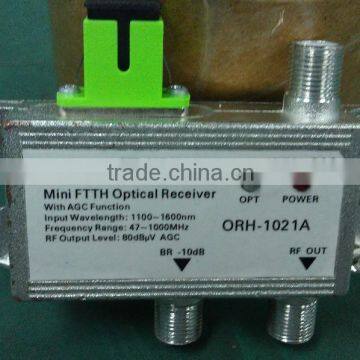

Specifications
1. Designed for FTTH(Fiber To The Home) networks2.Single-mode fiber high return loss
3.Smaller size and easier install
Features
1. Designed for FTTH(Fiber To The Home) networks
2. Excellent linearity and flatness
3. Wide range of optical input power
4. Single-mode fiber high return loss
5. Using GaAs amplifier active devices
6. Ultra low noise technology
7. Smaller size and easier install
8. Red-LED for power indication
9. Double color LED for optical power indication (Non-lighted:optical power<-10dBm,Green:-10dBm<optical power<+3dBm,Red:optical power>+3dBm)
10. Build-in filter
Specifications
Number Item |
Unit |
Description |
Remark |
| Customer Interface | |||
| RF Connector | F-female | ||
| Optical Connector | SC/APC or FC/APC | ||
| Power Supply | F-female | ||
| Optical Parameter | |||
| Responsivity | A/W | ≥0.9 | |
| Input Optical Power | dBm | -10~+3 | |
| Optical Return Loss | dB | ≥45 | |
| Input Wavelength | nm | 1550±20 | |
| Optical Fiber Type | Single Mode | ||
| RF Parameter | |||
| Frequency Range | MHz | 47-1000 | |
| Flatness | dB | ±0.75 | |
| Output Level | dBµV | ≥80 | -1dBm input power |
| CNR | dB | ≥50 | -1dBm input power |
| CSO | dB | ≥62 | |
| CTB | dB | ≥65 | |
| Return Loss | dB | ≥16 | |
| Output Impedance | Ω | 75 | |
| Other Parameter | |||
| Power Supply | VDC | 12 | |
| Power Consumption | W | <2 | |
| Dimensions | mm | 75*63*17 | |
Company Profile
HdmiSat Technology Co., Ltd is a fast growing company engaged in researching & developing, manufacturing and marketing a complete series of set-top box. We enjoy an excellent reputation from home and abroad with high quality products, competitive prices, personalized service and prompt delivery!

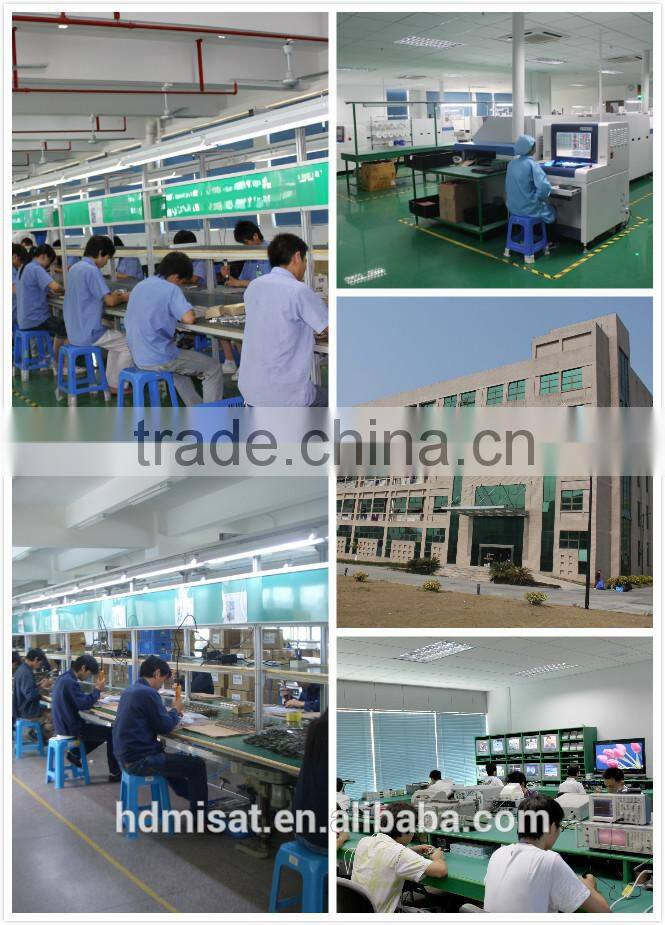

Company Scale
We are supported with a strong R & D team of more than 30 expericenced engineers and a strict QC team to inspect every process of production to ensure the best quality of our products. Moreover, we own a large-scale factory with an area of 8807.6 square meters and more than 400 workers for 10 production lines.
Product Strength
Our set-top boxes cover a diversified range of series: DBV-S/S2, DVB-T/T2 and ISDB-T. The product housing designs are dedicate and novel. Every component on the pcb is compliant with ISO Standard. Software update is timely and can be provided to our customers free of change for no time limitation. The functions of the STB are customized for every of our customers. Besides, by enhancing the production efficiency and making efforts in seeking and bargaining with our component suppliers to reduce cost in every aspect, our price is very competitive in the oversea market.
Oversea Market
Through the 15 years’ accumulation of experience and customer base, we develop step by step with our unremitting efforts and firm belief. Our oversea market is growing year by year including Africa, Middle East, South-East Asia, Russia and South America. We will never satisfy our achievement and stop advancing. The next strategy of us is to explore the markets of Western Europe, America and Australia and push our products to high-end products.
Mission and Commitment
“Your satisfaction is what we are pursuing all the time” is our commitment to every of our dear customer, aiming at long-term mutually beneficial business partnership in the future. The perfect follow up service of our company is the foundation for us to win your trust and support
white box: 158*148*68mm
30pcs/ctn
carton size: 46.4*36*34cm
[White box] [Gift box] [OEM box] optical
