Usage:

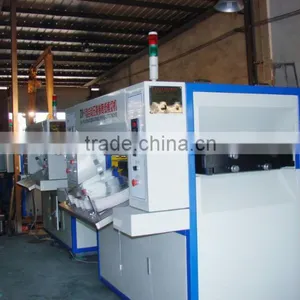

ZDM-1 Automatic Hi-Speed Roll Paper Die-Cutting Machine is professional equipment for pressing and die cutting plain paper and PE coated paper, which is suitable for printing, packing, paper cup and other paper container manufacturing industries.
It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic clutch, centralized oil lubrication, overload protection and distinctive gearing. So it guarantees smooth operations of returning paper and feeding paper, precise positioning and orderly withdrawing. All the key parts and controls of the machine are imported products and finish machining. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, safety and reliability during the machine's operation.
Main Technical Parameters:
Cutting Precision |
±0.10mm |
Rated Cutting Speed |
60~110 times/minute |
Max. Rated Cutting Speed |
110 times/minute 5400 times/hour |
Max. Cutting Pressure |
120T(250N/cm2) |
Max. Cutting Size |
900×500mm/1000×500mm |
Air Supply Requirement |
working pressure:0.5-0.6Mpa air volume:0.1m3/minute |
Suitable Paper |
135~500g/m2 |
Installed Power |
11KW |
Main Motor |
7.5kw |
Dimension(L×W×H) |
4000×1700×1700mm |
Weight |
6000kg |
Operation Condition |
Ventilation, drying workshop, suggested temperature:10-25°C |
Paper Roll Size |
Diameter≤1400mm Width≤1000mm |
