Water-ring Cutter Type Double-stage Waste Plastic Film Pelletizer
Application:
The Cantilever Pelletizer is designed to produce uniform pellets in wide varieties of size for most of any plastic material.
Parameters of the pelletizer/cutter/granulator
|
Machine Model |
Motor Power |
Speed Control |
Number of Strand |
Maximum Hauling Speed |
Particle Size (mm) |
Maximum Output (kg/h) |
Rotating knife dia.×L (mm) |
Rotating knife teeth |
Rubber diameter L(mm) |
Dimension (mm) (L×W×H) |
|
LQ-300 cantilever |
3~4 |
Slip / Inverter |
≤14 | 96 | φ3×3 | ≤300 | φ120×100 |
32
|
φ200×100 | 1270×750×1510 |
|
LQ-300 planer type |
3~4 |
Slip / Inverter |
≤14 | 96 | φ3×3 | ≤300 | φ120×100 | 24 | φ100×150 | 790×710×1570 |

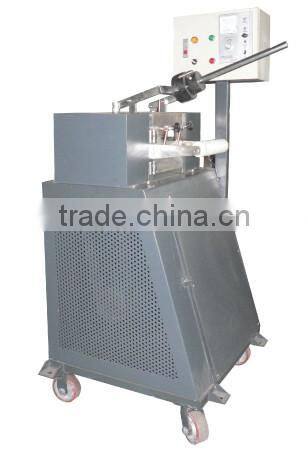

Cantilever Pelletizer/Cutter/Granulator

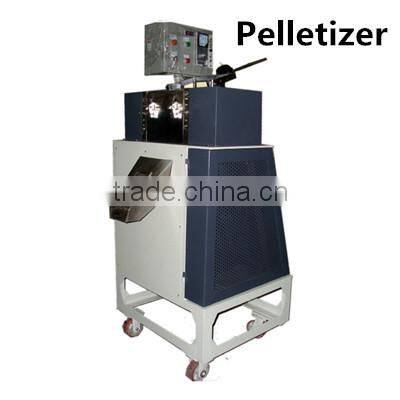

Planer Type Pelletizer/Cutter/Granulator

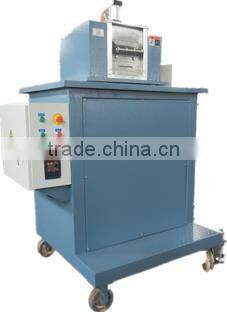

Gantry Type Cutter/Pelletizer/Granulator Specially for Soft Rubber
Imported Pelletizer/Cutter/Granulator

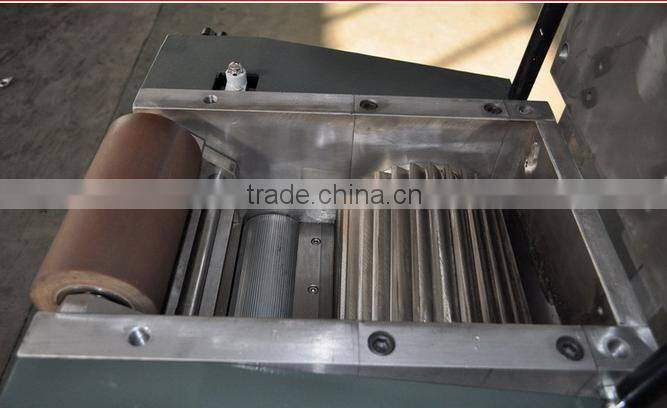

Elements of the Planer Type Cutter/ Pelletizer/ Granulator

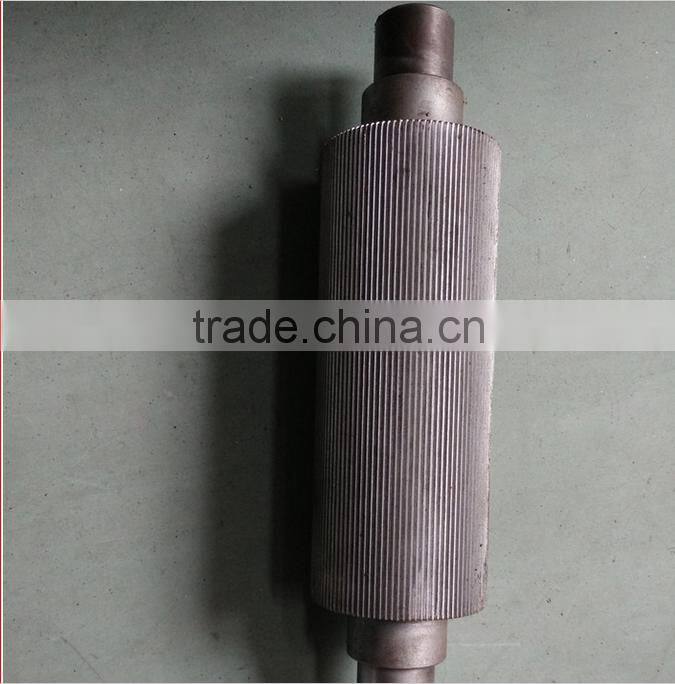

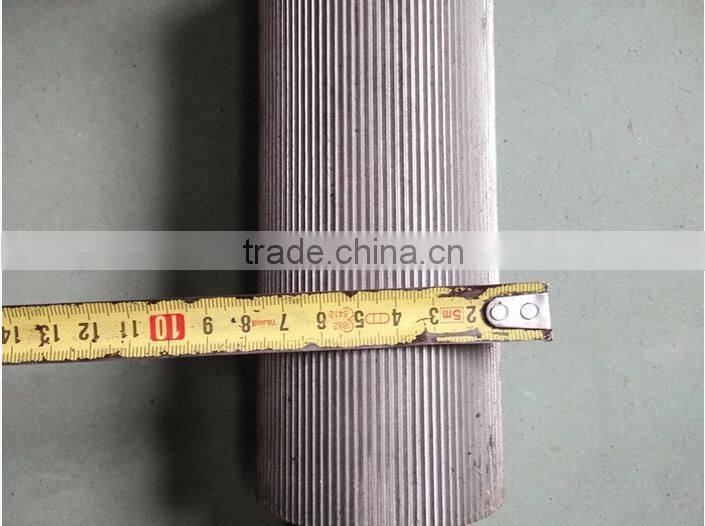

Fixed Knife and Moving Blade
Iron bar
Parameter table of various pelletizer/cutter/granulator machine
Parameter table of various pelletizer/cutter/granulator machine
Model |
HS-LQ 60 |
HS-LQ 300 |
HS-LQ 500 |
HS-LQ 900 |
Max output |
60kg/hr |
300kg/hr |
500kg/hr |
900kg/hr |
No. of strand |
6 |
15 |
625 |
42 |
Standard pellet |
3*3mm |
3*3mm |
3x3mm |
3x3mm |
|
Cutter dimension (L*W*H) |
120x60mm, 14 tooth |
120x100mm, 32 tooth |
200x200mm, 32 tooth |
200x300mm, 32 tooth |
Effective rotation speed |
350-1000rpm |
350-1000rpm |
350-1000rpm |
350-1000rpm |
Haul off speed |
0-36m/min |
0-96m/min |
0-96m/min |
0-96m/min |
Motor power |
1.5kw |
3kw |
5.5kw |
11kw |
Rotated cutter clearance |
0.06-0.12mm |
0.08-0.12mm |
0.08-0.12mm |
0.08-0.12mm |
Leading roller |
PU |
PU |
PU |
PU |
Driver control |
Frequency inverter |
|||
AC motor |
3 Phase / 380 V / 50 Hz |
|||
Material of cutter |
High-speed Steel / Hard Alloy |
|||
Characteristics of the plastic pelletizer/cutter/granulator machine
High quality & reasonable price
Low noise
Easy operation
Available for various plastic raw material, like PP, PA, PBT , ABS, AS, PC, POM, PPS, PET, etc.
Produced as customer required
Motor can be controlled by Frequent Inverter control to meet customer productivity demand.
Before-sale
Introduce products in details
Recommend suitbale solution
Offer test
During manufacturing:
Provide layout and engineering conditions
Offer screw plan and related documents
Inform the project processing status
Insure the product designed in accordance with technical document
After-sale:
Provide installation,commissiong and training
Offer spare parts
Provide necessary technical support and update information
1. Q: How can we go to your factory?

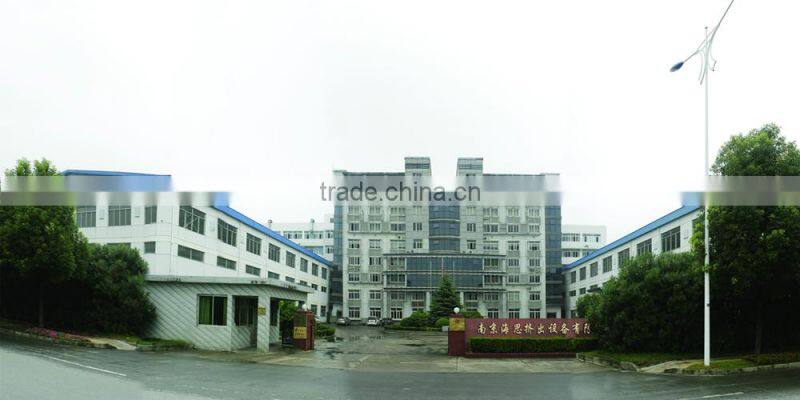

R:Our factory is located in Nanjing jiangning, Jiangsu Province, China,
1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport; about 20 mintues to our company
2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.about 8 mintues to our company
All our clients, from domestic or abroad, are warmly welcome to visit us!
2. Q: Why chose us?
R: 1)Quick reply. Once we received the inquiry from Alibaba, we will reply you within 24hours.
2)Quick manufacturing time. To guarantee the quality, the machine will be finished within 60days.
3) Before delivery, the machine will be tested to ensure every part is ok.

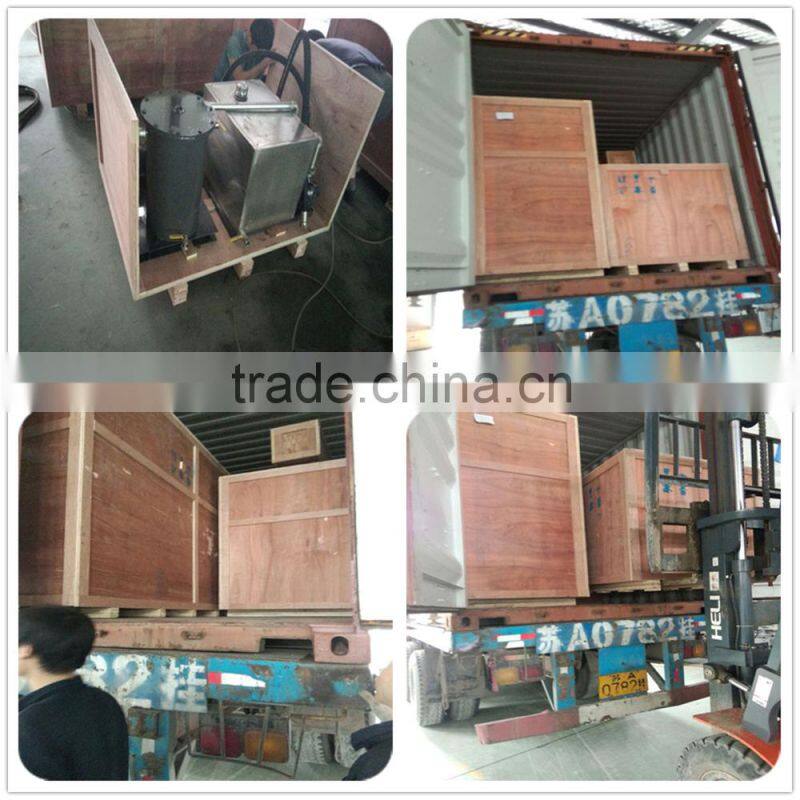

4) Wooden case package to ensure no damage during shipping.
3.Q:What is the payment?
R: 1) T/T payment; 2) LC;
