Help Center2016 HD Hot Sale ISDB-T Receiver /STB
Related Products
-
1080P FULL HD Dvb t2 in Digital TypeUS$ 7 - 15MOQ: 1000 Pieces -
Digital Free to Air HD Dvb-t2 Modulator 1080pUS$ 7 - 15MOQ: 1000 Pieces
-
2016 Top-rated Dvb t2 Set Top Box RussiaUS$ 7 - 15MOQ: 1000 Pieces
-
2016 hd Fta Dvb t2 ReceiverUS$ 7 - 15MOQ: 1000 Pieces
-
2016 New HD FTA Dvb t2 Receiver Support Time Shift PVRUS$ 6 - 10MOQ: 1000 Pieces
Located in Zhuhai National Hi-Tech Industry Development Zone, we, Zhuhai Gecen Technology Co., Ltd, have been persisting in the development strategy of High Starting Point, High Technology, High Quality and High Efficient since founded. At present, we have our own leading core technology and the capability of sustainable research and development. Our turnover is increasing geometrically in recent years due to mature technology, very high quality products and strong market response ability. Moreover, our products are taking a large percentage in Middle East, Southeast Asia and Americas market rapidly which makes Gecen become one of the outstanding manufacturers in this field among the world. Nowadays Gecen this brand has become a well-known brand in SATV and CATV industry.
Digital set top box, LNB, TV signal finder meter and the relevant accessories are our major products. Meanwhile we embark on prospective researches such as DTMB, AVS+ and TV dongle reserve projects according to the latest international and domestic technology standard and the development trend in order to stay in the leading position in future years
Model:HDTR230 (MSD7805 )
SIZE:170*96*40mm
Standard:ISDB-T
Features:• Fully Compliant with ISDB-T
• Support MEPG-4 AVC(H.264) MP/HPL4.1
Support MEPG-2 MPHL/ML
• HE AAC5.1, HE AAC+, DD, DD+ (Dolby is optional)
• Multi Bandwidth: 6M 7M & 8M
• Supports 64QAM, 16QAM and QPSK (4QAM) sub-carriers
• Video decoding and output: 1080p/1080i/720p
• Analog Video output: PAL/NTSC
• Conversion between SD programs and HD programs
• USB2.0 supported for upgrade, PVR and time shifting
• SupportParental Control,Teletext,Subtitle
• Aspect ratio: 4:3/16:9,By Pan & Scan and Letter Box conversion
• Electronic program guide (EPG)
• Software upgrade (OAD or USB)
• 32 bits true color OSD
• Program editor
• Support Favorite Group
| Model | HDTR230 | |
| Standard | ISDB-T | |
| Features | • Fully Compliant with ISDB-T • Support MEPG-4 AVC(H.264) MP/HPL4.1 Support MEPG-2 MPHL/ML • HE AAC5.1, HE AAC+, DD, DD+ (Dolby is optional) • Multi Bandwidth: 6M 7M & 8M • Supports 64QAM, 16QAM and QPSK (4QAM) sub-carriers • Video decoding and output: 1080p/1080i/720p • Analog Video output: PAL/NTSC • Conversion between SD programs and HD programs • USB2.0 supported for upgrade, PVR and time shifting • SupportParental Control,Teletext,Subtitle • Aspect ratio: 4:3/16:9,By Pan & Scan and Letter Box conversion • Electronic program guide (EPG) • Software upgrade (OAD or USB) • 32 bits true color OSD • Program editor • Support Favorite Group |
|
| CPU and Memory | CUP | MSD7805 |
| MIPS 34K600 MHz | ||
| DDR2 | DDR2 512Mbit(64MByte) | |
| Flash | 32Mbit(4MByte) | |
| Tuner | Connector Type | ANT In(IEC-Female),ANT LOOP(IEC-Male) |
| Input Frequency | (UHF)470866MHz, (VHF)170230MHz | |
| Bandwidth | 6, 7, 8MHz | |
| Signal Input Level | -78-20dBm | |
| Input Impedance | 75 Ohm | |
| Active Antenna | 5V(On/Off), Imax=100mA | |
| Demodulation Scheme | QPSK, 16-QAM, 64-QAM | |
| 1FFT | 1K, 2K, 4K, 8K, 16K, 32K | |
| FECE mode | 1/2, 2/3, 3/4, 5/6, 7/8 | |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 | |
| Software Function | EPG | Fully support to 7 days Electronic Program Guide(EPG) |
| Video Decoding | MPEG1, MPEG2, MPEG4, H264, VC-1, MOTION JPEG, MPG, MP4 | |
| Video Format | avi, mp4, mkv, mov, dat, flv, mpg, vob, 3gp, ts | |
| Audio Decoding | MPEG1-L1/L2/L3, wma,AAC | |
| Audio Format | mp3, wma, agg | |
| Picture Format | JPEG, BMP, PNG | |
| Video Resolution | 480i, 480P, 576i, 576P, 720P, 1080i, 1080P | |
| Video Aspect Ratio | 4:3(LB/SCAN), 16:9(LB/FIT) | |
| Analog Video System | PAL, NTSC, SECAM | |
| OSD Language | nine kinds of language | |
| LCN Sort | Support Logic Channel Number(LCN) | |
| Teletext | VBI insertion for Teletext,CC and WSS | |
| Time Shift | Support Time Shift | |

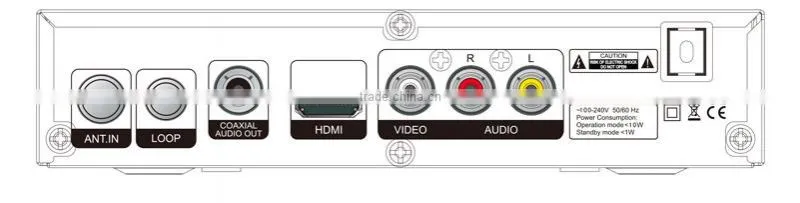

| Hardware Interface | Video Output | RCA(CVBS, L/R), HDMI Interface |
| SPDIF Output | 1*Coaxial | |
| USB Interface | 1*USB2.0 | |
| Button | POWER, CH-, CH+ | |
| Power supply | AC Input 100~240V 50Hz, 10WMax |
