Home > Electrical & Electronics > Telecommunication & Broadcasting > Set Top Box > 2016 Hot Selling MINI DVB T2 Set Top Box Digital Tv/ Satellite Receiver

2016 Hot Selling MINI DVB T2 Set Top Box Digital Tv/ Satellite Receiver

2016 Hot Selling MINI DVB T2 Set Top Box Digital Tv/ Satellite Receiver thumbnail-1
2016 Hot Selling MINI DVB T2 Set Top Box Digital Tv/ Satellite Receiver photo-1
US$ 1 - 8.5 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Gecen
Model Number:
HDTR 821
Contact Supplier Request Quote Chat Now
Zhuhai Gecen Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/zhuhai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Gecen
Model Number HDTR 821

 Full HD FTA DVB-T2 satellite receiver / STB EPG USB PVR Digital Satellite tuner



Solution:MSD7802+MSB1236C+R836



Product Picture:

2016 Hot Selling MINI DVB T2 Set Top Box Digital Tv/ Satellite receiver

2016 Hot Selling MINI DVB T2 Set Top Box Digital Tv/ Satellite receiver2016 Hot Selling MINI DVB T2 Set Top Box Digital Tv/ Satellite receiver2016 Hot Selling MINI DVB T2 Set Top Box Digital Tv/ Satellite receiver2016 Hot Selling MINI DVB T2 Set Top Box Digital Tv/ Satellite receiver

2016 Hot Selling MINI DVB T2 Set Top Box Digital Tv/ Satellite receiver2016 Hot Selling MINI DVB T2 Set Top Box Digital Tv/ Satellite receiver2016 Hot Selling MINI DVB T2 Set Top Box Digital Tv/ Satellite receiver2016 Hot Selling MINI DVB T2 Set Top Box Digital Tv/ Satellite receiver2016 Hot Selling MINI DVB T2 Set Top Box Digital Tv/ Satellite receiver





Product Description



Features:

  • Fully compliant with DVB-T2
  • USB2.0 for software update/PVR/media play back
  • Full HD output in 720p,1080i,1080p
  • HDCP protection
  • Time shift supported with external hard drive disc
  • DVB subtitle supported
  • Less than 0.5 Watt in standby
  • Multi-lingual OSD and user-friendly UI
  • Parental Control,Teletext,EPG supported
  • Support movie files with MPEG1/MPEG2/MPEG4/H264/VC-1/MOTION JPEG, so on.
  • Support music files with WMA/MP3/AAC(.wma/.mp3/.m4a)
  • Suport picture with JPEG, BMP, PNG



Specifications



DVB-T2 ANT Input/Demodulation



Connector Type IEC-Female for ANT IN
Input Frequency (UHF)470~866MHz,(VHF)170~230MHz
Bandwidth 6,7,8MHz
Signal Input level -78~ -20dBm
Input Impedance 75Ohm
ANT Power 5V(On/Off), Imax=100mA
Demodulation Scheme QPSK, 16-QAM, 64-QAM, 256-QAM
Demodulation Type OFDM, fully compliant with DVB-T2 Standard

Media Features

Picture JPEG,BMP,PNG

Power Supply

AC Input 100-240VAC@50/60Hz
Power Consumption 10Wmax

Memory

Flash 32Mbit
DDRII Memory 512Mbit

Physical Characteristics

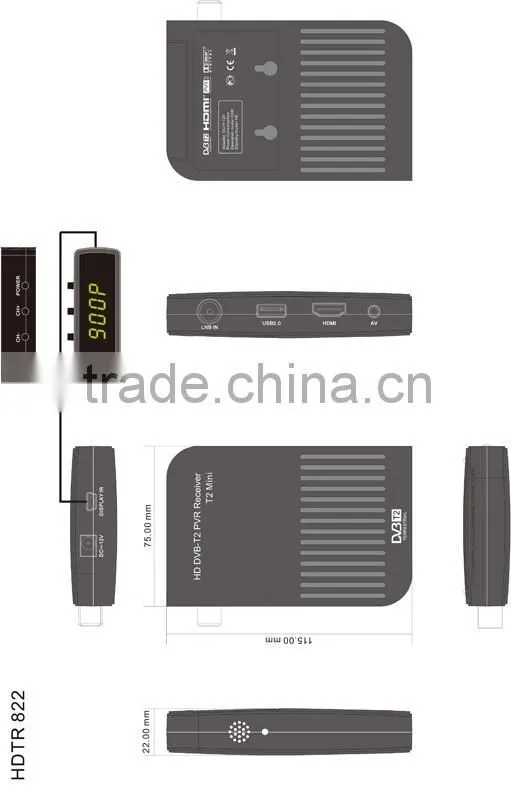

Physical Size 115mm * 75mm * 22mm

Front Panel

Indicator LED Indicator for Power On/Off
Remote Control Input Infra-red receiver

Rear Panel

Connector 1 * IEC connector for ANT IN
1 * HDMI 1.3 Interface, up to 1080p
1 * RCA3(CVBS, L/R)
1 * USB2.0

Remote Specifications

Battery (AAA 1.5V)*2
Operation Distance 8m Min.(front distance from receiver)
Operation Angle Range ±45°(horizontal),±20°(vertical)
