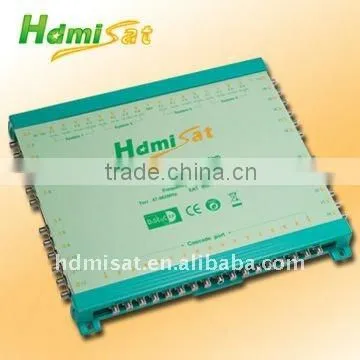

17 in 24 Out Satellite Multiswitch HMS 1724/HMS 171724(Cascade)
Negotiable
MOQ: 40 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hdmisat
Model Number:
HMS 171724
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DiSEQc Satellite Multiswitch 13 in 12 OutNegotiableMOQ: 40 Pieces -
5 in 4 Out Satellite Multiswitch HMS 54/554(Casecade)NegotiableMOQ: 80 Pieces
-
17 in 24 Out DiSEqC2.0 Satellite Multiswitch HMS 1724/HMS 171724(Cascade)NegotiableMOQ: 40 Sets
-
9 in 12 Out DiSEqC2.0 Satellite Multiswitch HMS 912/HMS 9912(Cascade)NegotiableMOQ: 40 Sets
-
Digital HD 5 in 16 DiSEqC 2.0 Satellite MultiswitchNegotiableMOQ: 100 Sets
Place of Origin
Guangdong, China
Brand Name
Hdmisat
Model Number
HMS 171724
Specifications
1. 16 SAT inputs;1 Terr input;24 outputs Satellite multiswitch2. Low loss and high isolation
3. Adaptor fitted DC:18V2.5A
Features:
- Suitable for multi-satellite and multi-user system
- 16 satellite inputs, 1 terrestrial input
- 24 subscriber outputs, cascade and finite multiswitches
- Low cascading loss and high isolation
- Feed from Quattro-LNB or Quad-LNB thru 22 KHz generator
- SAT IF selected by 13/18V, 22 KHz and DiSEqC2.0 commands
- Professional design, exquisite appearance and convenient installation
Specifications:
Model |
HMS 1724 / HMS 171724(Cascade) |
|
Inputs |
SAT |
16 |
Terr |
1 |
|
Subscriber Outputs |
24 |
|
Frequency (MHz) |
SAT |
950-2150 |
Terr |
47-862 |
|
|
Trunk Loss (dB) (Cascade) |
SAT |
9 |
Terr |
6 |
|
Tap Loss (dB) |
SAT |
0dB±2 |
Terr |
3dB±2 |
|
Return Loss (dB) |
SAT |
12 |
Terr |
10 |
|
Isolation (dB) |
LNB-LNB |
35 |
Terr-SAT |
30 |
|
SAT-Terr |
35 |
|
H/V |
30 |
|
Switching Voltage |
15±1V |
|
Switching Commands |
DiSEqC 2.0 |
|
Power Supply |
DC:18V2.0A |
|
Installing a multiswitch

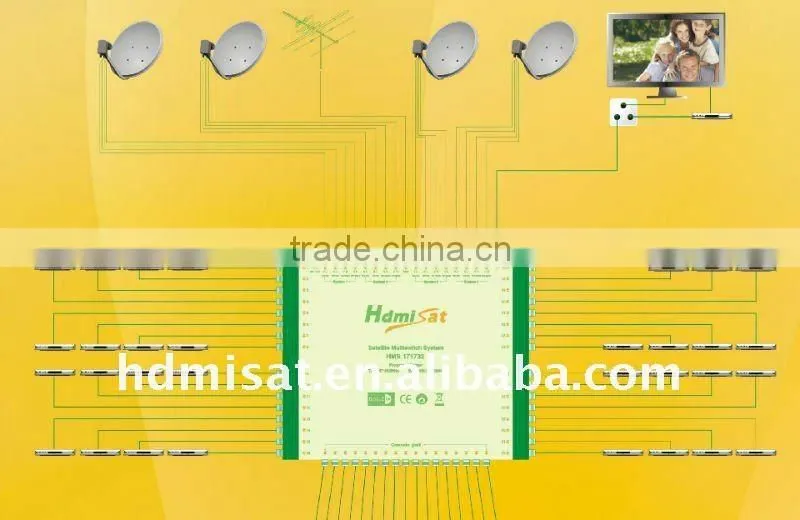

A multiswitch allows you to feed many satellite TV receivers in various rooms with satellite TV signals from a QUATTRO LNB on your dish. In addition, if you wish, you can also feed aerial signals from a UHF TV aerial or, with the addition of a V24-310 triplexer, any or all of UHF TV (analogue and/or digital), FM radio or DAB.
DISH SIZE
In general, it will be found beneficial to use "the next size larger than normal", for two reasons:
- A multiswitch has losses and, although some incorporate signal amplifiers, providing a better signal to begin with will reduce the percentage of "noise" added by the amplifier.
- Most installations that use a multiswitch will use longer cable runs than a "normal" house, resulting in more signal loss.
,
