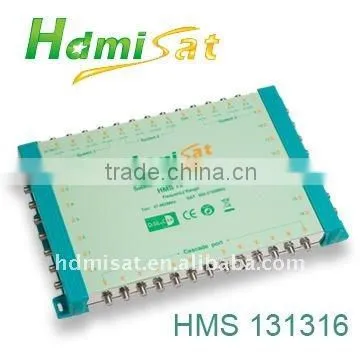

DiSEQc Satellite Multiswitch 13 in 16 out

Specifications

1. Satellite multiswitch 13 input 16 output;
2. Frequency SAT 950-2150,Terr 47-862;
3. Profession component;

Features:  Satellite multiswitch 13 input 16 output



1. Suitable for multi-satellite and multi-user system

2. 12 satellite inputs, 1 terrestrial input

3. 16 subscriber outputs, cascade and finite multiswitches

4. Low cascading loss and high isolation

5. Feed from Quattro-LNB or Quad-LNB thru 22 KHz generator

6. SAT IF selected by 13/18V, 22 KHz and DiSEqC2.0 commands

7. Professional design, exquisite appearance and convenient installation



Specifications:



Model	HMS 1312 / HMS 131312(Cascade)
Inputs	SAT	12
	Terr	1
Subscriber Outputs		16
Frequency (MHz)	SAT	950-2150
	Terr	47-862
Trunk Loss (dB) (Cascade)	SAT	6
	Terr	4
Tap Loss (dB)	SAT	1dB±2
	Terr	5dB±2
Return Loss (dB)	SAT	12
	Terr	10
Isolation (dB)	LNB-LNB	35
	Terr-SAT	30
	SAT-Terr	35
	H/V	30
Switching Voltage		15±1V
Switching Commands		DiSEqC 2.0
Power Supply		DC:18V2.0A
