4 In 6 Output Satellite Multiswitch

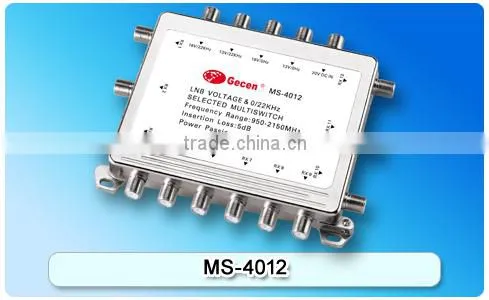

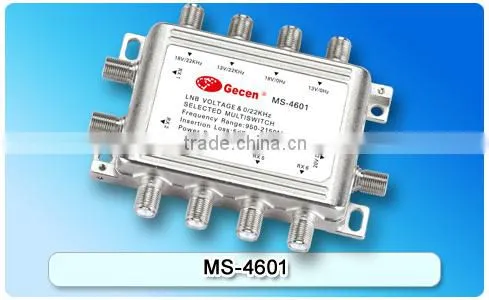

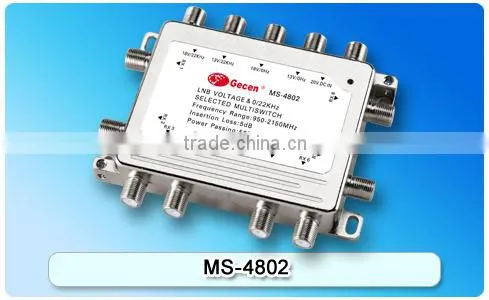

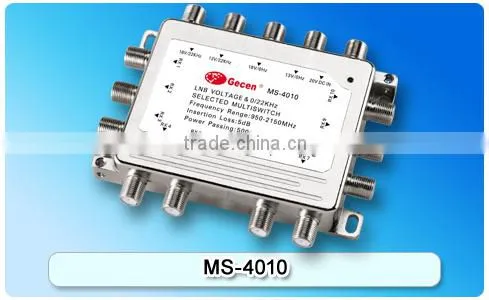

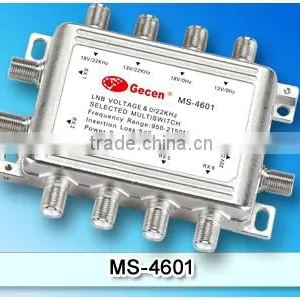

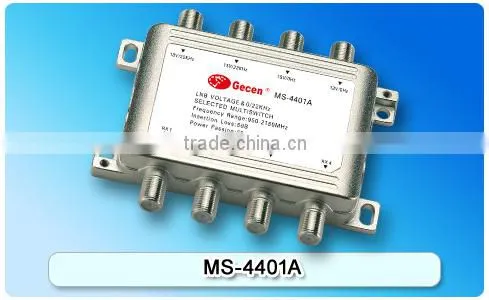

Product Picture:
Detailed Info:
Features:
1. Zinc die-cast housing, nickel-plated
2. Excellent quality component, professional circuit design and low loss
3. 13/18V,0/22KHz supplied by satellite receiver through coaxial cable to switch corresponding port
4. Capable of connecting four SATV signals simultaneously
5. Four SATV signals switched through 13/18V,0/22KHz
6. Distributed into eight subscribers to use simultaneously and no mutual interference
7. Applicable to multi-satellite and multi-receiver usage
8. Power supplied from satellite receiver or external power
Specification
Item |
Specification |
Item |
Specification |
| Frequency Range | 950-2150(MHz) | Output Level |
95(dBuV) |
| Insertion loss | 5(dB) | Normal Working Voltage | 12-20(V) |
| Isolation Between Outputs | 25(dB) | DC Power Consumption | 40(mA) |
| Switching Isolation Input | 28(dB) | DC Max Power Passing | 500(mA) |
| Return Loss Inputs | 12(dB) | Impedance(all ports | 75(Ω) |
| Return Loss Outputs | 8(dB) | Supply Voltage | 20V(±1)1200mA |
Switching Voltage/Signal : 13/18V,0/22KHz
Connectors:“F” type female
You May Also Like:
| Packaging Details: | 100pcs/CTN Giftbox / Neutral box or as per request |
|---|
For Quolity Garantee:We provide 1% spare for after sales.
