Specifications
spray booth ceiling filter media:with glass fiber net & PP non-woven fabric surface
the fiber produce layer by layer
EU5-F5

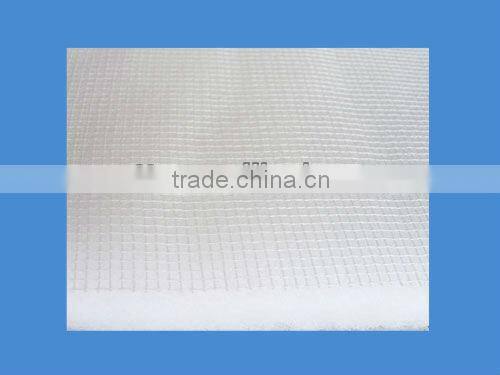

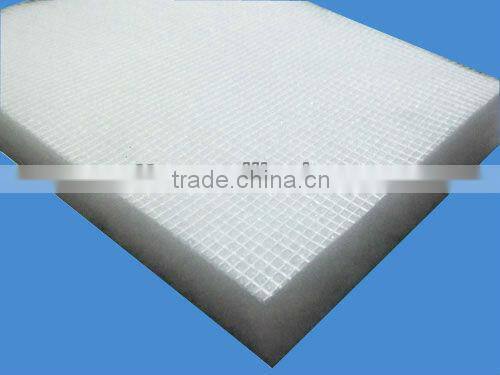

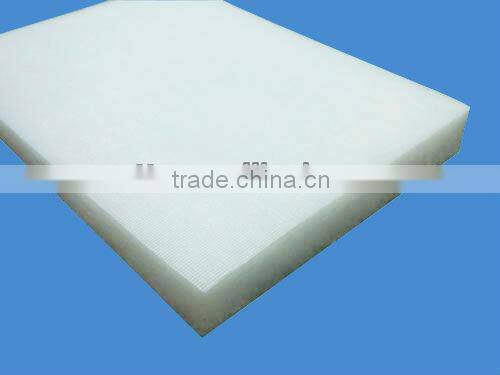

600G spray booth ceiling filter media
This series is the earliest developed product of our company, with net and PP non-woven fabric surface, it has more efficient arrestance and longer use life. This product is widely used in air ventilation systems of auto spray booths, pharmaceutical and all kinds of purifying spaces and also metallurgical industry and higher requirements of air purity and surface painting fields etc.
Solid glue ceiling filter with net,Because of use of the longer and anti-broken synthetic fiber and higher quality water resin, VF series makes the surface smooth and achieves higher air flow rate, so that VF series has more higher absorbility for the tiny particles and assures the space much more clear.
Model | SKT-600G | SKT-560G |
Weight: | 600gr/sqm | 560gr/sqm |
Thickness: | 20mm | 20mm |
Air Flow Rate: | 900m3/h | 936m3/h |
Initial Resistance: | 26pa | 25pa |
Final Resistance: | 400pa | 400pa |
Medium Arrestance: | 96.80% | 95.40% |
Air Velocity: | 0.25m/s | 0.26m/s |
Dust Holding: | 428gr/sqm | 407gr/sqm |
Max Temperature: | 1200C | 1200C |
Filtration Class: | F-5(DIN 24185) | F-5(DIN 24185) |
Flame Resistance: | F-1(DIN 53438) | F-1(DIN 53438) |
