HW SERIES MIXED-FLOW PUMP
Brief introduction
HW mixed-flow pumps are vertical,single stage,single suction,volute pumps of horizontal overhung type.
Small in size,light in weight with good efficiency.HW series water pump are of back-opening constraction.They are convennient in operation and easy in maintenance.
Huge capacity with lower head,suitable for agricultural irrigation and drainage,aquatic products breeding and industrial water supply
Main models and specification
Model |
Capacity(m³/h) |
Head(m) |
Speed(r/min) |
Efficiency(%) |
Equipped power(kw) |
100HW-8S(4”) |
90 |
8 |
2900 |
79 |
3 |
150HW-5S(6”) |
180 |
5 |
1450 |
80 |
4 |
200HW-4S(8”) |
340 |
4 |
1020 |
81 |
5.5 |
200HW-8S(8”) |
360 |
8 |
1450 |
82 |
11 |
250HW-4S(10”) |
450 |
4.2 |
980 |
82 |
7.5 |
250HW-7S(10”) |
450 |
7 |
980 |
83 |
15 |
300HW-4S(12”) |
710 |
4 |
780 |
82.5 |
11 |
300HW-7S(12”) |
780 |
7 |
980 |
84 |
22 |
350HW-8S(14”) |
1000 |
8 |
980 |
85 |
30 |
400HW-7S(16”) |
1260 |
7 |
780 |
86 |
30 |
500HW-6S(20”) |
1980 |
6 |
580 |
86 |
45 |
650HW-4S(26”) |
3660 |
7.6 |
480 |
90 |
100 |
Water pump show

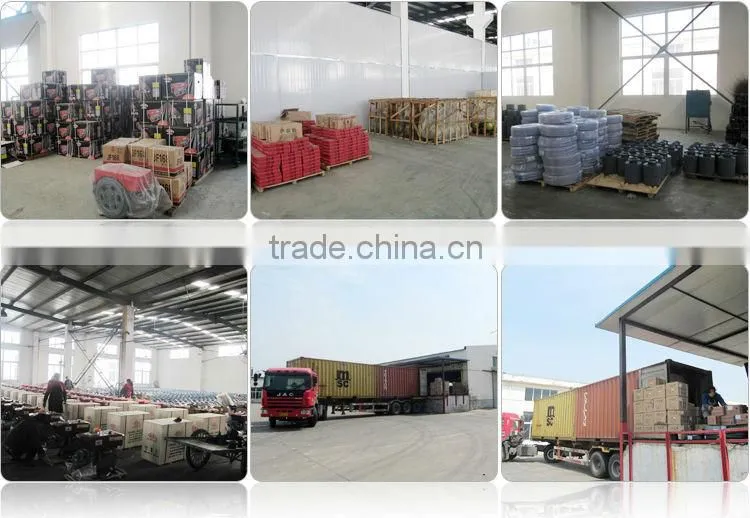

Package and shipping
Package detail

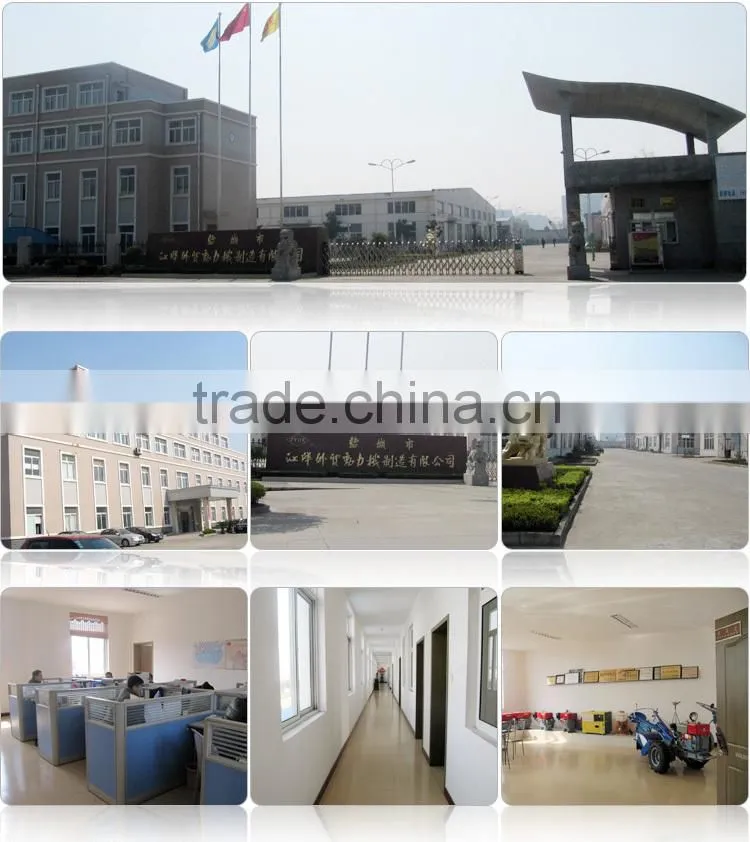

Ofiice
Our factory owns the firstrate inspection equipment,high technology and over 20 years’experience in manufacturing diesel engine from 3hp to 33hp and various kinds of generating set from 0.5kw to 1500kw, We also supply water pump set, sprayers,alternator,gasoline engine,tractors and spare parts related.
Warmly welcome you and your company to operate with us for the prosperity future.

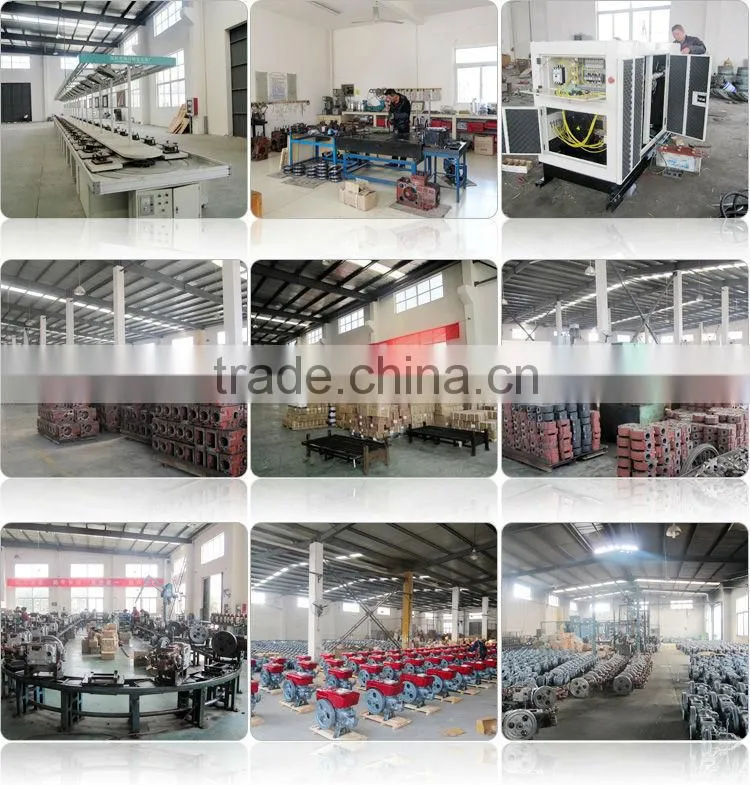

workshop
Certificate
