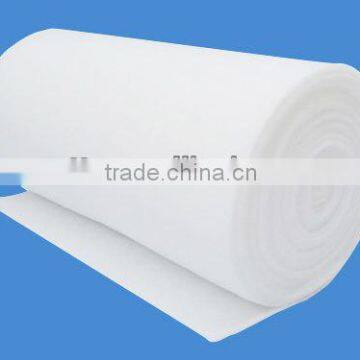

G3 and G4 grade media / Lofted media for pre-filters/ caorse filter media for Pocket filters

Specifications

G3 and G4 grade media /Lofted media for pre-filters/ caorse filter media for Pocket filters : 1. washable 2-3 times.

G3 and G4 grade media /Lofted media for pre-filters/  caorse filter media for Pocket filters :



1. washable 2-3 times,

2. it's strong,no shedding.



This series mainly absorbs the larger particles to prevent the early ceiling filter block, it is made from hardened fiber and is covered with glue for hardening and stabilizing the fiber, the hardness and density are better than the same kinds of products, the primary filtration efficiency and the air flow rate have been increased.



Hardened primary filter(blue & white)

This series is made of prolonged and hardened fiber, it is sprayed with special blue glue. The blue glue is able to show the use life directly, when the blue part being covered with dust totally, the filter must be replaced.



Model	SKT-200G	SKT-150G
Weight:	200gr/sqm	150gr/sqm
Thickness:	15mm	13mm
Air Flow Rate:	1980m3/h	2160m3/h
Initial Resistance:	15pa	15pa
Final Resistance:	200pa	200pa
Medium Arrestance:	77.40%	68.30%
Air Velocity:	0.55m/s	0.60m/s
Dust Holding:	285gr/sqm	254gr/sqm
Max Temperature:	1100C	1100C
Filtration Class:	G3(DIN 24185)	G2(DIN 24185)
Flame Resistance:	F-1(DIN 53438)	F-1(DIN 53438)



Primary filter(white)



AZ series mainly absorbs the larger particles to prevent the early ceiling filter block, it is made from hardened fiber and is covered with glue for hardening and stabilizing the fiber, the hardness and density are better than the same kinds of products, the primary filtration efficiency and the air flow rate have been increased.



Model	AZ-300G	AZ-200G	AZ-150G
Weight:	300gr/sqm	200gr/sqm	150gr/sqm
Thickness:	18mm	15mm	12mm
Air Flow Rate:	1620m3/h	2050m3/h	2160m3/h
Initial Resistance:	16pa	15pa	15pa
Final Resistance:	200pa	200pa	200pa
Medium Arrestance:	82.50%	75.40%	66.40%
Air Velocity:	0.45m/s	0.50m/s	0.60m/s
Dust Holding:	325gr/sqm	269gr/sqm	246gr/sqm
Max Temperature:	1100C	1100C	1100C
Filtration Class:	G4(DIN 24185)	G3(DIN 24185)	G2(DIN 24185)
Flame Resistance:	F-1(DIN 53438)	F-1(DIN 53438)	F-1(DIN 53438)
