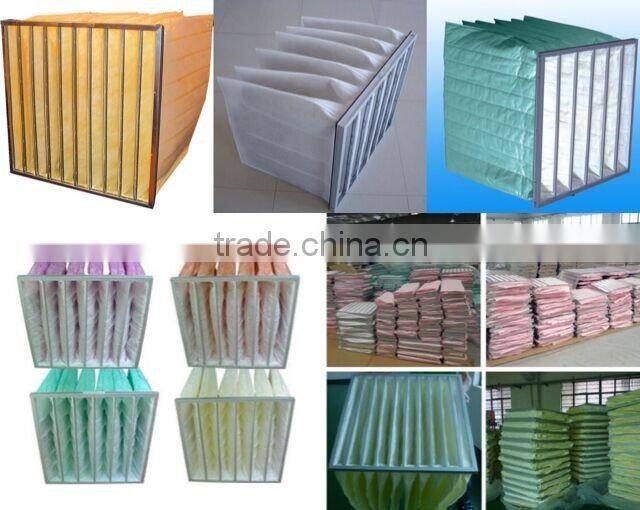

Composite bag filter
·Large dust holding capacity
·High efficiency
·Good air permeability
·Long working life
Specifications:
Type: pocket filter
Frame: Galvanized sheet, Extruded aluminum or Plastic frame
Media: Meltblown PP/Synthetic fiber
EN779 class: F5,F6,F7,F8,F9
Temp. Resistance:100 degree Celsius
Humidity: 100%
Application:
The air pre-filtration system for non-dust room, hospital, pharmaceutical factory, electronics factory, spray booth and other filtration systems which are in high need of clean air.
Parameter:
Efficiency | Dimension W x H x D (mm) | Pockets | Filter area(m2 ) | Air flow(m/s) | Initial pressure drop (Pa) | Final pressure drop (Pa) |
F5/45% | 287 x 592 x 550 | 3 | 1.86 | 1700 | 15 | 350 |
592 x 592 x 550 | 6 | 3.78 | 3400 | 20 | 350 | |
592 x 592 x 600 | 8 | 4.78 | 3600 | 30 | 350 | |
F6/65% | 287 x 592 x 550 | 3 | 2.12 | 1700 | 20 | 400 |
592 x 592 x 550 | 6 | 4.4 | 3400 | 30 | 400 | |
592 x 592 x 600 | 8 | 4.8 | 3600 | 45 | 400 | |
F7/85% | 287 x 592 x 550 | 3 | 2.12 | 1700 | 45 | 400 |
592 x 592 x 550 | 6 | 4.4 | 3400 | 80 | 400 | |
592 x 592 x 600 | 8 | 4.8 | 3600 | 100 | 400 | |
F8/90% | 287 x 592 x 550 | 3 | 2.8 | 1700 | 100 | 400 |
592 x 592 x 550 | 6 | 5.78 | 3400 | 125 | 400 | |
592 x 592 x 600 | 8 | 6.12 | 3600 | 130 | 400 | |
F9/95% | 287 x 592 x 550 | 3 | 2.8 | 1700 | 110 | 450 |
592 x 592 x 550 | 6 | 5.78 | 3400 | 130 | 450 | |
592 x 592 x 600 | 8 | 6.12 | 3600 | 135 | 450 |
Recommended final pressure: 250Pa
Pressure range:±15%
Different sizes and specifications are available.
We take pleasure to introduce ourselves as the leading manufacturer and supplier of a high quality range of Air Filter Media and air filters. The offered product is widely used in the field of dust collection system. Our product of quality appreciated by our clients.
Our advantages:
•OEM available
•Factory direct sale
•Professional service
•Strict quality control
•We have 1~2 QC for each step
•We are supplier of some large supermarkets and famous brands
•No matter the quality or price,we can either give you the best
•Make sure the prompt leadtime
•We have our own raw material factory,carton factory,packing material factory to control every link,and save you the cost from every link
