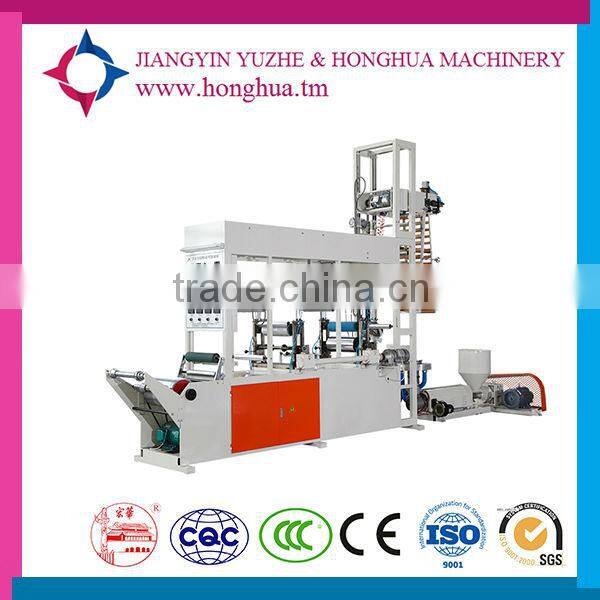

HSY-350FILM BLOWING AND COLOR PRINTING MACHINE
Main performance and Technical parameter

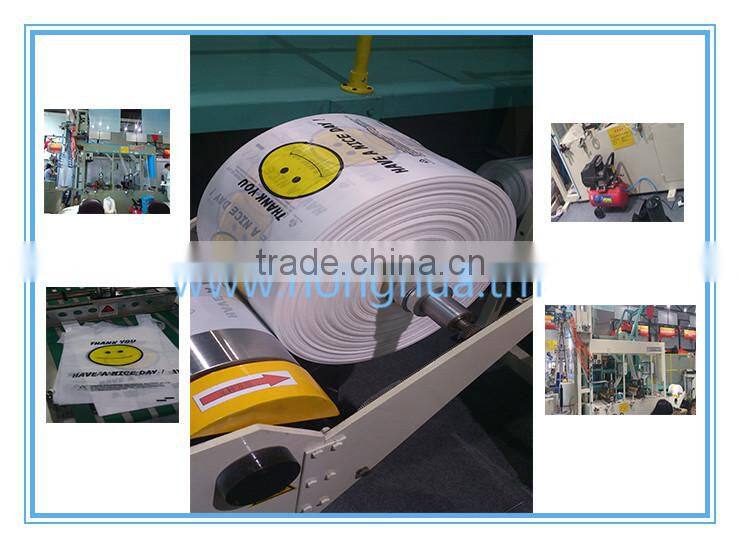

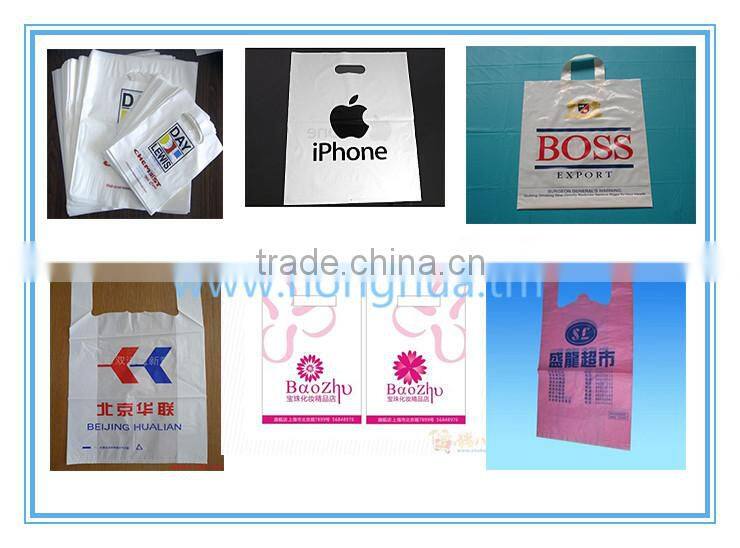

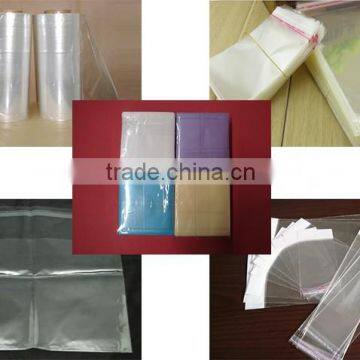

This machine is used for producing soft plastic package bag, it can blow and print at the same time with printing in both sides, the material is HDPE, LDPE, dissoluble plastic and recycle material etc. It is the best machine for shopping bags(vest bag).
Screw diameter |
45mm |
Screw length proportion |
28:1 |
Blowing material |
HDPE, LDPE, LLDPE, biodegradable and reproducible material |
Film blowing and printing width |
100-350mm |
Printing width |
420mm |
Film blowing thickness |
LDPE:0.012-0.08mm,HDPE:0.01-0.03mm |
Pringting speed |
0-40m/min |
Gravure installation size |
length:420mm,Diameter:75-180mm |
Output |
10-35Kg/H |
Total power |
21KW |
Total weight |
2200KG |
Overall size(L*W*L) |
6000*1300*3500mm |
Layer |
Single or double |
Screw diameter |
45mm |
L/D |
28:1 |
Barrel&Screw |
38CrMoAl, surface with Nitride, special mixed segment |
Heater |
Ceramic heater band |
Die head |
45 steel forge piece ,two sets |
Air ring |
2sets |
Blower |
1set |
Gear box |
High strength hardened gear box with long good carrying capacity and long life |

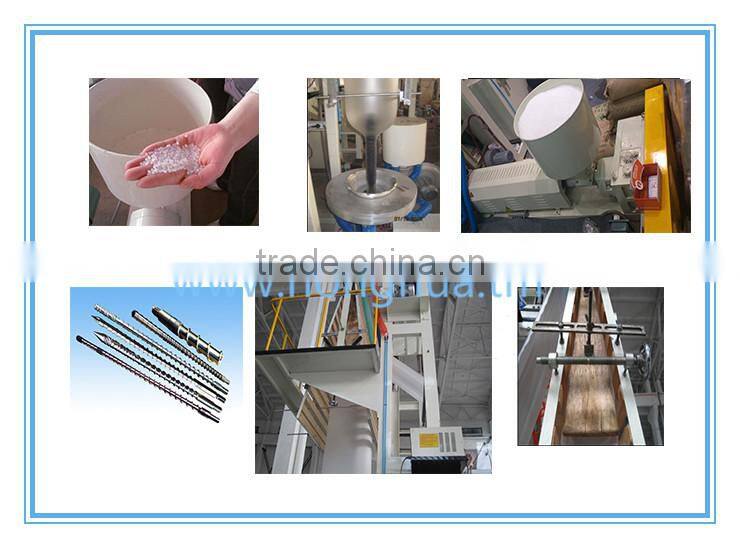

♦ The fused material output from the screw pole extruding out section makes the original swirl material becoming the advection through the filter screen in machine head.
♦ Then, the material comes into the spiral machine head and flows into the die opening, finally, it becomes the cylinder filming tube, extruded out.
Film width |
blow and print:100~350mm |
|
single print width:420mm | ||
Thinkness |
LDPE |
0.012-0.08mm |
HDPE |
0.010-0.03mm |
|
Output |
10-35kg |
|
Printing speed |
0~40m/min |
|
Printing type |
Gravure printing |
|
Printing colors |
Can print on both sides or single sides, 1~6colours |
|
Ink type |
Gravure surface printing ink, mixing with solvent |
|
Dry system |
Infrared lamp heating system with blower |
|
Rewinding type |
Friction type |
Max diameter |
600mm |
tension |
Controlled by inverter motor |
Roller change |
manual |
Jiangyin City Yuzhe International Trading CO.,LTD

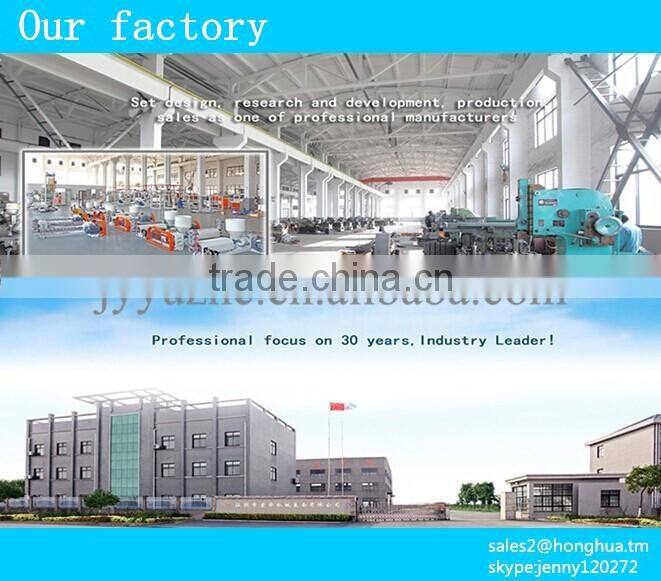

Jiangyin City Yuzhe International Trading CO., LTD., has 30 years of industrial experience. We are the leader of in the production of soft plastic package such as coating machine ,blowing and printing machine and act. we have independent import and export corporation and the factory entitled research , design and production .
Best service! Best quality! Best price!
