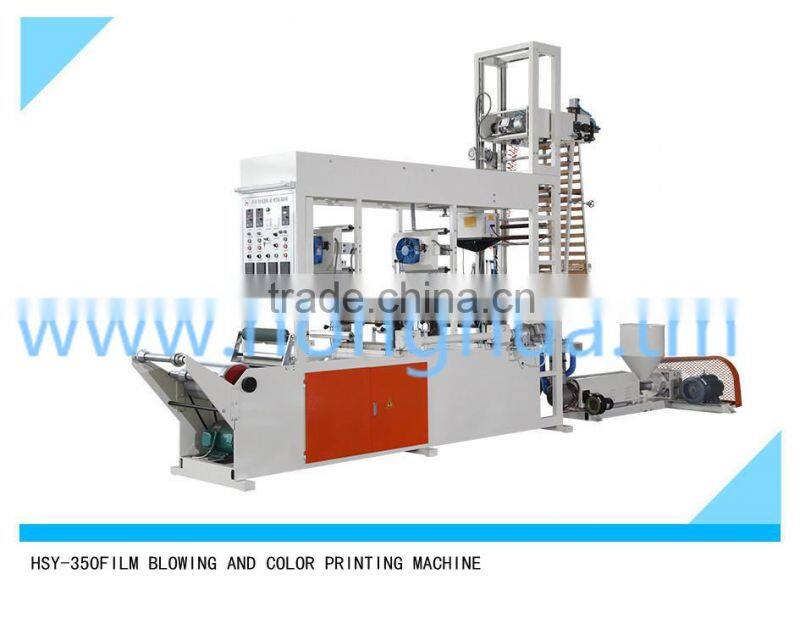

HSY-350 Time Saving Purchasing Bag Two Sides Printing Machine
Main features and performance:
Multi-colors Soft Packing of Plastic Blowing and Printing Line can blow and print at the same time, can blow HDPE, LDPE plastic.
Features:
1.Wide application, several purposes serving (It can blow HDPE and LDPE, blowing and printing at same time or single blowing or single printing)
2.Advanced structure, easy operation, correct chromatography, easy maintenance
3.Raw material saving, reliable quality. It has following characteristics contrasting to traditional wheel print machine
a. Bright color, more fastness
b. Blow and color-print at same time, correct chromatography
c. Easy maintenance, reliable and stable quality
d. Less power consumption, less labor, work time saving, less cost

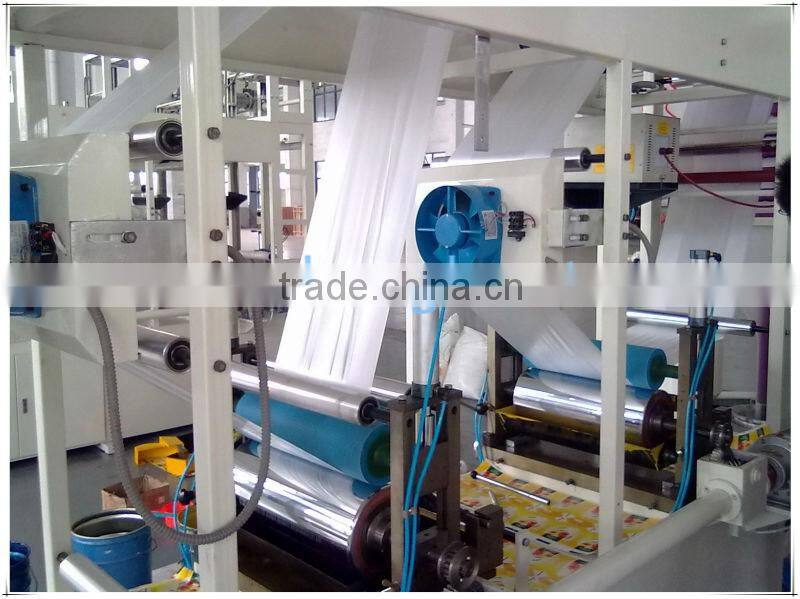

Extrusion & Film Blowing
Main Part |
Features |
Layer |
Single or double |
Screw diameter |
45mm |
L/D |
28:1 |
Barrel&Screw |
38CrMoAl, surface with Nitride,special mixed segment |
Heater |
Ceramic heater band |
Die head |
45 steel forge piece ,two sets |
Air ring |
2sets |
Blower |
1set |
Gear box |
High strength hard teeth retarder with high obturation |

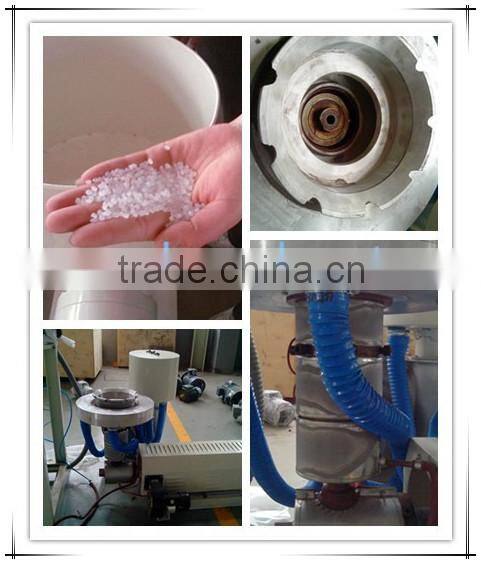

♦ The fused material output from the screw pole extruding out section makes the original swirl material becoming the advection through the filter screen in machine head.
♦ Then, the material comes into the spiral machine head and flows into the die opening, finally, it becomes the cylinder filming tube, extruded out.
Main Part |
Features |
Embossing roller |
1set |
Rewind |
Friction type |
Compressor |
1set |
Take up system |
Down and up freely controlled by motor |
Exdruder motor |
12kw |

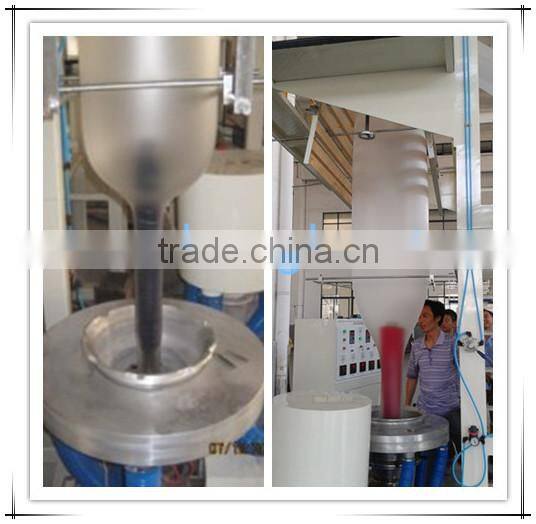

♦ The main processes are the blowing out and the lengthways drafting. Under the certain extruding machine rotating, the instant temperature and the changeless material discharging, the size (width of breadth ) is decided by the ratio of blowing out, which (the times of film’s transversed drafting ) is easily operated under 3 ~ 6 times.
Printing Part
Main Part |
Features |
|
Film width |
blow and print:100~350mm |
|
single print:420mm | ||
Thinkness |
LDPE |
0.012-0.08mm |
HDPE |
0.010-0.03mm |
|
Output |
10-35kg |
|
♦ When printing roll was rolled in the ink channel, the whole cylinder is painted with thicker ink, then you can use the machine scraper, the scraper removes the thicker ink in printing chart.

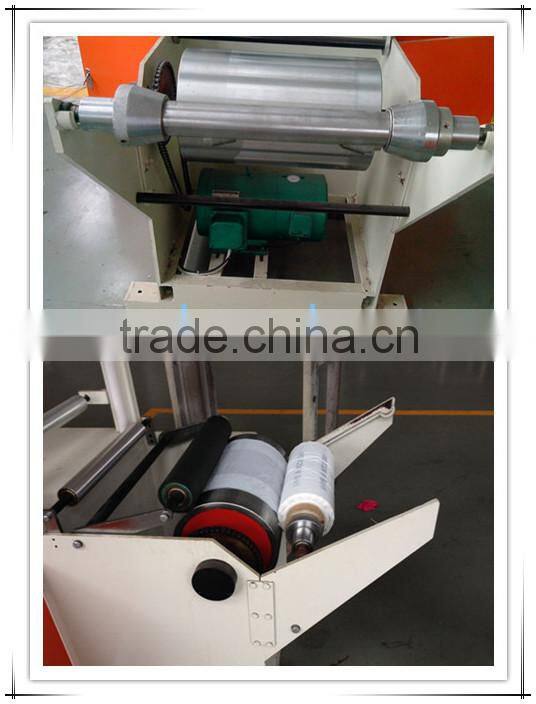

Rewinding Part
♦ Adopt double friction rewinders and cutting device.
♦ The film will be rewinded smoothly.
Loading part
Our factory
♦ Our factory has established more than 30 years, and always make the market requirements as our guider, the scarification of the clients as our rule, the self-innovation as our develop method, the improvement of our competitive power as our target.
♦ Warmly welcome new and old customers from home and abroad to visit our factory, and establish friendly and cooperative business relationship.
Also the friends
♦ We are not only friendly cooperation partners but also the long term friends !
Our honors
♦ Honors have witness splendid history of our factory, such honors are limitless affirmation to the past.
♦ We are fully awares that only by being encouraged by such honors can we keep leading in the future competition.
Our cooperative partners
Jiangyin City Yuzhe International Trading CO.,LTD
Jiangyin City Yuzhe International Trading CO., LTD., has 30 years of industrial experience. We are the leader of in the production of soft plastic package such as coating machine ,blowing and printing machine and act. we have independent import and export corporation and the factory entitled research , design and production .
Best service! Best quality! Best price!
