Home > Manufacturing & Processing Machinery > Plastic Machinery > Blow Molding Machine > HSY-350film Blowing and Printing Machine

HSY-350film Blowing and Printing Machine

HSY-350film Blowing and Printing Machine photo-1
US$ 8,000 - 13,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Film
Plastic Processed PE
Blow Moulding Type Stretch Blow Moulding
Automatic Yes
Place of Origin Jiangsu, China
Brand Name HONGHUA BRAND
Model Number HSY-350
Voltage 3PHASE380V
Power(W) 20KW
Dimension(L*W*H) 6000mmX1300mmX2500mm.
Weight 2200kg
Certification CE;ISO9001
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

it can blow &print at the same time with printing in both sides, the material is HDPE, LDPE, dissoluble plastic and recycle mach

HSY-350FILM BLOWING AND COLOR PRINTING MACHINE

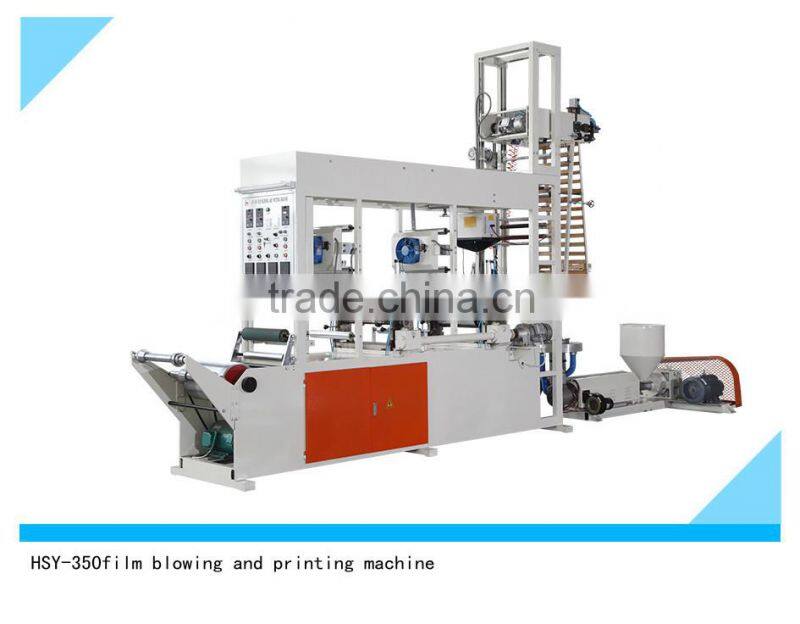

HSY-350film blowing and printing machine

Main feature and performance
This machine is used for producing soft plastic package bag, it can blow and print at the same time with printing in both sides, the material is HDPE, LDPE, dissoluble plastic and recycle material etc. It is the best machine for shopping bags(vest bag).the main features as following:

PART1:film blowing             HSY-350film blowing and printing machine

Screw diameter

45mm

L/D

28:1

Blowing width

100-350mm

Barrel&Screw

38CrMoAl, surface with Nitride,special mixed segment

Heater

Ceramic heater band

Die head

45 steel forge piece ,two sets

Air ring

2sets

Blower

1set

Gear box

High strength hard teeth retarder with high obturation

PART2: color printing

HSY-350film blowing and printing machine

Printing type

Gravure printing

Printing colors

Can print on both sides or single side,1-6colors.

Ink type

gravure surface printing ink,mixing with solvent.

Drying system

 infrared lamp heating system with blower

Printing speed

0-40m/min

PART3:rewinding

HSY-350film blowing and printing machine

Rewinding type

Friction type

Max diameter

600mm

tension

Controlled by inverter motor

Roller change

Manual

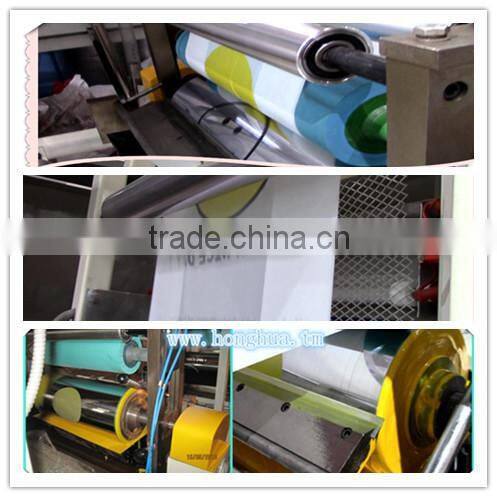

PART4:productions

HSY-350film blowing and printing machine

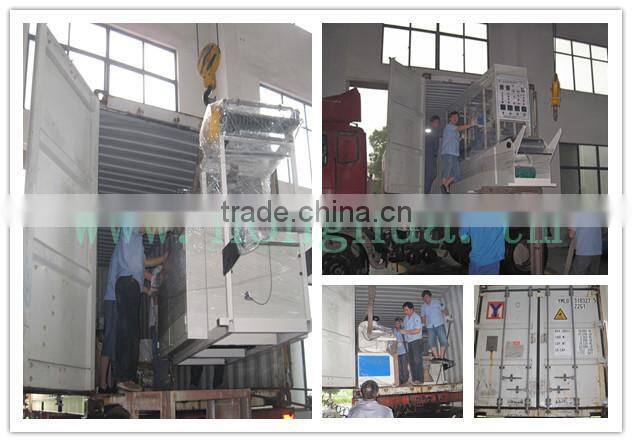

PART4:the loading pics

HSY-350film blowing and printing machine

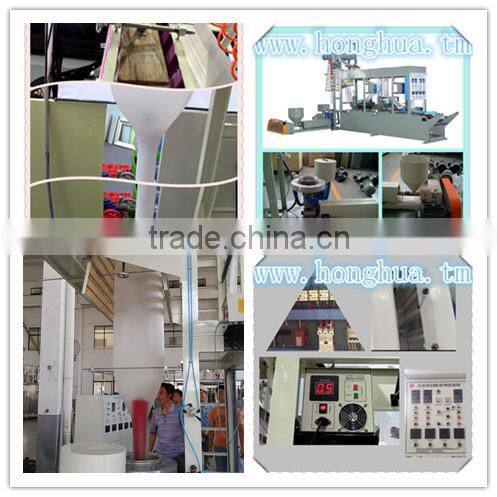

PART 5:factory pics

HSY-350film blowing and printing machine

PART 6:with customers

HSY-350film blowing and printing machine

PART7:certificate         HSY-350film blowing and printing machine

HSY-350film blowing and printing machineJiangyin City Yuzhe International Trading CO.,LTD



Jiangyin City Yuzhe International Trading CO., LTD., has 30 years of industrial experience. We are the leader of in the production of soft plastic package such as coating machine ,blowing and printing machine and act. we have independent import and export corporation and the factory entitled research , design and production .



                     Best service! Best quality! Best price!
