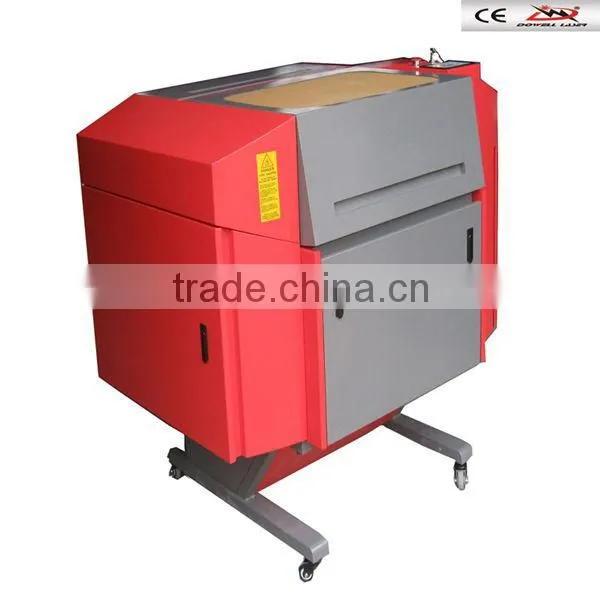

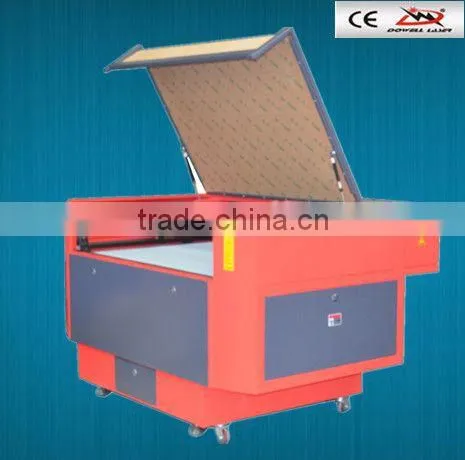

High Cost-effective a3 Laser Cutter

High Cost-effective a3 Laser Cutter thumbnail-1
High Cost-effective a3 Laser Cutter photo-1
US$ 2,000 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Contact Supplier Request Quote Chat Now
Jinan Dowell Photoelectricity Equipment Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Laser Type CO2
Applicable Material Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Cutting Thickness depends on the material
Cutting Area 600*400mm
Cutting Speed 500mm/s
CNC or Not Yes
Cooling Mode Water Cooling
Control Software Leetro 6515 or Leetro 6535 or Ruida
Graphic Format Supported AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Place of Origin Shandong, China
Brand Name DOWELL
Model Number DW6040
Certification CE, ISO, GS, SGS, UL, CCC
After-sales Service Provided Engineers available to service machinery overseas

Specifications

a3 laser cutter
1.CE,FDA,CIQ
2.Leetro 6515 or Leetro 6535
3.Hi-win square guide
4.Reci laser tube

          High cost-effective a3 laser cutter

1.Total introduce of High cost-effective a3 laser cutter

Workingarea :600*400mm(1600*1000mm,1400*1000mm,1300*900mm,1200*900mm,1200*800mm,

900*600mm for option)

Guide:Hiwin square guide from Taiwan

Control system:Leetro 6515 or Leetro 6535 and Ruida

Mirror and Lens:metal refector with high reflectivity

Laser head:Long life-span laser head

Industry chiller:CW-5200.CW-5000,CW-3000,Sunrise



2.Technical Parameter

Technical Parameter

Model

DW-6040

Working area

600*400mm

Laser Generator

Hermetic and 10.6um sealed CO2 laser tube,water-cooling

Laser power

40W,60W,80W,100W for option

Positioning Precision

≤±0.01

Control System

Speedy DSP,support U-disk output directly

Supporting Format

*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*.las,Support AutoCAD,CoreDraw

Engraving Speed

0-1000mm/s

Warranty

One year,except consumable goods

Color

red and grey,blue and white,green and white and other popular color

Running Environment

Temperature:0-45°C,Humidity:5%-95%



3.Five manufacturing process of High cost-effective a3 laser cutter

1.Mechanical system:Cover,Guide rail,Mirror frame and other

2.Optical system:Laser tube,Laser power supply,Three mirrors and one len

3.Transmission system:Three high-precision four equilibrium imported linear guide rail,Belt,Two or three stepper

motor and many gears

4.Control system:High-speed control card,Switching power supply,Motor drive

5.Auxiliary system:circulating industry chiller, Blow gas compressor, Smoke exhaust fan .

4.Standard configuration of High cost-effective a3 laser cutter

1)  Complete machine:Perfect out-look, small dimension, adopt DSP system, could be work in office/store/house,hot sales equipment.

2)  Worktable:Adopt AL blades worktable, platform size 640*430mm, clearance on the platform for sucking smoking.

3)  Control system/Driver:High stability control card & driver, adopt DSP control way, support 3h/ 2h stepper motor,high engraving speed with good quality, support *cdr,*dxf,*ai,*plt,*bmp format files.

4)  Laser tube: Laser power 40w/60w/80w/100w for option, adopt domestic high stability& quality Co2 laser tube, water circle cooling system, guarantee time for 3 month.

5)  Cooling system: Water cooling system, water pump as standard accessory

6)  Exhaust fan: Sucking smoke, power 550w,voltage 220-240v,frequency 50HZ or 60HZ

7)  Air pump: Blow air ,air pipe on the laser head. Avoid burning& keep lens clearly.

5.Optional configurations of High cost-effective a3 laser cutter

1)    Up-down worktable:distance about 360mm, could be controlled by panel.

2)    Honeycomb platform: used for cutting paper/cloth etc soft goods. The size according to the machine workarea.

3)    Rotary attachment: it can engrave cylinders , such as bottles, cups, bamboo etc.

4)    Red dot position: Auto foucse and Red dot position this function used for show the laser beam, easy to see where is the laser dot and working area.

5)    Industrial chiller: the function as same as water pump,but the power is much bigger than it, and could set the temperature range for extending the lifetime of laser tube.CW300,CW5000 for option.



6.Applicable materials and industry

Applicable material:Acrylic,wood planks(light planks,candlenut),bamboo ware,double color sheets,paper,leather,ox horns,resin,animal grease,ABS boards,lampshade,and other non-metal materials.

Applicable industry:Advertisement,decoration,arts and crafts,model industry(construction models,aviation and navigation models and wooden toys),packing,etc.

7.Sample of High cost-effective a3 laser cutter



8. Dowell High cost-effective a3 laser cutter advantage

Software advantage

 1)board as a whole has better resistance to high pressure, the ability of anti-static interference;
2)Single 24V power supply (36V supply, but not recommended), you can save the cost of the machine manufacturers;
3) multi-channel high current IO, can be easily extensions;
4) Support all brands, all capacity U disk, and copy speed is 3 times the previous versions;
5) onboard 256M large capacity non-volatile memory, no longer the bottleneck of the file size limit and so on

      Hardware advantage

 1) chassis as a whole artificial body design, solid structure, ten years protection with no deformation
2) body modular combinations can be divided into the body handling, can be into a 82cm wide room door
3) front and back doors open design, suitable for processing unlimited long Quantity
4) panoramic glass window above the operation safer and more intuitive and so on





9.Our company

As a professional and thriving brand in China CNC field, we have over more than 10
years production history and strong R&D marketing system. DW-CNC is

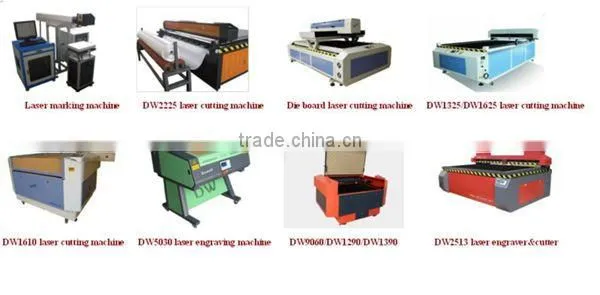

specialized in producing and exporting Engraving Machine, Laser Machine,
Plasma Machine, Cutting Plotter and Marking Machine.



....

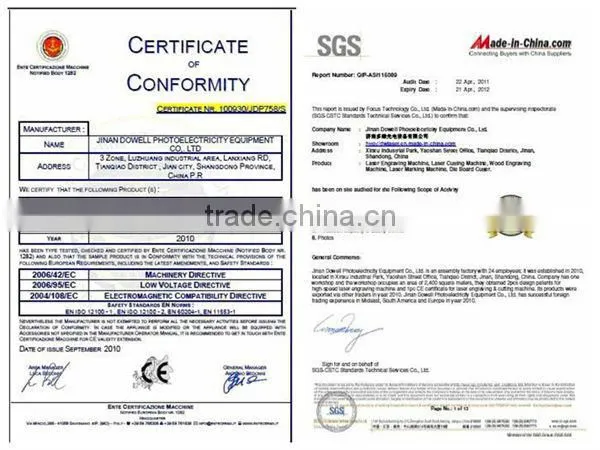

10.Certification

11.Key point

Please kindly tell us your engraving or cutting materials, and materials' size and thickness.

Then we can quickly check and recommend to you the right machine with right working area.

....
