Specifications
standing forklift,TD series;with AC drive motor;
Load capacity:2500kg;
lift height:7200mm
standing forklift ;

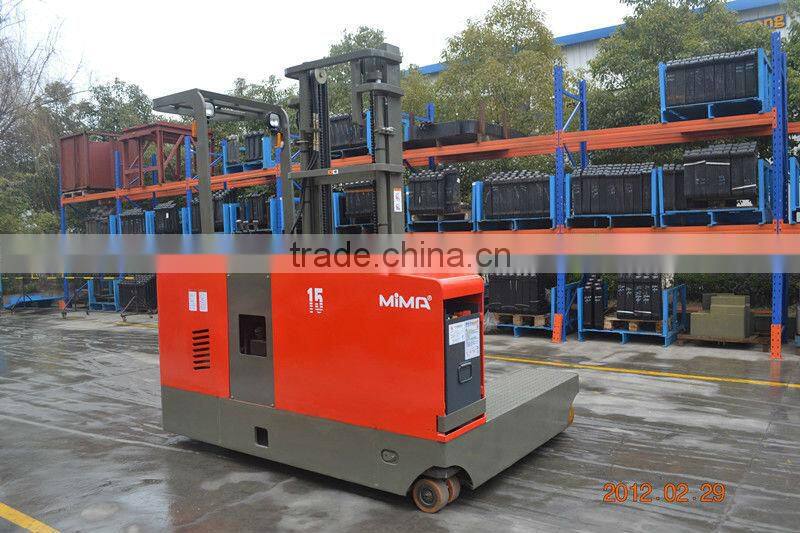

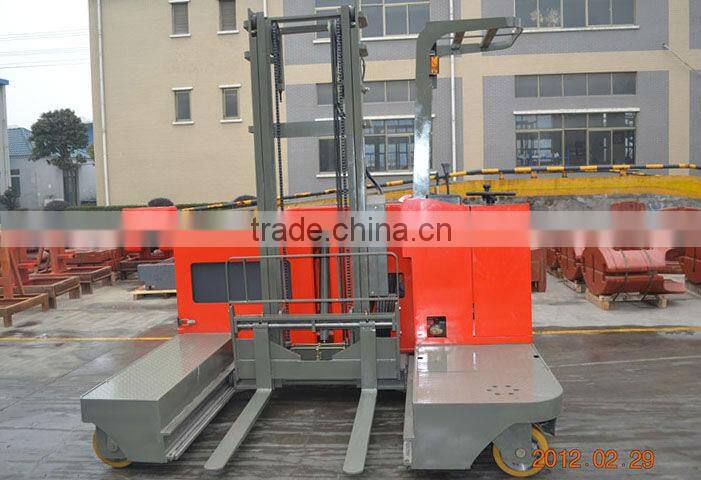

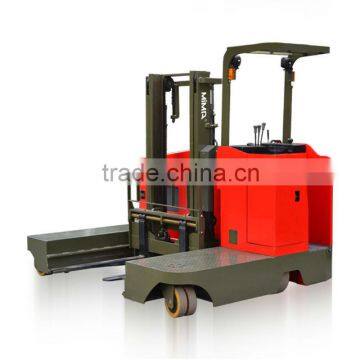

TD Series side loading forklift truck, rated load capacity: 2500kg, lift hieght: 7200mm, used for long material transportation;
1. The lift cylinder with buffering function, to ensure the goods' safety during the lift and down;
2. All electric connector with water-proof and dust-proof design;
3. Better Stability;
4. Side battery loading design, easy to change and maintanin the battery;
5. Use Vertical drive cell to Increase the working life;
6. Ergonomics design and shock absorption configuration, with more comfortable operation;
7. Buffering design for lift cylinder, to imporve the function of mast in lifting and downing,to ensure the safe for products;
8. Electromagnetism braking with Lose-electric type have reliable braking result, it's can easy to make the parking brake safely;
9. Battery with side-pulling function, easy to change and maintenance.
| Description Model No. |
TD15-30 |
TD25-30 |
| Rated Capacity (KG) | 1500 |
2500 |
| Operate Type | Stand-on |
Stand-on |
| Max. Lifting Height (MM) | 3000 |
3000 |
| Min. Turning Radius (MM) | 2422 |
2572 |
| Min. Stacking Aisle-- mm (1000*1000 Pallet) | 2622 |
2772 |
| Max Travel Speed km/h -laden/unladen | 6.0/7.0 |
6.0/7.0 |
| Load center MM | 500 |
500 |
| Fork Dimensions -L/W/T---mm | 850*100*35 |
920*100*45 |
| Lifting Speed (MM/S)-laden/unladen | 120/270 |
120/270 |
| Overall Length (MM) | 2450 |
2580 |
| Overall Width (MM) | 1830 |
2000 |
| Height-Overhead guard--mm | 2250 |
2330 |
| Height---Mast Lowered (MM) | 2104 |
2094 |
| Height-Mast Extended w/ Load-Backrest -mm | 3885 |
3875 |
| Height--Free Lift --mm | 100 |
100 |
| Outrigger Height ---mm | 415 |
415 |
| Tilt Angle---- Upward/Downward--deg. | 3/5 |
3/5 |
| Fork Spread Range (MM) | 247-973 |
247-1072 |
| Reach Stroke | 1050 |
1065 |
| Min Ground Clearance--mm | 84 |
88 |
| Wheel Type | Polyurethane Solid Tyre |
|
| Driving Wheel (MM) | Φ343×108 |
Φ343×120 |
| Balance Wheel (MM) | Φ180×76 |
Φ204×80 |
| Front Wheel (MM) | Φ267×114 |
Φ267×114 |
| Swivel Caster Wheel---mm | Φ267×76 |
Φ267×76 |
| Battery V/AH-Domestic BRAND | 48V /300 AH |
48V/400 AH |
| Service Brake | Electromagnetic |
|
| Parking Brake | Electromagnetic |
|
| Charger-Intelligent | 48V /40 A |
48 V/50 A |
| Driving Motor (KW) | 5.5 (AC) |
5.5(AC) |
| Lifting Motor (KW) | 6.3 |
7.5 |
ISO Certificate;
If you have any requirements or promotion on that,pls don't hesitate to contact with us.
