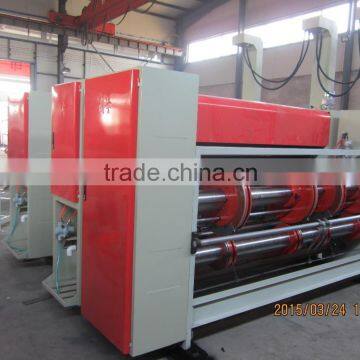

Chain Feeding Small Corrugated Carton Box Printing and Slotting Machinery
- Tianjin
- T/T D/P D/A Credit Card
You May Like
-
Corrugated Carton Box Printing Slotting Die Cutting Machinery
-
Hot Sale Color Box Digital Slotting and Printing Machinery
-
Semi Automatic Carton Flex Printer Slotter Machine
-
Corrugated Carton Ink Printer Slotter Machine
-
Best Sale Carton Box Printing Machine With Slotter and Die Cutter
-
Chain Type Feeder and Multi-color Printer Price
Product Details
| Condition | New | Application | Beverage, Commodity, Food, Other, Textiles, Beverage, Commodity, Food, Machinery & Hardware, Textiles | |
| Packaging Type | Film | Packaging Material | Plastic | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Voltage | as customer's requirment | Power | 8kw | |
| Place of Origin | Hebei, China | Brand Name | XY | |
| Model Number | Production Line | Dimension(L*W*H) | customized | |
| Weight | 20T | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
The machine can be composed of two color, three color, four color, five color printing slotting machine, while a complete printing, slitting, creasing, slotting, corner cutting process, and the aircraft in the absorbing advantages of similar products on the basis of new design, with beautiful appearance novel, compact, high-definition printing, the chromatic error is small, convenient, accurate adjustment, the gear gap-free transmission, and can achieve 360 degree adjustment of the non-stop printing drum electric phase ,slotted parts of the 360 degree adjustment and is equipped with a synchronous spatula. Aircraft lift version of both manual and pneumatic structure, pneumatic structure can be realized pneumatic ink and ink roller and printing plate automatic inking and detachment to improve the operating speed, the aircraft is equipped with a manual phase position and electric phase position, 360degree adjustment phase position, the ink won’t be dry and condensation, improve the life of the net roller and rubber roller. It is ideal and advanced printing equipment in carton industry.
Thchnical parameter:
Wyazs name | 900*1900*2300
| 1470*2700/2900/3100 | 1650*2700/2900 | ||||
Machine inboard width(mm) | 2000 | 2200 | 2700 | 2900 | 3100 | 2700 | 2900 |
Max coverage size (mm) | 900*1850 | 900*2050 | 1470*2550 | 1500*2750 | 1500*2950 | 1650*2550 | 1650*2750 |
Min overage size (mm) | 250*500 | 250*500 | 380*640 | 380*640 | 380*640 | 450*720 | 450*720 |
Max printing size(mm) | 900*1700 | 900*1900 | 1470*2400 | 1470*2600 | 1470*2800 | 1650*2400 | 1650*2600 |
Thickness of printing plate (mm) | 4-9 | 4-9 | 4-9 | ||||
Max speed (p/min) | 60 | 60 | 60 | ||||
Max slotting depth(mm) | 200 | 320 | 400 | ||||
Min slotting (mm)gap | 260*60*260*60 | 280*80*280*80 | 300*100*300*100 | ||||
Power(kw) | 3
| 4 | 5.5 | ||||
Cangzhou XiaoYuan carton machinery co.,ltd, is a corrugated carton machine tradingcompany based in Hebei China, Established in 2015, Who integrates research, sale and service. We can provide you high quality machines for corrugated carton board producing, corrugated box making.Such as: automatic 1-4 colour printing machine, semi automatic printing machine, Rotary slotting machine, Rotary die cutting machine, laminator, single facer machine, BFYthin blade slitter scorer machine, gluing machine, stitching machine, corrugated carton production line and so on.Automatic machines or semi automatic machines. We have stable cooperative factory and senior technicians. Which guarantees we can produce the first class corrugated carton equipments, The professional sales team and aftersale service team can supply the reasonable price and best after-sale service to our new and old customers.
Our company always adhere to the"quality first, credibility first"business philosophy, and from time to time to seize the opportunity, deepen the reform, innovation, the quality of our products to the international road to higher quality, better prices and more comprehensive after-sales service, to reciprocate the trust of old and new friends from all walks of life.
Our Company has full mechanical equipment, high degree of specialization, more manufacturing experience, has strong technical strength, advanced detection methods, complete management system, we are a rising star in carton printing machinery industry, and We will introduce you best suitable machines with our most professional sevices to our good friends.
1. What the advantage of your company? Why choose your machine?
We have specialized in wholesaling carton box making machines for more than two years, We have stable cooperative factory,and senior technicians which guarantees we can offer the first class corrugated carton equipments.
We have best channel of paperboard making machine so we can make sure quality assurance of our products and competitive price. Our factory has professionally produced many kinds of carton box making machinery for more than 10 years, our machines has exported to many countries abroad , We have an experienced production research and development and after-sales service team!
Our company rule is : we insist only produce high quality machine with best price, we never sell low quality machine with lowest price, because high quality machine and customers' satisfaction is the most important foundation of our company development.
2.How about the delivery time?
Normally delivery time will be within 30 days , complicated machine will be sent in 45days more or less.
3.How about the packing of products?
Tighten to container with steel wire rope and welded machine with container by angel iron B. Main corrugated box machines and un-coiler is packed with waterproof plastic) C. PLC contral system and motor pump are packed in wooden box with water proof paper coverage.
4. What is your machine Warranty period?
Our machine has one year guarantee period, during this period, if problems caused by our machine quality, we will change all parts for you by free fee.
5..We do not know how to operate machine,how to deal?
A.we can send our engineer to your site and do the training for your men.
B.You can send your men to our factory. we will teach them how to operate the machine without training charges.
C.Actually there's another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manual first ,and get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.
6. If the machine has some problems,during we using ,How to deal?
One year for the whole machine. Within one year under normal use and maintenance, if something is wrong with the machine, you will get spare part for free.Out of one year , you should get spare parts at cost price. You will also get technical support and service all the lifetime.
