Specifications
cloth cutting plotter1.High precision & efficiency
2.Stable performance
3.CE,FDA
high quality cloth cutting plotter
Description
1. The imported beeline lead rail, imported stepper engine with the lower speed running structure, the engraving is very stable.
2. High intention, high precision mechanic structure design, the data control is stable.
3. Choose high technical laser tube, the beam of light is of high quality and the life is long.
4. Input the American imported focusing lens and mental condensing lens, the cutting strength is high.
5. Co figurate the industrial water cooling system with protection, the continuum work ability is stable.
6. The compatibility of the software is good, which can support the format of PLT, BMP, DXF etc

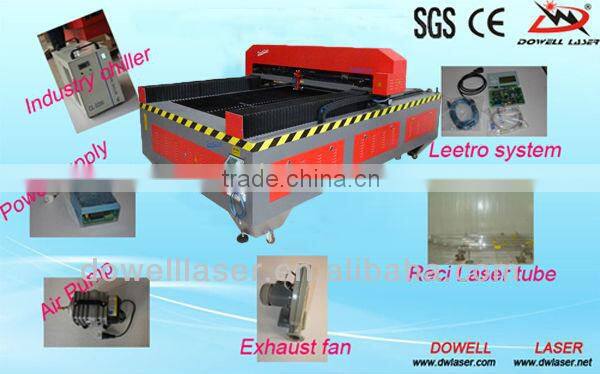

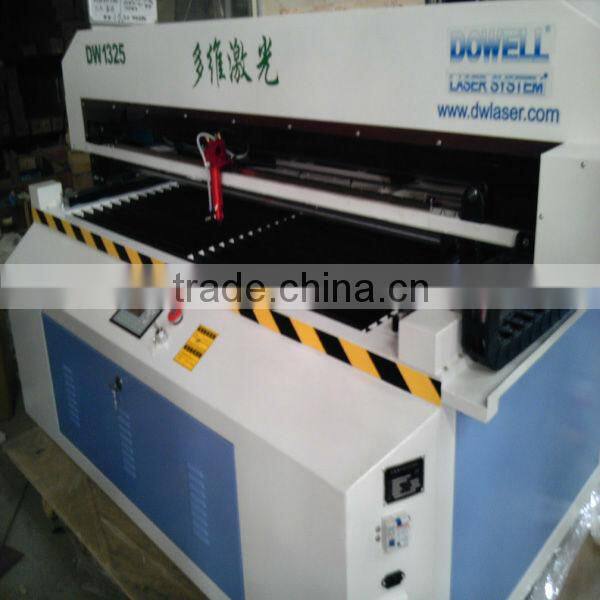

machine pictures
Product Parameters
Laser Cutting Machine DW1325 DW1625 DW1825 | |
Laser-type |
Hermetic and detached CO2 laser tube / RF laser tube |
Laser-power |
60W ,80W ,100w,150w ,180w for option |
Cooling Mode |
Circulating-water-cooling |
Power Adjustment |
0-100% controlling, no segment and adjusting by software |
Machine Control and Drive |
Speedy DSP controlling, stepper motor |
Max Engraving Speed |
1000mm/s |
Max Cutting Speed |
500mm/s |
Repeating Location |
±0.01mm |
Minimum Character |
Chinese character 1.5mm, crisscross-row 1mm |
Max Power |
<1500W |
Up-down Distance of Laser Head |
30mm |
Working Area |
1300*2500mm 1600*2500mm 1800*2500mm |
Machine Dimension |
2790*1430*1300mm |
Machine G.W. |
1000KG |
Working Voltage |
AC220V±10% 50Hz (optional 380V or 110V) |
Working Environment |
Temperature: 0-45, Humidity: 5%-95%, and congeal-water removed |
Controlling Software Language |
English, Simplified Chinese, Traditional Chinese and procuring of multi-languages |
Dictate Format |
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD, CoreDraw direct outputting |
Packaging |
Plywood box |
Machine Color |
Red&grey / blue&white / optional |
Delivery Time |
7 working days |
Payment |
T/T |
Optional Equipment |
Auto-feeding system |
|
Red-light position |
|
Water-cooling unit |
|
Vacuum table |
|
Auto-focus device |
|
|

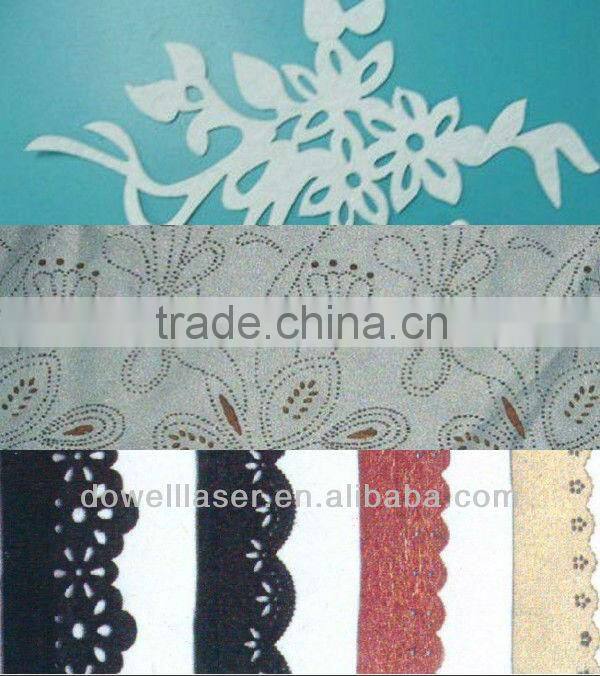

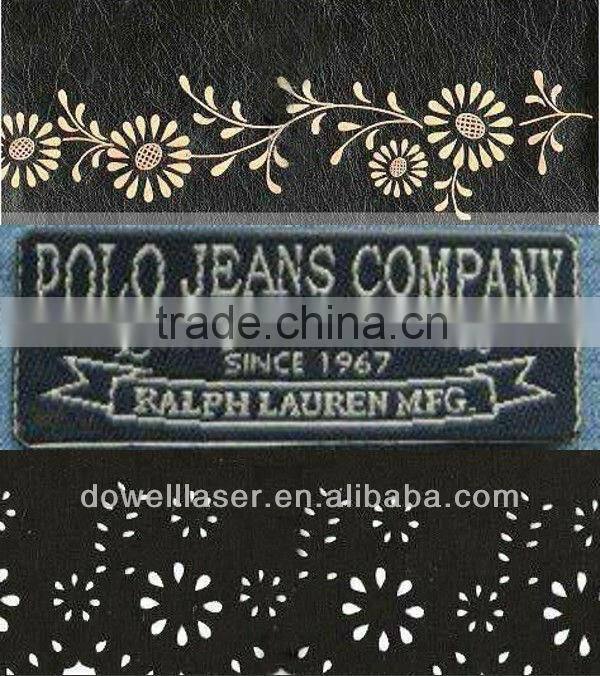

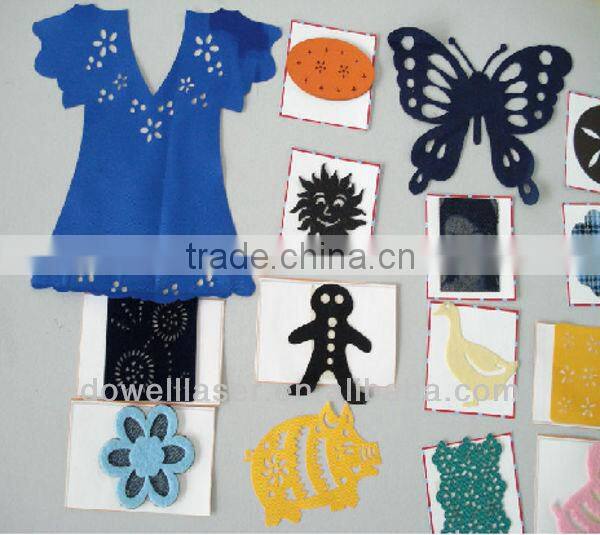

Samples
Applications of DW Series laser machine
Advertisement( marks/ signs/ billboards/plates) bamboo & wood product, art craft work, ornament, paper-cutting, cloth, fabric, hang bag, glove, garment, leather, embroidery, shoemaking, toy, packing & printing, panel, mould, decoration, upholster and other related industries.
Guarantee & Aftersales Service:
Comprehensive guarantee for one year
24-hour technical support by email or calling
We will respond to you within 18 hours.
User-friendly English manual for machine using and maintaining
