2225 auto-feeding laser cutting bed of Dowell

plywood box

Specifications

2225 auto-feeding laser cutting bed
1)Woking Size:2200*2500mm
2)With auto-feeding system

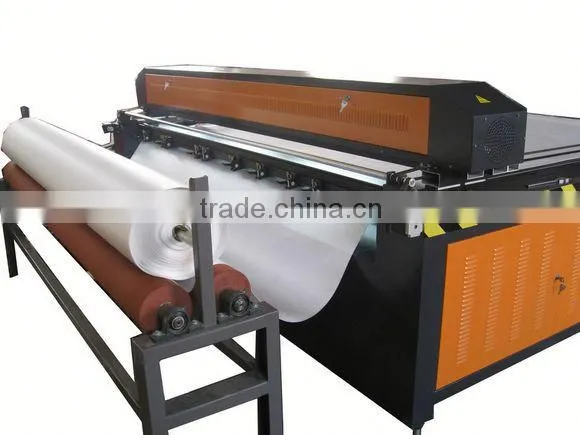

1.Product shows

2.Technical Parameter

Model  DW-2225(DW-1325,DW-1625,DW-1825,DW-1630 for potion)  Working Area  2200*2500mm(1300*2500mm,1600*2500mm,1800*2500mm,1600*3000mm for option)  Working Table  2250*2550mm  Laser Generator  Sealed and detached co2 laser tube  Cooling Mode  Cirticulating water cooling  Power  80W(60W,100W,150W,180W for option)  Consuming Power  2500W  Power Adijusment  0-100% controling,no segment and adjusting by software  Max Cutting Speed  500mm/s  Max Engraving Speed  1200mm/s  Positioning Precision  ≤±0.01mm  Adjusted Up-down Distance  of Laser Head  0-30mm  Control System  Speed DSP(Leetro,Ruida)  Supporting Software  Tajima DGML XI,AutoCAD,CoreDraw  Control software Language  English,Simplified Chinese,Traditional Chinese and procuring of multi-languages  Minimum Shaping Character  Chinese Character:1.5*1.5mm     English Character:1.0*1.0mm  Machine Drive  Stepper Drive or Servo Drive  Working Voltage  AC220V±10% ,50HZ  Interface  LCD Screen,USB interface  Running Environment  Tempreture:0-45°C        Humidity:5%-95%  Optional Fittings  Red Light Locator,Industrial Chiller,Up and down bed,Rotary attachment  Warranty  one year,except the consumable fittings  Technical Support  by calling or email or training

3.Important Fittings Introduction

4.Product Feature

1)Special design for garments & textile industry Standard metal transmission belt,the optional equipment--automatic roller Automatic feeding & place the material system,save time and improve the working efficiency Stable design of laser line,ensure the output laser power at different places to be consistent Servo control system,high speed and efficiency,stable performance. 2)Special design for advertisement,decoration,construction industry The machine have engraving,cutting and scanning function on large scale,which makes one set of machine have many uses The cutting edge is smooth,there is no sawtooth and losses,save cost Stable design of laser line,ensure the output laser power at different places to be consistent,and have the same woking quality Reasonable blowing ventilation system,can meet many requirements of processing 3)Special application for cloth industry Save the cost(labor cost,procurement cost),save fabric /process,achieve paperless cutting Shorten production period,improve production efficiency and quality(no flash,high accuracy),can meet customer's individuial needs To achieve automaticgranding with same proportion and to achieve standardized memory of production date for long time.Can use immediately as soon as good adjustment Adopting the automatic feeding system to achieve tension-free spreading,equipped with the structure of the distribution to ensure thefabric to be fabric,can be sent with no pull phenomenon Photoelectric sensor can control cloth edge to automatically be the same line with another edge and cloth rolling machine to stop automatically.Excellent automatic crawler system without tension Unique control technology with automatic linear and arc cutting speed,ensure the cutting precision to be high

5.Applicable Industries and Samples

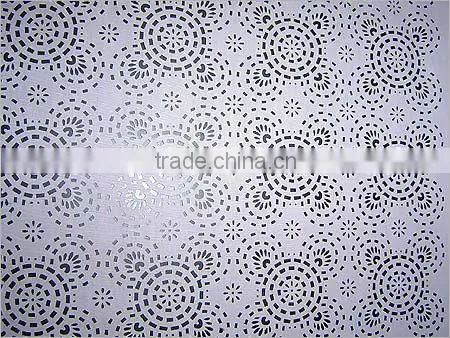

This seriese of machine is suitable to garment,textile leather,advertisement,decoration,art gift,model,toy and other industries.This machine is specialized in cutting and engraving on board,cloth,leather and other non-metal materials. Fabric cutting and engraving

6.Packing Box

Board cutting

7.Authentic Certification



Product Selection Guidelines

       Jinan Dowell can design laser equipment for many industries.Our engineers could provide each costomer with a set of perfect solution.

And we will regard working quality,production efficiency,manufacter  cost and withstand price as referance factors of selecting machine for

you,then choose the most appropriate one or ones for you.

       For confirming what type of machine suitable for you,you have only three questions to answer,so that our engineers select the right

machine for you,then,we quote you the best price.

      1)What kind of material do you want to machine?

        Whether you can use laser machine or not depends on the material type you machine.Certainly,whether exactly choose the laser machine

or not ,also depends on the material type.For example,when the squartz glass is cutted by laser machine,it will break because of long time of heating

from parts.So,only can engrave quickly on the face of squartz glass,can't cut.Besides,the laser machine with 80w laser tube can cut most of materials with high speed.However,,about other materials,like steel plate,thick board,you should choose the laser machine with high  laser tube power.

      2)What size of material do you machine?

      The size of material is the precondition of confirming the size of working table.Treating the biggest size of material as the size of working table,which is reasonable.

      3)How do you machine material?

        Only when we understand how you want to machine material,do we confirm if  you can use laser machine and what kind of machine .

For example,if you want to engrave on wood,the ordinary laser head is OK;If you want to engrave patterns in lint,you should use galvanometer  lase head.



About After-sale Servince



          Because we are direct manufacturer,have special technicians to do after-sale service.Since the day of receiving machine,you can ask the after-sale service and demand the tele number.I f you have some technical question in the process of using machine,our technician will teach you and help you solve problems.Besides technology,you can ask ESQ to communicate when you have other questions,we will offer you 24-hour servince.
