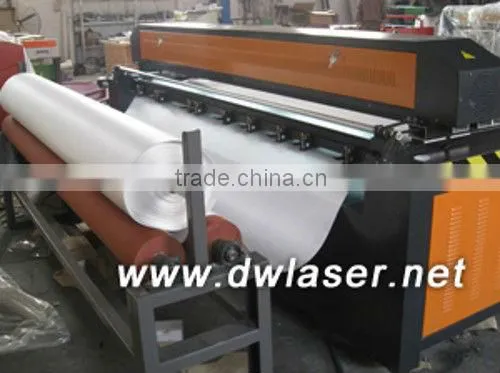

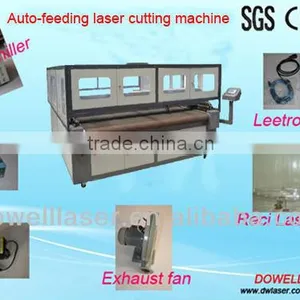

laser cutting machine for carpet
1.Total introduce of laser cutting machine for carpet |
|
Working area :2200*2500mm(86.6″ * 98.4″)(1600*2500mm,1300*2500mm,1600*1600mm and we can also make according to clients demand for option) Guide:Hiwin square guide from Taiwan Control system:Leetro 6515 or Leetro 6535 and Ruida Mirror and Lens:metal refector with high reflectivity Laser head:Long life-span laser head Industry chiller:CW-5200.CW-5000,CW-3000,Sunrise |
| 2.laser cutting machine for carpet technical parameter | ||||||||||||||||||||||||
| ||||||||||||||||||||||||
| 4.Four manufacturing process of laser cutting machine for carpet |
|

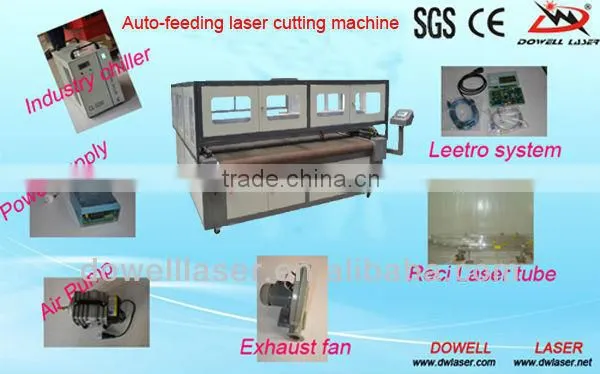

1.Mechanical system:Cover,Guide rail,Mirror frame and other 2.Optical system:Laser tube,Laser power supply,Three mirrors and one len 3.Transmission system:Three high-precision four equilibrium imported linear guide rail,Belt,Two or three stepper motor and many gears 4.Control system:High-speed control card,Switching power supply,Motor drive 5.Auxiliary system:circulating industry chiller, Blow gas compressor, Smoke exhaust fan
|
| 5.Standard configuration of laser cutting machine for carpet |
|
1) Complete machine:Perfect out-look, small dimension, adopt DSP system, could be work in office/store/house,hot sales equipment. 2) Worktable:Adopt AL blades worktable, platform size 1240*840mm, clearance on the platform for sucking smoking. 3) Control system/Driver:High stability control card & driver, adopt DSP control way, support 3h/ 2h stepper motor,high engraving speed with good quality, support *cdr,*dxf,*ai,*plt,*bmp format files. 4) Laser tube: Laser power 60w/80w/120w/150w for option, adopt domestic high stability& quality Co2 laser tube, water circle cooling system, guarantee time for 3 month. 5) Cooling system: Water cooling system, water pump as standard accessory 6) Exhaust fan: Sucking smoke, power 550w,voltage 220-240v,frequency 50HZ or 60HZ 7) Air pump: Blow air ,air pipe on the laser head. Avoid burning& keep lens clearly.
|
| 6.Optional configurations of laser cutting machine for carpet |
|
1) Up-down worktable:distance about 360mm, could be controlled by panel. 2) Honeycomb platform: used for cutting paper/cloth etc soft goods. The size according to the machine workarea. 3) Rotary attachment: it can engrave cylinders , such as bottles, cups, bamboo etc. 4) Red dot position: Auto foucse and Red dot position this function used for show the laser beam, easy to see where is the laser dot and working area. 5) Industrial chiller: the function as same as water pump,but the power is much bigger than it, and could set the temperature range for extending the lifetime of laser tube.CW5000,CW5200 for option. |

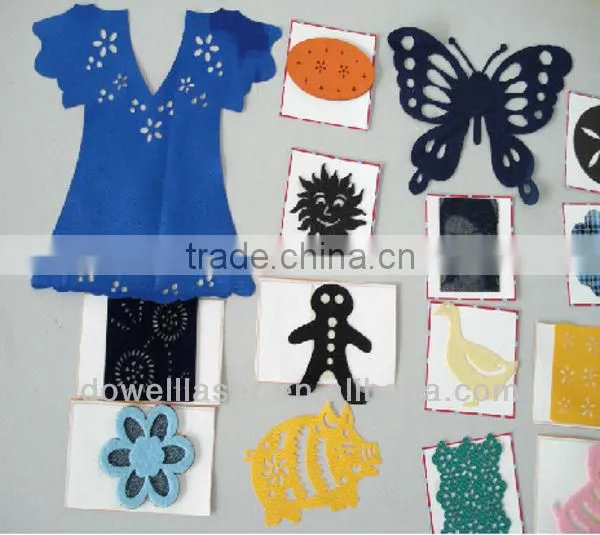

| 7.Cutting sample of laser cutting machine for carpet |
|
|

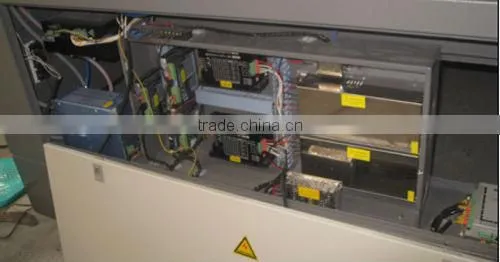

| 8. Dowell laser cutting machine for carpet advantage |
|
Software advantage 1)board as a whole has better resistance to high pressure, the ability of anti-static interference; Hardware advantage 1) chassis as a whole artificial body design, solid structure, ten years protection with no deformation
|
| 9. Package of laser cutting machine for carpet |
|
|

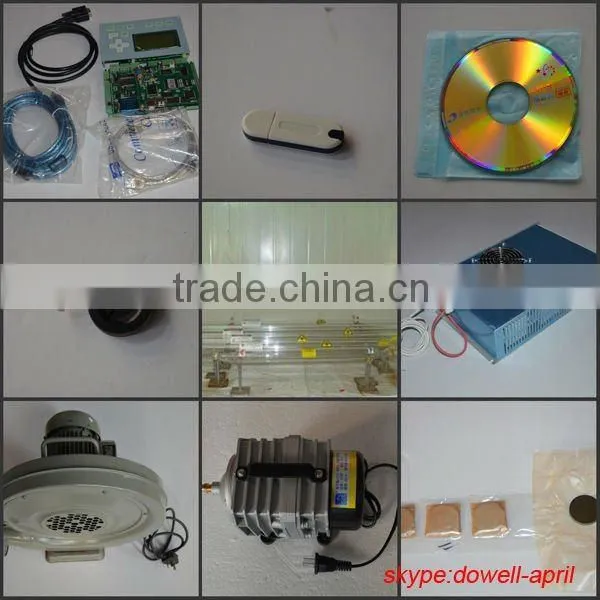

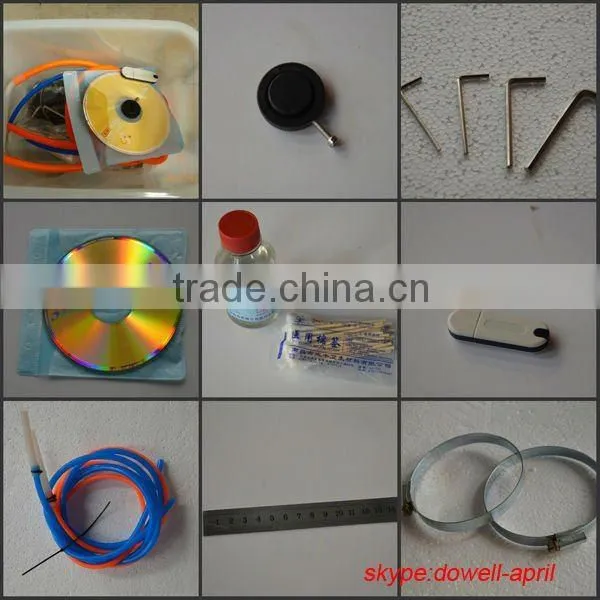

10.Tools box of laser cutting machine for carpet |
|
| 11.How to choose a good laser cutting machine for carpet? |
|
1) Machine quality.If you plan to choose a so cheap machine,maybe the quality is bad.And you have to order another machine after you use it for a period.This situarion will have a bad effect on your producing.So the quality is most important foctors to choose a laser machine. 2) Future more, the after-sales service is very important,too.Good after-sales service represent the image of a company.After you use the machine and find some promblems of the machine, a good after-sale service can solve it effectively and protect the right of customers'. 3) The third is technical support. Because of time diffrent,there is a big problem to comunicate with the sellers. When you need help, maybe it is the sleeping time for your sellers. So effective contact and the good service is also important to you. Other sellers maybe can not do this, but our company can provid 24th service a day. 4) The last is company. A company with good reputation usually can produce good quality machine. As our company, we specialized in CNC laser machine more than 10 years, the professional engineer teams, the advanced equipment and the good after-sale service have earned us good reputation in world market. |
| 12.Certafication |
|
